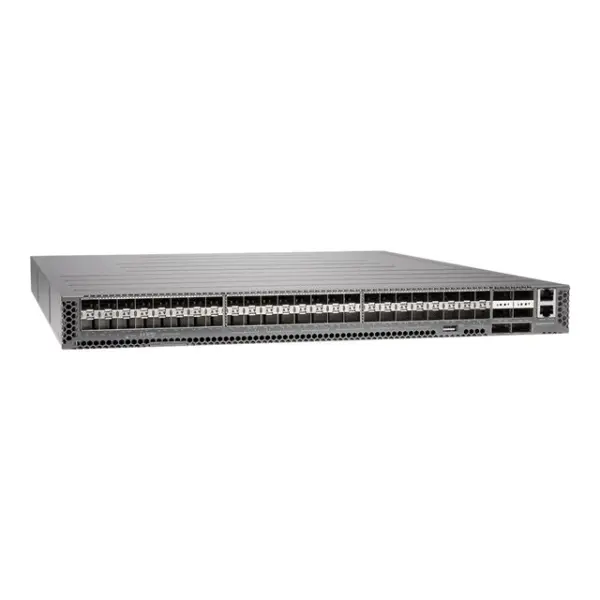

Overview Of QFX5200-48Y-AFO

The QFX5200-48Y-AFO is a high-performance data center switch designed to meet the demanding needs of next-generation networks. It features 48 x 25GbE SFP28 ports and 6 x 100GbE QSFP28 uplink ports, delivering robust data transfer rates and low-latency performance. The QFX5200-48Y-AFO is built for scalability and supports advanced Layer 2 and Layer 3 features, making it ideal for large-scale enterprise environments and cloud deployments. With its compact 1U form factor, this switch provides a powerful yet space-efficient solution, ensuring efficient data center operations with minimal footprint. Additionally, it supports both front-to-back and back-to-front airflow options, making it versatile for various deployment scenarios.

Specification Of QFX5200-48Y-AFO

QFX5200-48Y-AFO Datasheet

Device Type	Switch - 48 ports - managed

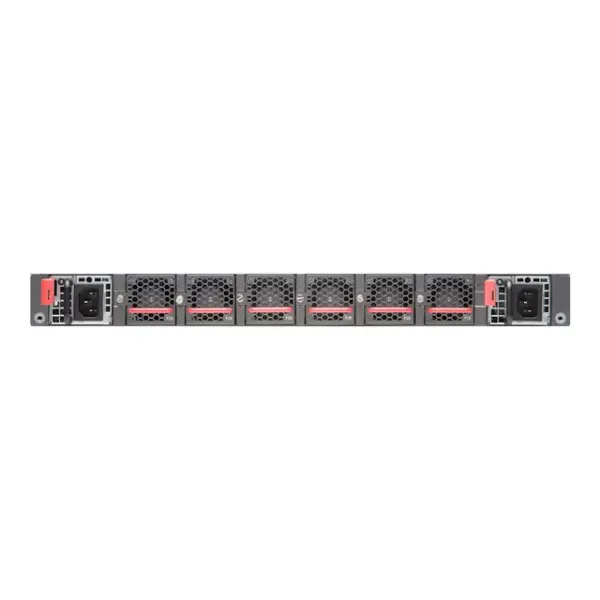

Enclosure Type	Front to back airflow rack-mountable 1U
Subtype	25 Gigabit Ethernet
Ports	48 x 10/25 Gigabit SFP+ / SFP28 + 6 x 40/100 Gigabit QSFP28
Performance	Throughput: 1.8 Tbps ¦ Forwarding capacity: 2.1 Bpps
Capacity	VLAN IDs: 4096 ¦ Link aggregation groups: 128 ¦ Maximum member ports per LAG: 64 ¦ IPv4 routes (Unicast, prefixes): 128000 ¦ IPv4 routes (Unicast, host routes): 104000 ¦ IPv4 routes (Multicast): 52000 ¦ IPv6 routes (Multicast): 28000 ¦ IPv6 routes (Unicast, prefixes): 98000 ¦ IPv6 routes (Unicast, host routes): 52000 ¦ ARP entries: 32000 ¦ GRE tunnels: 1024 ¦ MPLS labels: 16000 ¦ MSTP instances: 64 ¦ VSTP instances: 253 ¦ QoS hardware queues per port: 10
MAC Address Table Size	136K entries
Jumbo Frame Support	9216 bytes
Routing Protocol	OSPF, IS-IS, RIP-1, RIP-2, BGP, IGMPv2, IGMP, VRRP, OSPFv2, PIM-SM, static IP routing, PIM-DM, GRE, OSPFv3, PIM-SSM, MLDv2, MLD
Remote Management Protocol	SNMP 1, SNMP 2, Telnet, SNMP 3, SSH, CLI
Authentication Method	Secure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2)
Features	Firewall protection, ARP support, MPLS support, VLAN support, IGMP snooping, traffic shaping, MAC address filtering, IPv6 support, High Availability, LLQ, WRED, STP support, RSTP support, MSTP support, DCBX support, DHCP snooping, ACL support, QoS, MLD snooping, BFD, URPF, IPv4 support, DHCP relay, RSPAN, DCB, MIB, VSTP, loop prevention, redundant hot swappable fans, CoS, sFlow v5, IGMP proxy, MSDP, GRE, SDWRR, FCoE support, UFD, Storm Control, VTP, LDP, Link Aggregation, IGMP querier, Root Guard, 22MB packet buffer, ZTP, DoS protection, SPAN, ERSPAN, RVI, port-based VLAN, BPDU Guard, Junos XML management protocol
Processor	1 x Intel: 2.3 GHz
RAM	16 GB SDRAM
Built-in Devices	32 GB SSD
Interfaces	1 x management (Gigabit LAN) RJ-45 management ¦ 1 x console RJ-45 management ¦ 1 x USB 2.0 Type A ¦ 48 x 10Gbit LAN SFP+ ¦ 6 x 100Gbit LAN QSFP28
Power Device	Internal power supply - hot-plug
Power Provided	650 Watt
Voltage Required	AC 120/230 V
Power Consumption Operational	430 Watt
Width	17.4 in
Depth	20.3 in
Height	1.7 in
Weight	21.16 lbs
