S26361-F5243-L200
S26361-F5243-L200 - SAS - PCI Express x8 - 12 Gbit/s - 1024...
TRUSTED, TRIED, PROVEN
$5,000,000+
Inventory Delivered By
Officially Accredited
& Verified By
Next-Gen IT
Solutions Powered By

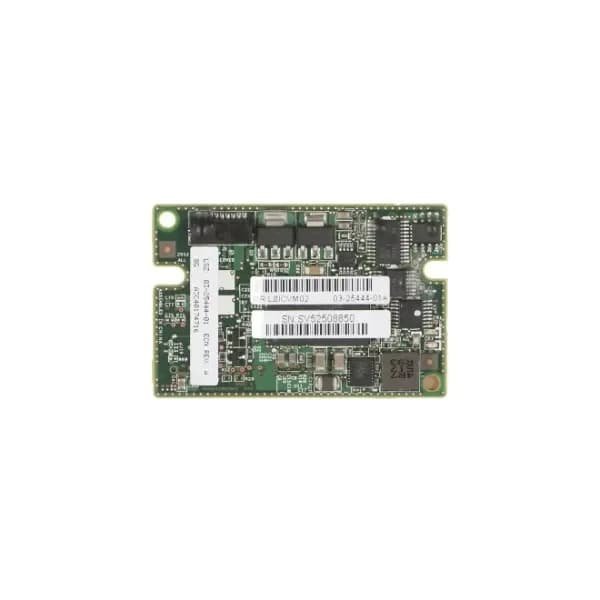

S26361-F5243-L200-S26361-F5243-L200 - SAS - PCI Express x8 - 12 Gbit/s - 1024 MB - LSI SAS3108 - PRAID EP420i/e is a high-performance RAID controller expansion card designed to boost server storage capabilities while delivering reliable SAS connectivity. Built around the proven LSI SAS3108 controller, this card integrates 1024 MB of onboard memory to enhance data caching and fault tolerance for critical business applications.
Engineered with a PCI Express x8 interface, the card efficiently supports 12 Gbit/s data transfers and is ideally suited for storage expansion and server enhancement use cases. Its design is optimized for data-intensive environments where hardware RAID functionality and robust performance are essential, ensuring compatibility with leading operating systems in enterprise settings.
S26361-F5243-L200 price is is available on request. Get immediate quote.
Request bulk order quote for S26361-F5243-L200 for additional pricing. Browse the full Fujitsu Server Expansion Cards series or explore all Fujitsu products.
To get the detailed certification, please go to the Compliance Center.
| S26361-F5243-L200 |  S26361-F5243-L12 |  S26361-F4042-L110 |  S26361-F3948-L504 |  S26361-F4068-L502 | |
|---|---|---|---|---|---|
| Product Type | Expansion Card | Expansion Card | Expansion Card | Expansion Card | Expansion Card |
| Card Type | Storage Controller | Storage Controller | Storage Controller | Network Interface Card | Network Interface Card |
| Interface | PCIe x8 | PCIe x8 | PCIe x4 | PCIe x4 | PCIe x4 |
| PCIe Version | N/A | PCIe 3.0 | PCIe 3.0 | PCIe 3.0 | PCIe 3.0 |
| Chipset / Controller | LSI SAS3108 | LSI SAS3108 | Fujitsu Flash Backup Controller | Intel X520 | Intel X550 |
| Supported Ports | N/A | N/A | N/A | RJ-45 | RJ-45 |
| Port Count | N/A | N/A | N/A | 1 | 1 |
| Max Data Rate | N/A | N/A | N/A | 10Gbps | 10Gbps |
| RAID Levels Supported | RAID 0 / RAID 1 / RAID 5 / RAID 6 / RAID 10 / RAID 50 / RAID 60 / JBOD | N/A | N/A | N/A | N/A |
| Capture Resolution | N/A | N/A | N/A | N/A | N/A |
| Capture Frame Rate | N/A | N/A | N/A | N/A | N/A |
| Low Profile Bracket | No | No | Yes | Yes | No |
| Full Height Bracket | Yes | Yes | Yes | Yes | Yes |
| Cooling | Passive | Passive | Passive | Passive | Passive |
| Operating System Compatibility | Windows / Linux / VMware ESXi / FreeBSD | Windows / Linux / VMware ESXi | Windows / Linux / VMware ESXi | Windows / Linux | Windows / Linux / VMware ESXi |
| Bus Width | 64-bit | 64-bit | 64-bit | 64-bit | 64-bit |
| Power Requirements | 3.3V | 3.3V | 3.3V | 3.3V | 3.3V |
| Use Case | Storage Expansion / Server Expansion | Storage Expansion | Storage Expansion / Server Enhancement | Network Upgrade | Network Upgrade / Server Expansion |
| Product Name | S26361-F5243-L200-S26361-F5243-L200 - SAS - PCI Express x8 - 12 Gbit/s - 1024 MB - LSI SAS3108 - PRAID EP420i/e | S26361-F5243-L12-EP420i - SAS - PCI Express - 12 Gbit/s - LSI SAS3108 | S26361-F4042-L110-Fujitsu Flash Backup Unit Option (S26361-F4042-L110) | S26361-F3948-L504-S26361-F3948-L504 - Internal - Wired - PCI Express - Ethernet - 10000 Mbit/s | S26361-F4068-L502-S26361-F4068-L502 - Internal - Wired - PCI Express - Ethernet - 10000 Mbit/s |
| Height | N/A | 1.5 inches | N/A | 1.2 inches | N/A |
| Width | N/A | 4.0 inches | N/A | 4.4 inches | N/A |
| Depth | N/A | 7.0 inches | N/A | 0.7 inches | N/A |
| Weight | N/A | 1.2 lbs | N/A | 0.5 lbs | N/A |
The PRAID EP420i is a powerhouse. The 1024 MB cache significantly improves our server's I/O performance and reliability.
Exceptional RAID performance. The LSI SAS3108 chip is incredibly stable and handles our high-volume data traffic perfectly.
Elite storage management. This controller provides the professional-grade speed and data integrity required for our primary database servers.
Reliable 12 Gbit/s throughput. The PRAID EP420i is easy to manage and offers outstanding performance for enterprise storage.
Robust and efficient. This controller provides the professional stability and high-speed access our server infrastructure demands daily.
The S26361-F5243-L200 is a Fujitsu PRAID EP420i/e PCI Express x8 SAS RAID controller with LSI SAS3108 chipset, 12 Gbit/s ports and 1024 MB cache for high-performance storage.
It supports SAS-3 protocol at 12 Gbit/s per port, delivering up to 1200 MB/s throughput for demanding workloads.
This controller requires a PCI Express 3.0 x8 slot, offering up to 64 Gbit/s of full-duplex bandwidth.
The PRAID EP420i/e features 1024 MB of DDR3 cache to accelerate read/write operations and optimize RAID performance.
It supports hardware RAID levels 0, 1, 5, 6, 10, 50 and 60 for flexible data protection and performance tuning.
Yes, the EP420i/e is backward-compatible with both SAS and SATA (up to 6 Gbit/s) drives in mixed environments.
It is compatible with Fujitsu PRIMERGY and ETERNUS servers featuring a standard PCIe x8 low-profile slot.
Installation requires Mini-SAS HD (SFF-8644) cables to connect the controller to external drive enclosures.
Supported OS includes Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server and VMware ESXi.
Installation is plug-and-play: insert into a PCIe x8 slot, connect SAS cables, power on and install drivers from the Fujitsu support site.
Yes, firmware upgrades are available on the Fujitsu support portal to ensure optimal performance and compatibility.
The low-profile, half-height card consumes approximately 10 W and fits standard half-length PCIe slots.
Fujitsu offers a standard three-year warranty with optional extensions and 24/7 global technical support.
The EP420i/e doubles the cache to 1024 MB versus 512 MB on EP220i/e and adds more SAS ports for higher throughput.
Yes, its high SAS bandwidth, large cache and advanced RAID features make it ideal for virtualization, databases and HPC.
This controller is available through authorized Fujitsu resellers and e-commerce platforms; pricing varies by region—contact your Fujitsu distributor for a quote.
