Compact chassis suitable for smaller core environments.
WS-C6504-E
Original Stock
Ready to Ship

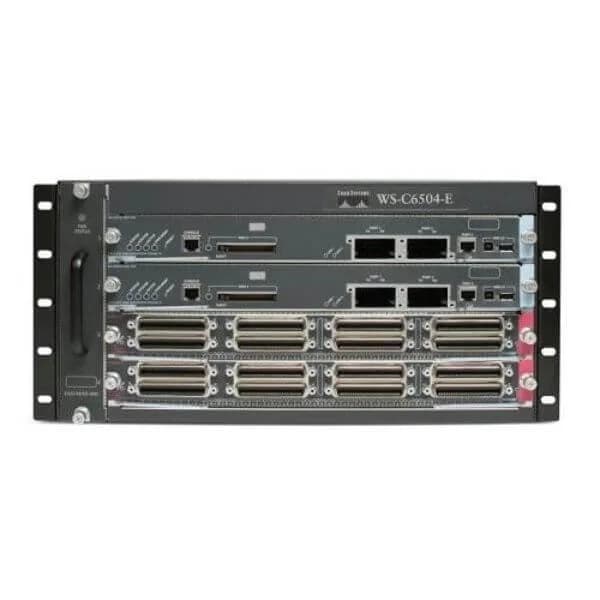

Catalyst 6500 Enhanced 4-slot chassis, 5RU, no PS, no Fan Tr...
FEATURED DEAL
Name:
WS-C6504-E
- Description:
- Catalyst 6500 Enhanced 4-slot chassis, 5RU, no PS, no Fan Tray
- Rating:
Added to cart 28 times recently
- Availability:
In stock - Ready to Ship
- Brand:
- Cisco
- GTIN:
- 582723221592
- Condition:
- Warranty:
- 3
- List Price:
$7,240.00
- Price:
$794.0089% off
Quantity:
1
Business price:
3 Year Extended Warranty
Same-day Shipping
30-Day Money Back Guarantee
Shipping:
Payment:
3 Year Extended Warranty
Same-day Shipping
30-Day Money Back Guarantee
Need Additional Discount on Product?
Request a quote below - Get Exclusive Pricing and Support.
Shipping:
Payment:
TRUSTED, TRIED, PROVEN
Officially Accredited
& Verified By
Next-Gen IT
Solutions Powered By
WS-C6504-E Overview
WS-C6504-E is a high-performance chassis switch engineered with a modular architecture that seamlessly integrates advanced processing and switching capabilities. It features flexible power options including redundant AC power supplies, a variety of port configurations, and a design that supports stacking for enhanced scalability and improved network resilience.
The WS-C6504-E delivers robust performance for mission-critical applications with efficient packet switching and high throughput, making it ideal for enterprise core networks and data center environments. Its flexible design allows for expansion and modular upgrades, addressing diverse use cases from campus networking to high-density data routing without compromising reliability.
WS-C6504-E price is $794.00, a 89% saving from the Cisco list price of $7,240.00. WS-C6504-E is in stock and available for next-day dispatch. (terms applied)
Request bulk order quote for WS-C6504-E for additional pricing. Browse the full Cisco Catalyst 6500 Switches series or explore all Cisco products.
WS-C6504-E Specifications
- Product Type
- Switch
- Power Source
- Redundant Power Supply / AC Power Supply
- Layer Supported
- Layer 2 / Layer 3
- Form Factor
- Chassis
- Power Consumption
- N/A
- Number of Ethernet Ports
- Over 48 Ports
- Number of Downlink Ports
- 48 Ports
- Manageable
- Managed
- Ethernet Technology
- 10/100/1000
- Media Type Supported
- Twisted Pair / Fiber / Combo
- Redundant Power Supply Supported
- Yes
- Manufacturer Part Number
- WS-C6504-E
- Uplink Configuration
- 1G / 10G
- IOS
- IP Services
- POE Support
- Non POE
- SFP Ports
- 4 SFP Ports
- Memory
- 256 MB
- Rack Units
- 1 RU
- Interface Ports
- 10/100/1000
- Port/Expansion Slot Details
- 4 chassis slots for modular expansion
- Flash Memory
- 64 MB
- Switching Capacity
- 128 Gbps
- Switching Capacity with Stacking
- N/A
- Product Name
- Cisco Catalyst 6504-E Switch Engine
- Height
- N/A
- Width
- N/A
- Depth
- N/A
- Weight
- N/A
Quality Certifications
To get the detailed certification, please go to the Compliance Center.
Product Comparison Table
| WS-C6504-E |  WS-C6509-E |  WS-C6504-E-WISM |  WS-C6503E-CSM |  WS-C6504E-S32P-GE | |
|---|---|---|---|---|---|
| Depth | N/A | 22 inches | N/A | N/A | 18 inches |
| Ethernet Technology | 10/100/1000 | 10/100/1000 | 10/100/1000 | 10/100/1000 | 10/100/1000 |
| Flash Memory | 64 MB | 256 MB | 64 MB | 64 MB | 256 MB |
| Form Factor | Chassis | Chassis | Chassis | Chassis | Chassis |
| Height | N/A | 8.6 inches | N/A | N/A | 1.75 inches |
| IOS | IP Services | IP Services | IP Services | IP Services | IP Services |
| Interface Ports | 10/100/1000 | 10/100/1000 | 10/100/1000 | 10/100 | 10/100/1000 |
| Layer Supported | Layer 2 / Layer 3 | Layer 2 / Layer 3 | Layer 2 / Layer 3 | Layer 2 / Layer 3 | Layer 2 / Layer 3 |
| Manageable | Managed | Managed | Managed | Managed | Managed |
| Manufacturer Part Number | WS-C6504-E | WS-C6509-E | WS-C6504-E-WISM | WS-C6503E-CSM | WS-C6504E-S32P-GE |
| Media Type Supported | Twisted Pair / Fiber / Combo | Twisted Pair / Fiber / Combo | Combo | Twisted Pair / Fiber / Combo | Combo |
| Memory | 256 MB | 256 MB | 256 MB | 256 MB | 256 MB |
| Number of Downlink Ports | 48 Ports | 48 Ports | N/A | N/A | 32 Ports |
| Number of Ethernet Ports | Over 48 Ports | Over 48 Ports | N/A | N/A | 24–48 Ports |
| POE Support | Non POE | Non POE | Non POE | Non POE | POE |
| Port/Expansion Slot Details | 4 chassis slots for modular expansion | 8 Line Card Slots, 2 Supervisor Slots | 4-slot chassis with modular expansion options | Supports multiple expansion modules in a Catalyst 6500 chassis configuration. | 4-slot chassis with 32 integrated PoE Gigabit Ethernet ports and 4 SFP uplink ports |
| Power Consumption | N/A | N/A | N/A | N/A | N/A |
| Power Source | Redundant Power Supply / AC Power Supply | Redundant Power Supply | Redundant Power Supply / AC Power Supply | Redundant Power Supply / AC Power Supply | Redundant Power Supply / AC Power Supply / N/A |
| Product Name | Cisco Catalyst 6504-E Switch Engine | Cisco Catalyst 6509-E Enterprise Services Switch | Cisco WS-C6504-E Wireless Integrated Services Module | Cisco Catalyst 6503E-CSM Chassis Switch Module | Cisco Catalyst 6504E 32-port PoE Gigabit Ethernet Switch |
| Product Type | Switch | Switch | Switch | Switch | Switch |
| Rack Units | 1 RU | 4 RU | 4 RU | N/A | 1 RU |
| Redundant Power Supply Supported | Yes | Yes | Yes | Yes | Yes |
| SFP Ports | 4 SFP Ports | Combo | Combo | N/A | 4 SFP Ports |
| Switching Capacity | 128 Gbps | 104 Gbps | N/A | N/A | 176 Gbps |
| Switching Capacity with Stacking | N/A | N/A | N/A | N/A | N/A |
| Uplink Configuration | 1G / 10G | 10G | 1G | 1G | 1G |
| Weight | N/A | 77 lbs | N/A | N/A | 25 lbs |
| Width | N/A | 17.4 inches | 19 inches | N/A | 17.5 inches |
Reviews & Ratings
S
Saad Mahmood
5
Easy to deploy and maintain.
L
Lukas Brandner
5
Reliable platform for modular switching.
B
Bilal Ashraf
4
Good airflow and build quality.
K
Kevin Doyle
4
Solid Cisco chassis option.
Questions & Answers
What is the Cisco Catalyst WS-C6504-E chassis?
The Cisco Catalyst WS-C6504-E is a 4-slot, 5RU Enhanced chassis (SKU: WS-C6504-E) offering up to 720 Gbps of crossbar switching capacity for high-performance campus and data-center deployments.
What slots and module types does the WS-C6504-E support?
The WS-C6504-E provides four universal module slots that accept any combination of Catalyst 6500 Enhanced Supervisor Engines and line cards, including Gigabit Ethernet, 10 GbE and service modules.
Does the WS-C6504-E include power supplies and fan trays?
No, the WS-C6504-E ships without power supplies or fan trays to enable flexible power and cooling options; you must order compatible PWR-C6K-AC power supplies and CAT6500-FAN trays separately.
Which Supervisor Engine models are compatible with the Catalyst 6500 Enhanced chassis?
The WS-C6504-E supports Supervisor Engine II+, Supervisor Engine 32/32-XL, Supervisor Engine 720, Supervisor Engine 2T and Supervisor Engine 6-Plus, providing advanced routing and security features.
What line cards can I install in the Catalyst WS-C6504-E?
You can install any Cisco Catalyst 6500 Enhanced line cards, including Gigabit Ethernet (e.g., WS-X6748-GE-TX), 10 Gigabit Ethernet (e.g., WS-X6708-10G), service modules and network modules.
What software images are supported on the WS-C6504-E chassis?
The WS-C6504-E runs Cisco IOS Software or Cisco IOS XE via the installed Supervisor Engine, supporting enterprise features such as MPLS, QoS, IPv6 and advanced security.
What is the forwarding capacity of the Catalyst WS-C6504-E?
With a full complement of Supervisor Engines and line cards, the WS-C6504-E delivers up to 432 Mpps (million packets per second) forwarding performance across its 720 Gbps fabric.
How do I achieve power and fan redundancy on the WS-C6504-E?
Install at least two compatible PWR-C6K-AC power supplies and two CAT6500-FAN trays in an N+1 configuration to ensure continuous operation during a module or fan failure.
Can the WS-C6504-E be rack-mounted in a standard 19" enclosure?
Yes, the WS-C6504-E is designed for standard 19-inch racks and occupies 5RU of rack space, with included rack-mount brackets and hardware.
What are the physical dimensions and weight of the WS-C6504-E chassis?
The WS-C6504-E measures 8.7" H x 17.5" W x 24.0" D (5RU) and weighs approximately 45 lbs (20.4 kg) without power supplies or fan trays installed.
What operating temperature range does the Catalyst WS-C6504-E support?
The WS-C6504-E operates reliably in environments from 0 °C to 45 °C (32 °F to 113 °F) with relative humidity between 10% and 85% non-condensing.
Which accessories are required for initial installation of the WS-C6504-E?
In addition to power supplies and fan trays, you’ll need a rack-mount kit (included), Ethernet and console cables, grounding straps and the Cisco IOS image on USB or TFTP server.
What port densities can I achieve with the Catalyst 6500 Enhanced chassis?
Port density depends on installed line cards—up to 48 GbE ports per slot with WS-X6748-GE-TX or up to 8 10 GbE ports per slot with WS-X6708-10G modules.
How do I update or upgrade the IOS on the WS-C6504-E?
Use the Supervisor Engine’s ROMMON mode to load a new Cisco IOS or IOS XE image via USB, TFTP or FTP, then reboot the chassis to apply the update.
What warranty and support options are available for the WS-C6504-E?
The WS-C6504-E includes a limited lifetime hardware warranty; Cisco SMARTnet service contracts are recommended for 24×7 technical support and rapid hardware replacement.
What are the key differences between WS-C6504-E and WS-C6506-E chassis?
The WS-C6504-E offers four universal slots and 5RU height, while the WS-C6506-E provides six slots in a 7RU form factor, delivering higher slot density and fabric capacity.
