What data rates are supported by this XFP module?

It supports 10.3125 Gb/s for 10GBASE-ZR Ethernet and 9.95328 Gb/s for OC192 LR2 SONET/SDH.

Which interface standard does the XFP-10GZR-OC192LR comply with?

It is fully compliant with the XFP MSA (Multi-Source Agreement) standard.

Does the XFP-10GZR-OC192LR support Digital Optical Monitoring (DOM)?

Yes, it includes DOM functions for real-time monitoring of optical power, temperature, and voltage.

What is the power consumption of the XFP-10GZR-OC192LR?

Typical power consumption is less than 3.5 W, meeting XFP MSA power-budget specifications.

What connector type is used on the XFP-10GZR-OC192LR?

It uses a standard LC duplex connector for easy integration with SMF cabling.

What operating temperature range does this module support?

The commercial version operates from 0 °C to 70 °C; an industrial variant covers –40 °C to 85 °C.

Is the XFP-10GZR-OC192LR RoHS and Telcordia compliant?

Yes, it is RoHS-compliant and meets Telcordia GR-468 reliability standards.

What platforms are compatible with the XFP-10GZR-OC192LR?

It interoperates with major OEM routers, switches, and optical transport equipment supporting XFP.

How do I install the XFP-10GZR-OC192LR module?

Simply slide the module into an XFP port until it latches, then attach LC fiber; no shutdown is required.

What is the difference between 10GBASE-ZR and OC192 LR2?

10GBASE-ZR is a 10 GbE standard for Ethernet links up to 80 km, while OC192 LR2 is a SONET/SDH standard at 9.953 Gb/s up to 40 km.

What typical applications suit the XFP-10GZR-OC192LR?

Ideal for metro/long-haul transport, data center interconnects, and SONET/SDH network aggregation.

What warranty coverage is offered with the XFP-10GZR-OC192LR?

It includes a one-year limited warranty, with extended support options available through the vendor.

FEATURED DEAL

Name:

XFP-10GZR-OC192LR

Name: 10GBASE-ZR and OC192 LR2 XFP Module
Brand: Cisco
SKU: XFP-10GZR-OC192LR
Price: 122.00 USD
Availability: InStock
Rating: 4.3 (6 reviews)

Description:: 10GBASE-ZR and OC192 LR2 XFP Module
Rating:: 4.3(6)
Added to cart 28 times recently
Availability:: In stock - Ready to Ship
Brand:: Cisco
GTIN:: 816678019899
Condition:
Warranty:: 3
List Price:: $18,877.00
Price:: $122.0099.4% off

Quantity:

Business price:

Enroll your business for free

3 Year Extended Warranty

Same-day Shipping

14-Day Money Back Guarantee

Shipping:

Payment:

xfp-10gzr-oc192lr 10gbase-zr and oc192 lr2 xfp module

3 Year Extended Warranty

Same-day Shipping

14-Day Money Back Guarantee

Need Additional Discount on Product?

Request a quote below - Get Exclusive Pricing and Support.

Shipping:

Payment:

XFP-10GZR-OC192LR

10GBASE-ZR and OC192 LR2 XFP Module

$18,877.00 $122.0099.4% off

11 in Global Warehouse Global

TRUSTED, TRIED, PROVEN

$5,000,000+

Inventory Delivered By

Officially Accredited

& Verified By

Next-Gen IT

Solutions Powered By

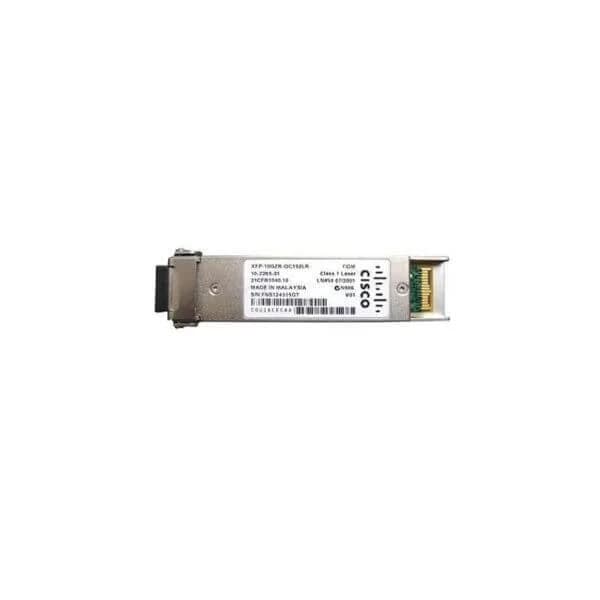

XFP-10GZR-OC192LR Overview

XFP-10GZR-OC192LR is a high-performance XFP transceiver designed for 10G data rate applications. It features an LC connector and a 1310 nm wavelength optimized for long-range transmission over single-mode fiber, and it supports both Ethernet and OC-192 protocols within a compact, industry-standard form factor.

This transceiver is ideally suited for use in data centers, enterprise networks, and telecommunications infrastructures. Its robust design and proven compatibility with leading network platforms such as Cisco, Juniper, Huawei, and Arista ensure reliable, high-speed connectivity for mission-critical applications.

XFP-10GZR-OC192LR price is $122.00, a 99.4% saving from the Cisco list price of $18,877.00. XFP-10GZR-OC192LR is in stock and available for next-day dispatch. (terms applied)

Request bulk order quote for XFP-10GZR-OC192LR for additional pricing. Browse the full Cisco Xfp Module series or explore all Cisco products.

XFP-10GZR-OC192LR Specifications

Product Type: Transceiver
Form Factor: XFP
Data Rate: 10G
Connector Type: LC
Wavelength: 1310 nm
Transmission Distance: Long-Range
Fiber Type: Single-mode
Max Distance: 80 km
Supported Protocols: Ethernet, OC-192
Network Interface: Fiber
Power Consumption: 4.0W
Operating Temperature: 0 to 70°C
Storage Temperature: -40 to 85°C
Input Voltage: 3.3V
Compatibility: Cisco, Juniper, Huawei, Arista
Product Name: XFP-10GZR-OC192LR
Height: N/A
Width: N/A
Depth: N/A
Weight: N/A

Quality Certifications

To get the detailed certification, please go to the Compliance Center.

Product Comparison Table

	XFP-10GZR-OC192LR	XFP-10GER-192IR+	DWDM-XFP-50.92	DWDM-XFP-54.13	DWDM-XFP-43.73
Compatibility	Cisco, Juniper, Huawei, Arista	Cisco / Juniper / Huawei / Arista	Cisco, Juniper, Huawei, Arista	Cisco, Juniper, Huawei, Arista	Cisco / Juniper / Huawei / Arista
Connector Type	LC	LC	LC	LC	LC
Data Rate	10G	10G	10G	10G	10G
Depth	N/A	0.85 inches	N/A	0.8 inches	0.65 inches
Fiber Type	Single-mode	Single-mode	Single-mode	Single-mode	Single-mode
Form Factor	XFP	XFP	XFP	XFP	XFP
Height	N/A	0.65 inches	N/A	0.5 inches	0.65 inches
Input Voltage	3.3V	3.3V	3.3V	3.3V	3.3V
Max Distance	80 km	40 km	80 km	80 km	80 km
Network Interface	Fiber	Fiber	Fiber	Ethernet	Fiber
Operating Temperature	0 to 70°C	0 to 70°C	0 to 70°C	0 to 70°C	0 to 70°C
Power Consumption	4.0W	2.5W	N/A	3.5W	N/A
Product Name	XFP-10GZR-OC192LR	XFP-10GER-192IR+	DWDM-XFP-50.92	DWDM-XFP-54.13	DWDM-XFP-43.73
Product Type	Transceiver	Transceiver	Transceiver	Transceiver	Transceiver
Storage Temperature	-40 to 85°C	-40 to 85°C	-40 to 85°C	-40 to 85°C	-40 to 85°C
Supported Protocols	Ethernet, OC-192	Ethernet	Ethernet, Fibre Channel	Ethernet, Fibre Channel	Ethernet / Fibre Channel
Transmission Distance	Long-Range	Extended-Range	Long-Range	Long-Range	Long-Range
Wavelength	1310 nm	1550nm	N/A	1550 nm	1550 nm
Weight	N/A	0.2 lbs	N/A	0.1 lbs	0.12 lbs
Width	N/A	3.25 inches	N/A	2.2 inches	1.65 inches

Reviews & Ratings

Gavin Larkspur

XFP-10GZR-OC192LR delivered stable 10GBASE-ZR and OC192 LR2 connectivity over long distances.

Hudson Merrick

Strong optical reach with consistent signal quality.

Isaiah Radcliffe

Integrated smoothly into mixed Ethernet and SONET environments.

Jonah Kershaw

Reliable long-haul throughput with low error rates.

Kyle Wainwright

Dependable multirate XFP module for carrier transport.

Liam Hollowbrook

Predictable latency across extended fiber spans.

Questions & Answers

What is the XFP-10GZR-OC192LR module?

The XFP-10GZR-OC192LR is a hot‐pluggable XFP transceiver module that supports both 10GBASE-ZR Ethernet and OC192 LR2 SONET/SDH links.

Which fiber type does the XFP-10GZR-OC192LR support?

It supports single-mode fiber (SMF) with LC duplex connectors for long-reach optical transmission.

What maximum reach does the XFP-10GZR-OC192LR achieve?

It transmits up to 80 km over SMF at 10GBASE-ZR rates and up to 40 km at OC192 LR2 speed.

What wavelength does the XFP-10GZR-OC192LR use?

It operates at a nominal wavelength of 1550 nm for optimal long-distance performance.
