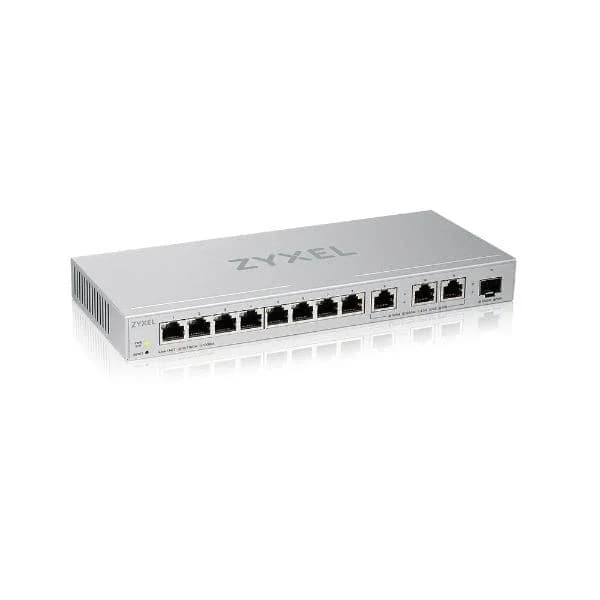

Name: 12-Port Web-Managed Multi-Gigabit Switch includes 3-Port 10G and 1-Port 10G SFP+
Brand: Zyxel Networks
SKU: XGS1250-12-ZZ0101F
Availability: OutOfStock
Rating: 4.2 (5 reviews)

Question 1

What port configuration does the XGS1250-12-ZZ0101F offer?

Accepted Answer

The XGS1250-12-ZZ0101F features eight 10/100/1000 Mbps RJ45 ports, three 1/2.5/5/10 Gbps multi-gig RJ45 ports, and one 10 Gbps SFP+ fiber uplink port for flexible network connectivity.

Question 2

What management interfaces are available on this switch?

Accepted Answer

This switch provides a web-based GUI, SNMP v1/v2c/v3, SSH/CLI, and RMON support for comprehensive configuration and monitoring.

Question 3

How do I access the web management interface?

Accepted Answer

Connect a PC to any switch port, set your PC to DHCP or an IP in 192.168.0.x, open http://192.168.0.1 in a browser, and log in with the default admin credentials.

Question 4

Does the switch support VLANs and how many?

Accepted Answer

Yes, it supports up to 4,096 VLANs using IEEE 802.1Q tag-based and port-based VLAN for network segmentation and security.

Question 5

What link aggregation options are supported?

Accepted Answer

The XGS1250-12-ZZ0101F supports IEEE 802.3ad LACP for dynamic link aggregation and static trunking, with up to eight aggregation groups and eight ports per group.

Question 6

Which QoS features are included?

Accepted Answer

It offers eight hardware queues per port, 802.1p/DSCP priority mapping, traffic shaping, and rate limiting to ensure consistent service quality.

Question 7

Is PoE supported on this switch?

Accepted Answer

No, the XGS1250-12-ZZ0101F does not provide Power over Ethernet (PoE) functionality.

Question 8

What is the switching capacity and forwarding rate?

Accepted Answer

The switch delivers a total switching capacity of 240 Gbps and a maximum forwarding rate of 178.5 Mpps for high-performance environments.

Question 9

Can I use third-party SFP+ modules with the switch?

Accepted Answer

Yes, it is compatible with standard 10 Gbps SFP+ fiber modules (including third-party MSA-compliant modules) and supports hot-swapping.

Question 10

What security features are included?

Accepted Answer

Built-in security includes ACLs, port security, DHCP snooping, IP-MAC-Port binding, 802.1X authentication, and storm control.

Question 11

How do I update the switch firmware?

Accepted Answer

Firmware updates are performed via the web GUI’s firmware upgrade tool or via TFTP by uploading the official firmware file and following the on-screen prompts.

Question 12

What are the power requirements and operating conditions?

Accepted Answer

It operates on 100–240 VAC, consumes up to 52 W, and supports ambient temperatures of 0–40 °C with 10%–90% non-condensing humidity.

Question 13

What warranty and support options are provided?

Accepted Answer

The XGS1250-12-ZZ0101F includes a three-year limited warranty and lifetime technical support via phone, email, and an online knowledge base.

Question 14

What are the typical use cases for this switch?

Accepted Answer

Ideal for SMB edge deployments, multi-gig home labs, IP surveillance networks, virtualization uplinks, and small data-center aggregation.

Question 15

Does the switch support IPv6 management?

Accepted Answer

Yes, it fully supports IPv6 addressing for web GUI, SNMPv3, SSH/CLI access, and ACL filtering.

Question 16

How can I monitor network traffic on this switch?

Accepted Answer

You can use port mirroring, SNMP with RMON, syslog export, and per-port traffic statistics to monitor and troubleshoot network performance.

	XGS1250-12-ZZ0101F	GS1915-24E-GB0101F	XGS1210-12-ZZ0101F	GS1915-8EP-GB0101F	GS1920-8HPV2-GB0101F
Depth	12 inches	10 inches	11 inches	9 inches	10.5 inches
Ethernet Technology	10/100/1000	10/100/1000	10/100/1000	10/100/1000	10/100/1000
Flash Memory	64 MB	32 MB	64 MB	32 MB	64 MB
Form Factor	Rack-mount	Rack-mount	Rack-mount	Rack-mount	Desktop / Rack-mount
Height	1.75 inches	1.75 inches	1.75 inches	1.75 inches	1.75 inches
IOS	LAN Lite	LAN Lite	LAN Lite	LAN Lite	LAN Lite
Interface Ports	10/100/1000	10/100/1000	10/100/1000	10/100/1000	10/100/1000
Layer Supported	Layer 2 / Layer 3	Layer 2	Layer 2	Layer 2	Layer 2
Manageable	Managed	Managed	Managed	Managed	Managed
Manufacturer Part Number	XGS1250-12-ZZ0101F	GS1915-24E-GB0101F	XGS1210-12-ZZ0101F	GS1915-8EP-GB0101F	GS1920-8HPV2-GB0101F
Media Type Supported	Combo	Twisted Pair	Combo	Twisted Pair	Twisted Pair
Memory	256 MB	256 MB	256 MB	256 MB	256 MB
Number of Downlink Ports	12 Ports	24 Ports	8 Ports	8 Ports	8 Ports
Number of Ethernet Ports	12–24 Ports	12–24 Ports	Under 12 Ports	Under 12 Ports	Under 12 Ports
POE Support	Non POE	Non POE	Non POE	POE+	POE+
Port/Expansion Slot Details	12 Ethernet ports, 4 SFP uplink slots	N/A	8 fixed RJ45 ports, 4 fixed SFP ports	8 PoE Ports with 4 SFP Uplink Ports	8 x PoE ports with 2 combo uplink ports
Power Consumption	N/A	34W	50 W	N/A	120W
Power Source	AC Power Supply	AC Power Supply	AC Power Supply	AC Power Supply	AC Power Supply
Product Name	XGS1250-12-ZZ0101F Advanced Managed Switch	GS1915-24E-GB0101F Switch	XGS1210-12-ZZ0101F Managed Gigabit Rack Switch	Netgear GS1915-8EP Smart Managed PoE Switch	HPE OfficeConnect GS1920-8HPV2 PoE+ Switch
Product Type	Switch	Switch	Switch	Switch	Switch
Rack Units	1 RU	1 RU	1 RU	1 RU	1 RU
Redundant Power Supply Supported	No	No	No	No	No
SFP Ports	4 SFP Ports	4 SFP Ports	4 SFP Ports	4 SFP Ports	Combo
Switching Capacity	128 Gbps	64 Gbps	20 Gbps	16 Gbps	16 Gbps
Switching Capacity with Stacking	256 Gbps	128 Gbps	40 Gbps	32 Gbps	N/A
Uplink Configuration	1G	1G	1G	1G	1G
Weight	6 lbs	12 lbs	7 lbs	N/A	7.0 lbs
Width	17.5 inches	17.5 inches	17.5 inches	17.5 inches	17.3 inches
