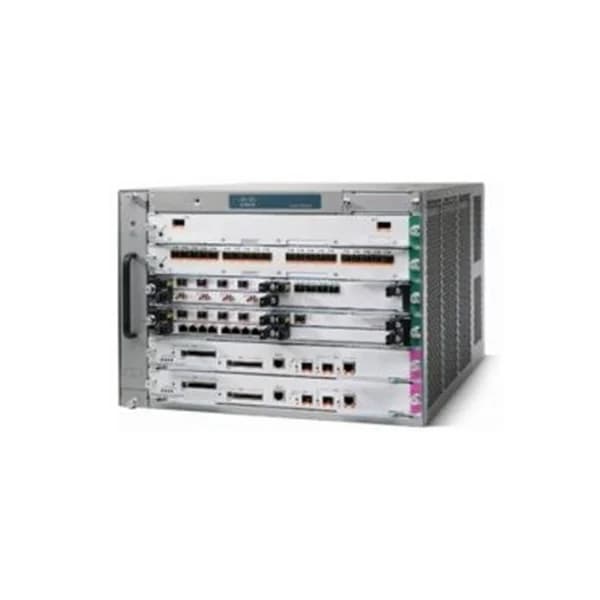

Name: Cisco 7606 6-slot, Redundant System, 2 SUP720-3BXL and 2 PS
Brand: Cisco
SKU: 7606-2SUP720XL-2PS
Price: 8335.00 USD
Availability: InStock
Rating: 4.2 (5 reviews)

Question 1

What is the Cisco 7606 6-slot Redundant System (SKU 7606-2SUP720XL-2PS)?

Accepted Answer

The Cisco 7606 6-slot Redundant System is an enterprise-grade modular router chassis equipped with two Supervisor Engine SUP720-3BXL and two power supplies for high availability and performance. It delivers advanced routing, switching, and security services in a compact form factor.

Question 2

What performance does the SUP720-3BXL Supervisor Engine deliver?

Accepted Answer

The SUP720-3BXL delivers up to 720 Gbps of switching fabric and up to 36 Gbps of IPv4/IPv6 forwarding performance per engine. It supports up to 16 million MAC addresses and 256,000 routes for large-scale deployments.

Question 3

How does redundancy work with dual SUP720-3BXL modules?

Accepted Answer

Dual SUP720-3BXL modules operate in active/standby mode to provide nonstop forwarding (NSF) and stateful switchover (SSO). In the event of a supervisor failure, control and data planes automatically fail over without packet loss.

Question 4

Which power supplies are included, and what are their specifications?

Accepted Answer

The system includes two AC 1100W power supplies supporting 100–240 VAC input and N+1 redundancy. Each supply features overcurrent, overvoltage, and thermal protection for reliable operation.

Question 5

What maximum throughput can the Cisco 7606 system handle?

Accepted Answer

With dual SUP720-3BXL engines, total system switching capacity scales up to 1.44 Tbps and up to 72 Gbps of forwarding throughput. This supports high-bandwidth applications in service provider and data center environments.

Question 6

Which line cards and interface modules are supported?

Accepted Answer

The Cisco 7606 supports a variety of WAN, Ethernet, and service modules including 10/100/1000 Ethernet, 10-Gigabit Ethernet, T1/E1, T3/E3, and OC-3/OC-12 optical interfaces. It also accommodates voice and security modules.

Question 7

Is the chassis and its components hot-swappable?

Accepted Answer

Yes. The 6-slot chassis, supervisor engines, power supplies, and most line cards are hot-swappable, enabling service continuity during maintenance or upgrades.

Question 8

What are the physical dimensions and rack requirements?

Accepted Answer

The chassis measures 17.5 in. (W) x 27.6 in. (D) x 6.9 in. (H) and weighs approximately 35 lbs without modules. It fits a standard 19-inch rack and requires 4 rack units (4 RU) of space.

Question 9

Which Cisco IOS software images are compatible with the SUP720-3BXL?

Accepted Answer

The SUP720-3BXL supports Cisco IOS XE Release 3.x and later, including IP Services, Security, and Enterprise feature sets. Ensure you download the matching image from Cisco’s software portal.

Question 10

What licensing options are available for advanced features?

Accepted Answer

You can choose Cisco’s Network Advantage or Network Essentials licenses to enable advanced routing, security, and application features. Licenses are permanent, with optional Smart Licensing for centralized management.

Question 11

What are the cooling and environmental requirements?

Accepted Answer

The system requires front-to-back airflow with operating temperatures between 32°F and 104°F (0°C to 40°C) and humidity up to 90% non-condensing. Embedded fans adjust speed based on thermal load.

Question 12

How do I install and configure the Cisco 7606 chassis?

Accepted Answer

Mount the chassis in a 19-inch rack, install supervisor engines and power supplies, connect network cables, and perform initial setup via the RJ-45 console or USB port. Use Cisco IOS CLI or Cisco Prime for configuration.

Question 13

What management and monitoring tools are supported?

Accepted Answer

The 7606 supports SNMP, NetFlow, Embedded Event Manager (EEM), Cisco Prime Infrastructure, and Cisco DNA Center for real-time monitoring, automation, and orchestration.

Question 14

What warranty and support options are available?

Accepted Answer

Cisco offers a limited lifetime hardware warranty for the chassis and a 1-year warranty for line cards and modules. Optional SMARTnet services provide 24×7 technical support, software updates, and hardware replacement.

Question 15

Which customer scenarios benefit most from this system?

Accepted Answer

Large enterprises, service providers, and data centers requiring high availability, scalable performance, and advanced routing/security services will benefit from the Cisco 7606 redundant system.

	7606-2SUP720XL-2PS	7613-S323B-10G-P	7603S-RSP720CXL-P	7606S-S32-10G-B-R	7603S-RSP720C-P
5G Support	No	No	No	No	No
Architecture	Modular	Modular	Modular	Modular	Modular
Broadband	Fiber Optic	N/A	Fiber Optic	N/A	Fiber Optic
Built-in Security Features	Firewall, Intrusion Prevention, Malware Protection	Firewall, Intrusion Prevention, Malware Protection	Firewall, Intrusion Prevention, Malware Protection	Firewall / Intrusion Prevention / Malware Protection	Firewall, Intrusion Prevention
Compliance Standards	FCC, CE	CE, FCC	FCC, CE	FCC / CE	FCC, CE, RoHS
Connectivity Type	Wired	Wired	Wired	Wired	Wired
Depth	28 inches	17 inches	N/A	N/A	18 inches
Device Type	Router	Router	Router	Router	Router
EMC	N/A	N/A	N/A	N/A	EN 55032
Ethernet Technology	10/100/1000	10G	10/100/1000, SFP+	10G	10/100/1000
Expansion Slots	NIM, SFP+	SFP+	NIM, EHWIC	SFP+	NIM, SFP+
Features	VPN, Firewall, Modular, Voice, Video, WAN Optimization	VPN, Firewall, QoS, Routing	VPN, Redundancy, High Availability, Integrated Services, QoS, Modular Design	VPN / IPv6 Compatible / Firewall / MPLS	VPN, Firewall, IPv6 Compatible, High Availability
Firewall Features	Yes	Yes	Yes	Yes	Yes
Flash Memory	1 GB	512 MB	512 MB	512 MB	512 MB
Form Factor	Rack-mount	Rack-mount	Chassis	Chassis	Rack-mount Chassis
Height	4 inches	3.5 inches	N/A	N/A	4 inches
High Availability Support	Supported	Supported	Supported	Supported	Supported
Integrated Services	Voice, Video, WAN Optimization	Voice, Video, WAN Optimization	Voice, Video, WAN Optimization	Voice / Video / WAN Optimization	Voice, Video, WAN Optimization
Interface Ports	RJ-45, SFP	RJ-45, SFP+	RJ-45, SFP, SFP+	SFP+	RJ-45, SFP+
LAN Ports	4 LAN Ports	4 LAN Ports	Modular LAN	Modular LAN	4 Modular LAN Ports
Management	Managed	Managed	Managed	Managed	Managed
Memory	4 GB	4 GB	16 GB	4 GB	4 GB
Modular Slots Available	3+ Slots	2 Slots	3+ Slots	3+ Slots	3+ Slots
Network Protocols	IPv4, IPv6	IPv4, IPv6	IPv4, IPv6, MPLS	IPv4, IPv6, MPLS	IPv4, IPv6
Power	500W	350 Watt	550 W	750W	200W
Power Source	Dual Redundant AC/DC Power Supply	AC Power Supply / Redundant	AC Power Supply / Redundant	Redundant AC/DC Power Supply	AC Power Supply with Redundant Options
Product Name	7606-2SUP720XL-2PS	7613-S323B-10G-P	7603S-RSP720CXL-P	Cisco 7606S-S32-10G-B-R	7603S-RSP720C-P
Product Type	Enterprise Router	Enterprise Router	Enterprise Router	Enterprise Router	Enterprise Router
QoS Features	Supported	Supported	Supported	Supported	Supported
Remote Management	SSH, Telnet, SNMP	SNMP, SSH, HTTPS	Telnet, SSH, SNMP	SSH / Telnet / SNMP	SSH, HTTPS, SNMP
Routing Protocols	OSPF / BGP / EIGRP / RIP / Static Routing	OSPF / BGP / EIGRP / Static Routing	OSPF / BGP / EIGRP / MPLS / IS-IS / RIP / Static Routing	OSPF / BGP / EIGRP / MPLS / IS-IS / RIP / Static Routing	OSPF, BGP, EIGRP, RIP, Static Routing
Safety	N/A	N/A	N/A	N/A	UL Listed
Speed/Capacity	1Gbps	10 Gbps	Gigabit	10G	Gigabit
Stacking Capability	Yes	Yes	Yes	Yes	Yes
Telecom	N/A	N/A	N/A	N/A	TIA-568
Throughput Capacity	10 Gbps	10 Gbps	720 Gbps	10 Gbps	2 Gbps
Use Case	Enterprise	Enterprise	Enterprise	Enterprise	Enterprise
VPN Support	IPSec / SSL VPN	IPSec / SSL VPN	IPSec / SSL VPN	IPSec / SSL VPN / GRE / DMVPN / FlexVPN	IPSec / SSL VPN / GRE
WAN Configuration	Dual WAN	Dual WAN	Dual WAN	Modular WAN	Dual WAN
WAN Ports	2 WAN	2 WAN Ports (1 RJ-45, 1 SFP+)	Modular WAN	Modular WAN	2 Modular WAN Ports
Weight	50 lbs	25 lbs	N/A	N/A	25 lbs
Wi-Fi Standard	N/A	N/A	N/A	N/A	N/A
Width	19 inches	17 inches	N/A	N/A	17 inches
Wireless Support	No	No	No	No	No
