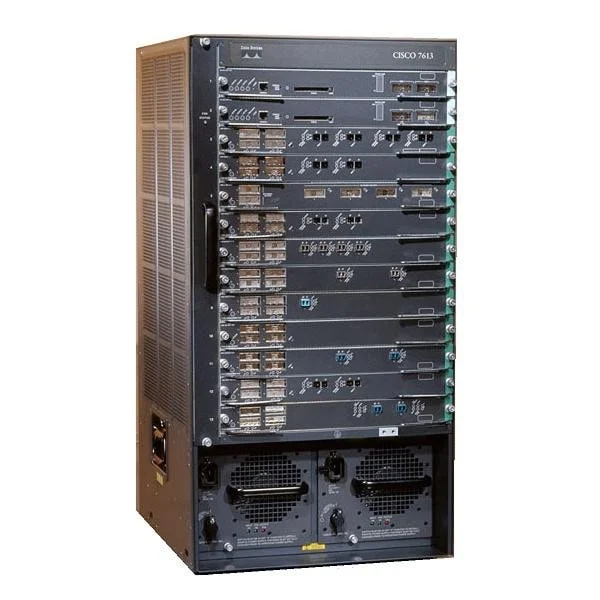

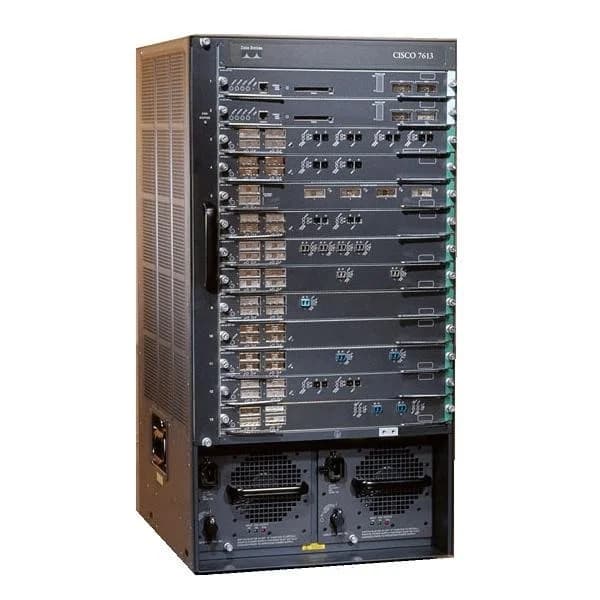

Name: Cisco 7613 Chassis,13-slot,RSP720-3CXL,PS
Brand: Cisco
SKU: 7613-RSP720CXL-P
Price: 4398.00 USD
Availability: InStock
Rating: 4.2 (5 reviews)

Question 1

What is the Cisco 7613 Chassis with RSP720-3CXL (SKU: 7613-RSP720CXL-P)?

Accepted Answer

The Cisco 7613 Chassis with RSP720-3CXL (SKU: 7613-RSP720CXL-P) is a 13-slot modular router platform featuring a high-performance Route Switch Processor 720-3CXL and integrated power supply designed for large-scale enterprise and service provider networks.

Question 2

How many line-card slots does the Cisco 7613 Chassis offer?

Accepted Answer

The Cisco 7613 Chassis offers 13 full-sized line-card slots, enabling a flexible mix of modules for traffic aggregation, service density, and high-throughput applications.

Question 3

What is the forwarding capacity of the RSP720-3CXL in the 7613 chassis?

Accepted Answer

The RSP720-3CXL delivers up to 720 Gbps of forwarding capacity, ensuring high-performance packet processing for complex network environments.

Question 4

Which power supply configuration is included with SKU 7613-RSP720CXL-P?

Accepted Answer

SKU 7613-RSP720CXL-P includes a dual-redundant integrated AC power supply, providing high availability and uninterrupted operation.

Question 5

What routing and switching protocols are supported by the Cisco 7613 chassis?

Accepted Answer

The Cisco 7613 chassis with RSP720-3CXL supports advanced routing protocols including OSPF, BGP, IS-IS, MPLS, and integrated services such as NAT, firewall, and VPN.

Question 6

Can the Cisco 7613 chassis support redundant route processors?

Accepted Answer

Yes, the chassis supports dual RSP720-3CXL modules in a redundant configuration, ensuring continuous control-plane operation and minimal downtime.

Question 7

What are the environmental operating conditions for the Cisco 7613 Chassis?

Accepted Answer

The Cisco 7613 operates in ambient temperatures from 0°C to 45°C with 5% to 90% non-condensing humidity, matching standard data-center environmental requirements.

Question 8

Which network modules are compatible with SKU 7613-RSP720CXL-P?

Accepted Answer

Compatible modules include Cisco 7600 series line cards such as 10G, 40G, and service modules, offering flexible port density and service integration options.

Question 9

What is the maximum system memory supported by the 7613 chassis?

Accepted Answer

The Cisco 7613 chassis supports up to 16 GB of DRAM per RSP720-3CXL module and 4 GB of onboard flash memory for large routing tables and multiple software images.

Question 10

Does the Cisco 7613 chassis support hot-swappable components?

Accepted Answer

Yes, the chassis features hot-swappable line cards, route processors, power supplies, and fans to enable in-service hardware replacement without network disruption.

Question 11

What management interfaces does the Cisco 7613 chassis provide?

Accepted Answer

The platform includes a dedicated management Ethernet port, console and auxiliary ports, and supports Cisco IOS XR for CLI and SNMP-based network management.

Question 12

What certifications and compliance standards does this product meet?

Accepted Answer

The Cisco 7613 chassis meets FCC, CE, UL, cUL, and EN regulatory standards for safety, electromagnetic compatibility, and environmental compliance.

Question 13

How scalable is the Cisco 7613 chassis for future network growth?

Accepted Answer

With 13 modular slots, a high-performance RSP720-3CXL, and broad module compatibility, the Cisco 7613 scales from multiservice edge to core deployments, accommodating evolving bandwidth demands.

Question 14

What are the physical dimensions and weight of the Cisco 7613 chassis?

Accepted Answer

The chassis measures 17.5 x 18.9 x 17.5 inches (H x W x D) and weighs approximately 90 lbs fully populated, fitting standard 19-inch rack environments.

Question 15

What warranty and support options are available for SKU 7613-RSP720CXL-P?

Accepted Answer

Cisco offers a limited lifetime hardware warranty and optional SMARTnet support, providing 24/7 access to technical assistance, software updates, and rapid hardware replacement.

Question 16

Can the Cisco 7613 chassis be used in high-availability network designs?

Accepted Answer

Yes, support for redundant route processors, power supplies, and Stateful Switchover in IOS XR makes the chassis ideal for high-availability and mission-critical networks.

Question 17

Which software image runs on the RSP720-3CXL in the 7613 chassis?

Accepted Answer

The RSP720-3CXL runs Cisco IOS XR software, offering carrier-grade features, modular processes, and in-service software upgrades for uninterrupted network operations.

	7613-RSP720CXL-P	7609-2SUP720XL-2PS	7609S-S32-10G-B-P	7604-S323B-10G-P	7609S-SUP720B-P
5G Support	No	No	No	No	No
Architecture	Modular	Modular	Modular	Modular	Modular
Broadband	N/A	Fiber Optic	N/A	Fiber Optic	N/A
Built-in Security Features	Firewall, Intrusion Prevention, Malware Protection	Firewall, Intrusion Prevention, Malware Protection	Firewall / Intrusion Prevention	Firewall / Intrusion Prevention / Malware Protection	Firewall / Intrusion Prevention
Compliance Standards	FCC, CE, RoHS	FCC, CE	IEEE 802.3, FCC, CE	IEEE 802.3 / RoHS	FCC / CE
Connectivity Type	Wired	Wired	Wired	Wired	Wired
Depth	N/A	18 inches	N/A	N/A	N/A
Device Type	Router	Router	Switching Module	Router	Router
EMC	N/A	N/A	N/A	N/A	FCC Part 15 / EN 55032
Ethernet Technology	10/100/1000	10/100/1000	10G	10/100/1000 and 10G	10/100/1000
Expansion Slots	NIM, SFP+	NIM	SFP+	NIM / SFP+	EHWIC / NIM
Features	VPN, Firewall, Voice, Video, IPv6 Compatible, WAN Optimization	VPN, IPv6 Compatible, Firewall, MPLS	VPN / MPLS / QoS / Redundancy	VPN, Firewall, MPLS, IPv6 Compatible	VPN / Firewall / Chassis Redundancy / Modular Design
Firewall Features	Yes	Yes	Yes	Yes	Yes
Flash Memory	1 GB	512 MB	N/A	1 GB	512 MB
Form Factor	Chassis	Chassis	Modular	Rack-mount	Chassis
Height	N/A	2.5 inches	N/A	N/A	N/A
High Availability Support	Supported	Supported	Supported	Supported	Supported
Integrated Services	Voice, Video, WAN Optimization	WAN Optimization, Voice, Video	Voice / Video / WAN Optimization	Voice / Video / WAN Optimization	Voice / Video / WAN Optimization
Interface Ports	RJ-45, SFP, SFP+	RJ-45, SFP	SFP+	RJ-45 / SFP+	RJ-45 / SFP
LAN Ports	Modular LAN	Modular LAN	N/A	4 LAN Ports	Modular LAN
Management	Managed	Managed	Managed	Managed	Managed
Memory	4 GB	4 GB	N/A	4 GB	2 GB
Modular Slots Available	3+ Slots	3+ Slots	N/A	3+ Slots	3+ Slots
Network Protocols	IPv4, IPv6, MPLS	IPv4, IPv6	IPv4, IPv6	IPv4 / IPv6	IPv4 / IPv6 / MPLS
Power	750 W	350 Watt	N/A	250 Watt	350 W
Power Source	Dual Redundant AC/DC Power Supply	AC Power Supply / Redundant	Chassis Redundant Power	AC Power Supply / Redundant	AC Power Supply / Redundant
Product Name	7613-RSP720CXL-P	7609-2SUP720XL-2PS Integrated Modular Router	7609S-S32-10G-B-P	7604-S323B-10G-P	Cisco 7609S-SUP720B-P
Product Type	Modular Services Router	Enterprise Router	Switching Module for Enterprise Routers	Enterprise Router	Router Supervisor Module
QoS Features	Supported	Supported	Supported	Supported	Supported
Remote Management	CLI, SNMP, HTTP/HTTPS	SSH, Telnet	CLI / SNMP	SSH / Telnet / SNMP	Telnet / SSH / SNMP
Routing Protocols	OSPF, BGP, EIGRP, IS-IS, RIP, Static Routing	OSPF / BGP / EIGRP / IS-IS / MPLS / Static Routing	OSPF / BGP / EIGRP / RIP / Static Routing	OSPF / BGP / EIGRP / MPLS / IS-IS / RIP / Static Routing	OSPF / BGP / EIGRP / Static Routing
Safety	N/A	N/A	N/A	N/A	UL / cUL
Speed/Capacity	Gigabit	Gigabit	10G per port	10G	Gigabit
Stacking Capability	No	Yes	No	Yes	Yes
Telecom	N/A	N/A	N/A	N/A	CE Mark
Throughput Capacity	720 Gbps	20 Gbps	10Gbps per port	10 Gbps	0.64 Gbps
Use Case	Enterprise	Enterprise	Enterprise	Enterprise	Enterprise
VPN Support	IPSec, SSL VPN, DMVPN	IPSec / SSL VPN / GRE / DMVPN / FlexVPN	IPSec / SSL VPN	IPSec / SSL VPN	IPSec / GRE / DMVPN
WAN Configuration	Dual WAN	Dual WAN	Modular WAN	Dual WAN	Dual WAN
WAN Ports	Modular WAN	2 WAN	Modular WAN	1 WAN	Modular WAN
Weight	N/A	35 lbs	N/A	N/A	N/A
Wi-Fi Standard	N/A	N/A	N/A	N/A	N/A
Width	N/A	19 inches	N/A	N/A	N/A
Wireless Support	No	No	No	No	No
