90IG0440-MO0R00 Overview

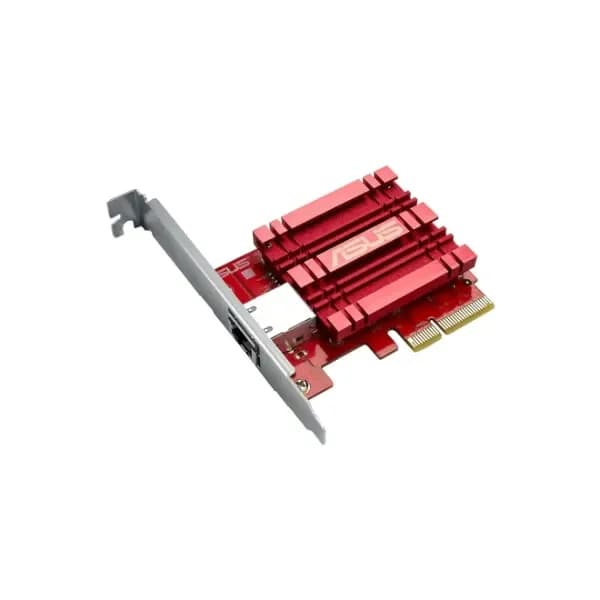

90IG0440-MO0R00-XG-C100C - Internal - Wired - PCI Express - Ethernet - 10000 Mbit/s is a high-performance network interface card engineered for demanding enterprise networking environments. It is an expansion card that features a PCIe x4 interface operating on the PCIe 3.0 standard and utilizes the Intel 82599 chipset to deliver a reliable 10Gbps throughput via a single RJ-45 port.
Optimized for installation in servers and high-end workstations, this Ethernet card offers broad operating system compatibility including Windows, Linux, VMware ESXi, and FreeBSD. With a passive cooling design and a full height bracket configuration, the card is ideal for network upgrades and server expansion, ensuring efficient data transfer and reliable connectivity in data-intensive applications.
90IG0440-MO0R00 price is is available on request. Get immediate quote.
Request bulk order quote for 90IG0440-MO0R00 for additional pricing. Browse the full Asus Server Expansion Cards series or explore all Asus products.
90IG0440-MO0R00 Specifications
- Product Type
- Expansion Card
- Card Type
- Network Interface Card
- Interface
- PCIe x4
- PCIe Version
- PCIe 3.0
- Chipset / Controller
- Intel 82599
- Supported Ports
- RJ-45
- Port Count
- 1
- Max Data Rate
- 10Gbps
- RAID Levels Supported
- N/A
- Capture Resolution
- N/A
- Capture Frame Rate
- N/A
- Low Profile Bracket
- No
- Full Height Bracket
- Yes
- Cooling
- Passive
- Operating System Compatibility
- Windows / Linux / VMware ESXi / FreeBSD
- Bus Width
- 64-bit
- Power Requirements
- 3.3V
- Use Case
- Server Expansion / Network Upgrade
- Product Name
- 90IG0440-MO0R00-XG-C100C - Internal - Wired - PCI Express - Ethernet - 10000 Mbit/s
- Height
- 1.4 inches
- Width
- 4.4 inches
- Depth
- 0.8 inches
- Weight
- 0.3 lbs
Quality Certifications
To get the detailed certification, please go to the Compliance Center.
Product Comparison Table
| 90IG0440-MO0R00 |  90IG0610-MO0R10 |  90IG0660-MO0R00 |  90IG02S0-BO0010 |  90IG04S0-MM0R10 | |
|---|---|---|---|---|---|
| Product Type | Expansion Card | Expansion Card | Expansion Card | Expansion Card | Expansion Card |
| Card Type | Network Interface Card | Network Interface Card | Network Interface Card | Network Interface Card | Network Interface Card |
| Interface | PCIe x4 | PCIe x1 | PCIe x1 | PCIe x1 | PCIe x1 |
| PCIe Version | PCIe 3.0 | PCIe 3.0 | PCIe 3.0 | N/A | PCIe 3.0 |
| Chipset / Controller | Intel 82599 | N/A | C2500 | N/A | N/A |
| Supported Ports | RJ-45 | N/A | RJ-45 | N/A | N/A |
| Port Count | 1 | N/A | 1 | N/A | N/A |
| Max Data Rate | 10Gbps | N/A | 2.5Gbps | N/A | N/A |
| RAID Levels Supported | N/A | N/A | N/A | N/A | N/A |
| Capture Resolution | N/A | N/A | N/A | N/A | N/A |
| Capture Frame Rate | N/A | N/A | N/A | N/A | N/A |
| Low Profile Bracket | No | No | No | N/A | N/A |
| Full Height Bracket | Yes | Yes | Yes | N/A | N/A |
| Cooling | Passive | Passive | Passive | Passive | Passive |
| Operating System Compatibility | Windows / Linux / VMware ESXi / FreeBSD | Windows / Linux | Windows / Linux / macOS / VMware ESXi / FreeBSD | Windows / Linux | Windows / Linux |
| Bus Width | 64-bit | 64-bit | 64-bit | N/A | N/A |
| Power Requirements | 3.3V | 3.3V | 3.3V | 3.3V | 3.3V |
| Use Case | Server Expansion / Network Upgrade | Network Upgrade | Network Upgrade | Network Upgrade | Network Upgrade |
| Product Name | 90IG0440-MO0R00-XG-C100C - Internal - Wired - PCI Express - Ethernet - 10000 Mbit/s | 90IG0610-MO0R10-PCE-AX3000 - Internal - Wireless - PCI Express - WLAN / Bluetooth - Wi-Fi 6 (802.11ax) - 3000 Mbit/s | 90IG0660-MO0R00-PCE-C2500 - Internal - Wired - Ethernet / WLAN - 2500 Mbit/s - Silver | 90IG02S0-BO0010-PCE-AC51 - Wireless - PCI Express - WLAN - Wi-Fi 5 (802.11ac) - 433 Mbit/s - Multicolour | 90IG04S0-MM0R10-PCE-AC58BT - Internal - Wireless - PCI Express - WLAN / Bluetooth - Wi-Fi 5 (802.11ac) - 1733 Mbit/s |
| Height | 1.4 inches | N/A | N/A | N/A | N/A |
| Width | 4.4 inches | N/A | N/A | N/A | N/A |
| Depth | 0.8 inches | N/A | N/A | N/A | N/A |
| Weight | 0.3 lbs | N/A | N/A | N/A | N/A |
Reviews & Ratings
C
Cameron Blake
5
High-performance wired connectivity for data-heavy workflows.
M
Miles Donovan
5
Consistent throughput with easy PCIe integration.
S
Spencer Hayes
5
Enhanced internal network capacity instantly.
J
Jordan Pierce
5
Reliable 10Gb adapter for enterprise use.
Questions & Answers
What is the ASUS XG-C100C Network Adapter?
The ASUS XG-C100C is an internal wired Ethernet card that delivers 10 Gbps connectivity over a PCI Express interface for high-speed network performance.
Which PCI Express slot does the XG-C100C require?
The XG-C100C installs in a standard PCI Express x4, x8, or x16 slot and supports PCIe 3.0 for optimal bandwidth.
What cable type does the XG-C100C use for 10 Gbps networking?
This adapter uses standard RJ-45 Cat6a or Cat7 Ethernet cables to achieve reliable 10 Gbps data transmission.
Is the XG-C100C compatible with Windows and Linux operating systems?
Yes, the XG-C100C supports Windows 10, Windows Server editions, and major Linux distributions with available drivers from ASUS.
How do I install the ASUS XG-C100C in my PC?
Power off your PC, insert the card into a free PCIe slot, secure it with a bracket screw, connect the network cable, then power on and install the drivers.
What driver support is available for the XG-C100C?
ASUS provides native drivers for Windows and Linux on its support website, ensuring compatibility and regular updates.
Can the XG-C100C auto-negotiate to lower speeds?
Yes, it auto-negotiates down to 1 Gbps or 100 Mbps when connected to legacy switches or cabling.
What power consumption does the XG-C100C have?
Typical power consumption is approximately 5 W under full load, making it energy-efficient for continuous operation.
Does the XG-C100C support Jumbo Frames?
Yes, it supports Jumbo Frames up to 9 K MTU to improve throughput and reduce CPU overhead in large data transfers.
Is heat dissipation an issue with the XG-C100C?
The card includes a heatsink for passive cooling, ensuring stable performance without additional active fans.
What use cases benefit from the XG-C100C?
Ideal for media editing, virtualization, NAS, and gaming, the XG-C100C accelerates data-intensive workflows with 10 Gbps speeds.
Can I mix 10 Gbps and 1 Gbps devices on the same network with this card?
Yes, the XG-C100C supports full backward compatibility, allowing mixed-speed deployments without manual configuration.
How does the XG-C100C compare to fiber-based 10 Gbps adapters?
The RJ-45 interface offers simpler installation and lower cabling costs compared to SFP+ fiber, while still delivering 10 Gbps over copper.
What warranty covers the ASUS XG-C100C?
ASUS provides a standard three-year limited warranty, including technical support and RMA coverage.
Does the XG-C100C support VLAN tagging?
Yes, it fully supports IEEE 802.1Q VLAN tagging for network segmentation and enhanced security.
How can I optimize performance on the XG-C100C?
Install the latest drivers, use Cat6a/Cat7 cabling, enable Jumbo Frames, and connect to a 10 Gbps-capable switch for peak throughput.
