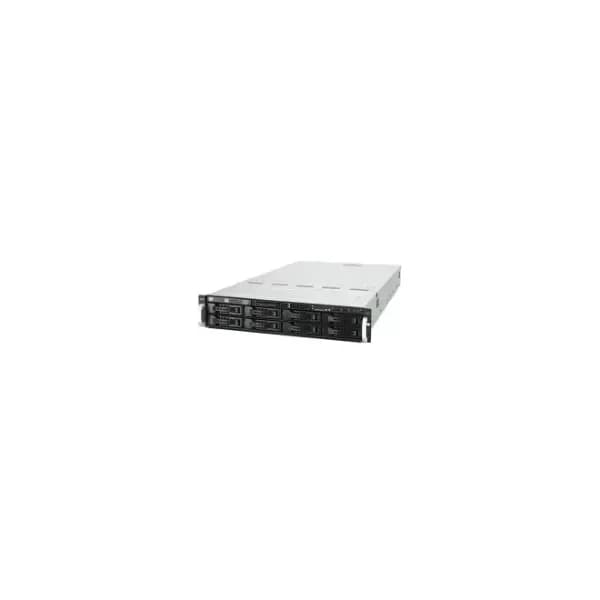

90SF0081-M00380

Specification Of 90SF0081-M00380

Processor
Built-in processor	Yes
Motherboard chipset	Intel® C621
Processor socket	LGA 3647 (Socket P)
Number of processors supported	1
Compatible processor series	Intel® Xeon®
Ports & interfaces
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Ethernet LAN (RJ-45) ports	3
VGA (D-Sub) ports quantity	1
Power
Power supply	650 W
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
80 PLUS certification	80 PLUS Platinum
Design
Chassis type	Rack (2U)
Product colour	Black
LED indicators	Yes
Certification	BSMI, CE, RCM, FCC A
Graphics
On-board graphics adapter model	Aspeed AST2500
On-board graphics adapter memory	64 MB
Memory
Number of DIMM slots	24
Supported memory types	DDR4-SDRAM
Supported DIMM module capacities	4GB, 8GB, 16GB, 32GB, 64GB
Maximum RDIMM memory	3072 GB
Supported RDIMM clock speeds	2666,2933 MHz
Storage
Number of storage drives supported	10
Hot-swap HDD bays	Yes
Number of 3.5" bays	8
Storage drive sizes supported	3.5,M.2
Supported storage drive interfaces	Serial ATA III
Expansion slots
PCI Express x16 (Gen 3.x) slots	6
Network
Ethernet LAN	Yes
Ethernet interface type	Gigabit Ethernet
LAN controller	Intel® I350-AM2
Operational conditions
Operating temperature (T-T)	10 - 35 °C
Storage temperature (T-T)	-40 - 60 °C
Storage relative humidity (H-H)	20 - 90 %
Weight &ensions
Width	750 mm
Depth	444 mm
Height	88 mm
Weight	16 kg
Packaging data
Package weight	23.2 kg
