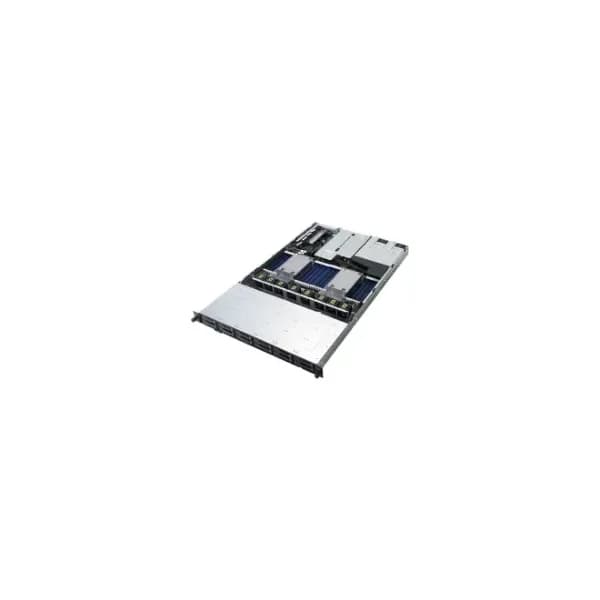

90SF0061-M01580

Specification Of 90SF0061-M01580

Processor
Number of processors supported	1
Compatible processor series	AMD EPYC
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Ethernet LAN (RJ-45) ports	2
Number of SATA III connectors	8
VGA (D-Sub) ports quantity	1
Power
Power supply	800 W
Redundant power supply (RPS) support	Yes
AC input frequency	50 - 60 Hz
Number of redundant power supplies installed	1
Design
Chassis type	Rack (1U)
Product colour	Black,Grey
LED indicators	Yes
Number of fans	8 fan(s)
Fan diameter	4 cm
Certification	BSMI, CE, RCM, FCC A
Graphics
On-board graphics adapter model	Aspeed AST2500
On-board graphics adapter memory	64 MB
Memory
Number of DIMM slots	32
Supported memory types	DDR4-SDRAM
Maximum internal memory	4096 GB
Supported RDIMM clock speeds	2666,2933,3200 MHz
Memory channels	Octa
Storage
Number of storage drives supported	12
Hot-swap HDD bays	Yes
Number of 2.5" bays	12
Storage drive sizes supported	2.5
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	Serial ATA III
Expansion slots
PCI Express x8 (Gen 3.x) slots	1
PCI Express x16 (Gen 3.x) slots	2
Number of M.2 (M) slots	2
Network
Ethernet LAN	Yes
Ethernet interface type	Gigabit Ethernet
LAN controller	Intel® I350-AM2
Operational conditions
Operating temperature (T-T)	10 - 35 °C
Storage temperature (T-T)	-40 - 60 °C
Storage relative humidity (H-H)	20 - 90 %
Weight &ensions
Width	684 mm
Depth	444 mm
Height	44 mm
Weight	12.2 kg
Packaging data
Package weight	15.8 kg
