Question 1

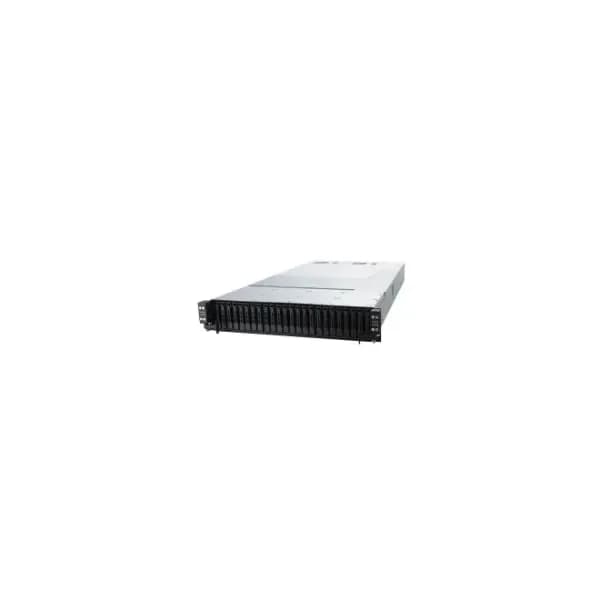

What is the Supermicro RS720Q-E9-RS24-S server?

Accepted Answer

The RS720Q-E9-RS24-S is a 2U rackmount server featuring the Intel® C621 chipset, LGA 3647 socket, and support for Intel® Xeon® Scalable processors, optimized for high-density compute workloads.

Question 2

Which Intel® Xeon® Scalable processors are supported?

Accepted Answer

This server supports 2nd and 3rd Generation Intel® Xeon® Scalable CPUs in the LGA 3647 form factor, up to 28 cores and 205 W TDP per socket.

Question 3

What memory types and capacities does it support?

Accepted Answer

It supports DDR4-SDRAM ECC Registered DIMMs in 16 slots, accepting 8 GB, 16 GB, 32 GB or 64 GB modules for up to 1 TB of system memory.

Question 4

What is the maximum memory capacity and speed?

Accepted Answer

The RS720Q-E9-RS24-S supports up to 1 TB of DDR4-2933 MT/s memory across 16 DIMM slots with Intel® C621 performance tuning.

Question 5

Which chipset and socket does this server use?

Accepted Answer

It is built on the Intel® C621 chipset and uses the LGA 3647 (Socket P) to deliver high I/O bandwidth and reliability.

Question 6

How many drive bays are available and what interfaces are supported?

Accepted Answer

The server offers 24 hot-swap 2.5-inch drive bays with SAS3, SATA3 and optional NVMe support for ultra-fast storage.

Question 7

Does the RS720Q-E9-RS24-S support NVMe drives?

Accepted Answer

Yes, it supports NVMe SSDs via an optional rear backplane or dedicated OCuLink connectors for direct PCIe Gen3 lanes.

Question 8

What network connectivity options are included?

Accepted Answer

Onboard dual 10 GbE ports are standard, with additional OCP 3.0 mezzanine slots for 25/40/100 GbE adapters.

Question 9

How many PCIe expansion slots are available?

Accepted Answer

There are seven PCIe Gen3 x16 slots for GPU, storage or network expansion in a 2U profile.

Question 10

What power supply configuration does it offer?

Accepted Answer

The system includes redundant 2200 W Titanium-level power supplies for high efficiency and fault tolerance.

Question 11

What remote management features are provided?

Accepted Answer

Built-in IPMI 2.0 with KVM-over-IP, virtual media and Supermicro SuperDoctor® ensures out-of-band monitoring and control.

Question 12

What type of cooling does this server use?

Accepted Answer

High-capacity front-to-back hot-swap fans with dynamic speed control deliver efficient airflow for dense component layouts.

Question 13

What are the ideal use cases for the RS720Q-E9-RS24-S?

Accepted Answer

This server is optimized for HPC, virtualization, cloud computing, big data analytics and AI inference applications.

Question 14

Which operating systems are supported?

Accepted Answer

The server is certified for Windows Server, VMware ESXi, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, CentOS and Ubuntu.

Question 15

What are the physical dimensions and rack requirements?

Accepted Answer

It occupies 2U in a standard 19-inch rack, measuring 438 mm (D) × 482 mm (W) × 87 mm (H) and requires proper front-to-back airflow.

Question 16

Can the RS720Q-E9-RS24-S accommodate GPUs?

Accepted Answer

Yes, it supports up to three double-width GPUs via PCIe Gen3 x16 slots, making it suitable for AI and GPU-accelerated workloads.

Question 17

What warranty and support options are available?

Accepted Answer

Standard coverage is a 3-year limited warranty with 24/7 phone support; optional extensions and on-site service are available.

	90SF0041-M00540	90SF0061-M01580	90SF0051-M00370	90SF00Y2-M00040	90SF0081-M00380
CPU Socket	LGA 4677	LGA 4189	LGA 4189	LGA 4677	LGA 4189
Cooling	Active	Active	Active	Active	Active
Depth	28.7 inches	28 inches	28 inches	28.5 inches	28 inches
Drive Bay Size	Mixed	2.5-inch	2.5-inch	2.5-inch	3.5-inch
Form Factor	Rackmount	Rackmount	Rackmount	Rackmount	Rackmount
GPU Support	Yes	No	Yes	Yes	No
Height	7 inches	3.5 inches	3.5 inches	3.5 inches	1.75 inches
Hot-Swap Support	Yes	Yes	Yes	Yes	Yes
LAN Ports	2	2	2	2	4
Max Cores per CPU	32	32	64	32	32
Max RAM Capacity	1 TB	1 TB	1 TB	1 TB	2 TB
Max Threads per CPU	64	64	128	64	64
Network Interface	10GbE	1GbE	10GbE	10GbE	10GbE
Operating System	VMware ESXi	Windows Server / VMware ESXi / Ubuntu	Windows Server	VMware ESXi	VMware ESXi
PCIe Slots	4	4	4	4	4
PCIe Version	PCIe 4.0	PCIe 4.0	PCIe 4.0	PCIe 4.0	PCIe 4.0
Power Supply	Redundant	Redundant	Redundant	Redundant	Redundant
Power Supply Wattage	1200W	1000W	800W	1200W	800W
Processor Brand	Intel	Intel	Intel	Intel	Intel
Processor Generation	Xeon 4th Gen	Xeon 3rd Gen	Xeon 3rd Gen	Xeon 4th Gen	Xeon 4th Gen
Processor Series	Intel Xeon Scalable	Intel Xeon Scalable	Intel Xeon Scalable	Intel Xeon Scalable	Intel Xeon Scalable
Product Name	90SF0041-M00540 High Performance Rack Server	90SF0061-M01580	90SF0051-M00370	90SF00Y2-M00040 Server	90SF0081-M00380
Product Type	Server	Server	Server	Server	Server
RAID Support	RAID 10	RAID 10	RAID 10	RAID 10	RAID 10
RAM Slots	16	16	16	16	24
RAM Type	ECC DDR4	ECC DDR4	ECC DDR4	ECC DDR4	ECC DDR4
Rack Units	2U	2U	2U	2U	1U
Rail Kit Included	Yes	Yes	Yes	N/A	N/A
Remote Management	iDRAC	iDRAC	iDRAC	iDRAC	IPMI
Scalability	2P	2P	2P	2P	2P
Storage Bays	8	8	8	8	8
Storage Type	SATA HDD	SATA SSD	SATA SSD	SATA SSD	SATA SSD
Use Case	Virtualization	Virtualization / File Server / Application Server	Virtualization	Virtualization / File Server / Application Server	Virtualization
Virtualization Ready	Yes	Yes	Yes	Yes	Yes
Weight	45 lbs	45 lbs	50 lbs	45 lbs	35 lbs
Width	17.3 inches	17.5 inches	17.2 inches	17.5 inches	19 inches
