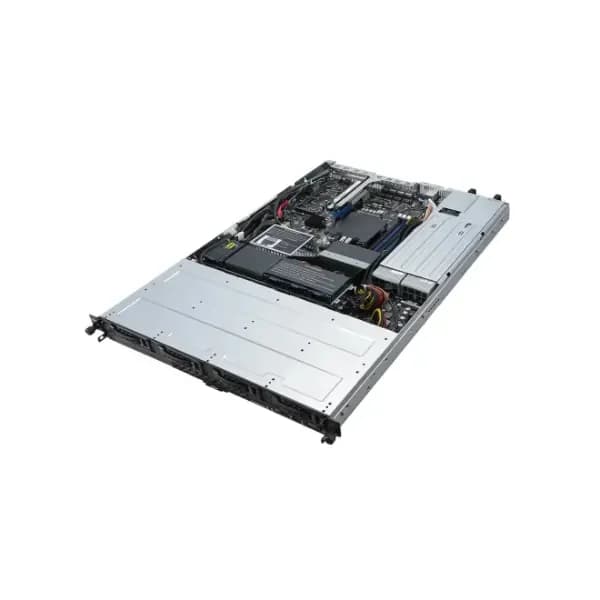

90SF00D1-M00010

Specification Of 90SF00D1-M00010

Processor
Built-in processor	No
Motherboard chipset	Intel® C242
Processor socket	LGA 1151 (Socket H4)
Number of processors supported	1
Compatible processor series	Intel® Celeron®, Intel® Core™ i3, Intel® Pentium®, Intel® Xeon®
Ports & interfaces
USB 3.1 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 2) Type-A ports quantity	2
Ethernet LAN (RJ-45) ports	4
IPMI LAN (RJ-45) port	Yes
VGA (D-Sub) ports quantity	1
COM ports quantity	1
Number of SATA III connectors	6
Power
Power supply	450 W
Redundant power supply (RPS) support	Yes
Number of redundant power supplies supported	2
Number of redundant power supplies installed	2
AC input voltage	100 - 240 V
AC input frequency	47 - 63 Hz
Input current	8 A
80 PLUS certification	80 PLUS Gold
Design
Chassis type	Rack (1U)
Product colour	Black,Metallic
LED indicators	Alarm,HDD,LAN,Power
On/off switch	Yes
Reset button	Yes
Certification	BSMI, CE, C-Tick, FCC(Class A)
Graphics
On-board graphics adapter model	Aspeed AST2500
On-board graphics adapter memory	64 MB
Memory
Number of DIMM slots	4
Supported memory types	DDR4-SDRAM
Supported DIMM module capacities	4GB,8GB,16GB
Maximum internal memory	64 GB
Maximum UDIMM memory	64 GB
Supported UDIMM clock speeds	2400,2666 MHz
ECC	Yes
Non-ECC	Yes
Storage
Number of storage drives supported	4
Hot-swap HDD bays	Yes
Storage drive sizes supported	2.5,3.5,M.2
Supported storage drive interfaces	M.2,Serial ATA III
RAID levels	0,1,5,10
Expansion slots
PCI Express x8 (Gen 3.x) slots	1
PCI Express x16 (Gen 3.x) slots	1
Number of M.2 (M) slots	2
Network
Ethernet LAN	Yes
Ethernet interface type	Gigabit Ethernet
Ethernet LAN data rates	1000 Mbit/s
LAN controller	Intel® 1210
Operational conditions
Operating temperature (T-T)	10 - 35 °C
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	20 - 90 %
Weight &ensions
Width	615 mm
Depth	444 mm
Height	44 mm
Weight	12.9 kg
Packaging data
Package weight	19 kg
Features
Compatible operating systems	Windows Server 2016, RedHat Enterprise Linux, SuSE Linux Enterprise Server, CentOS, Vmware, Citrix XenServer
