Name: AIR-CT3504-K9
Brand: Cisco
Availability: InStock

Overview Of AIR-CT3504-K9

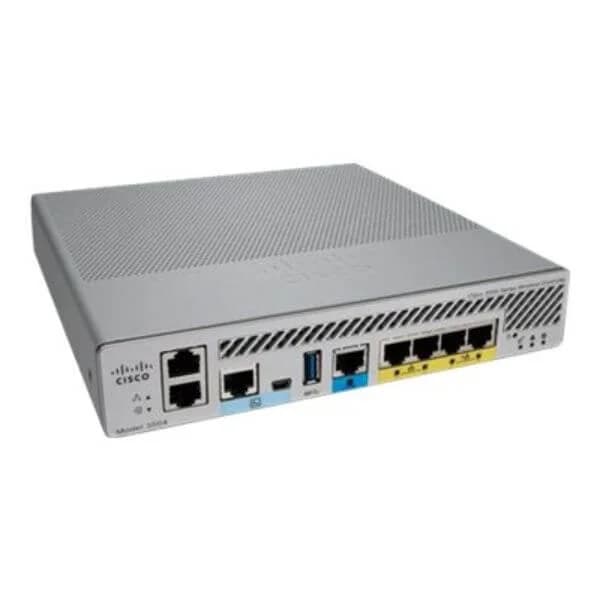

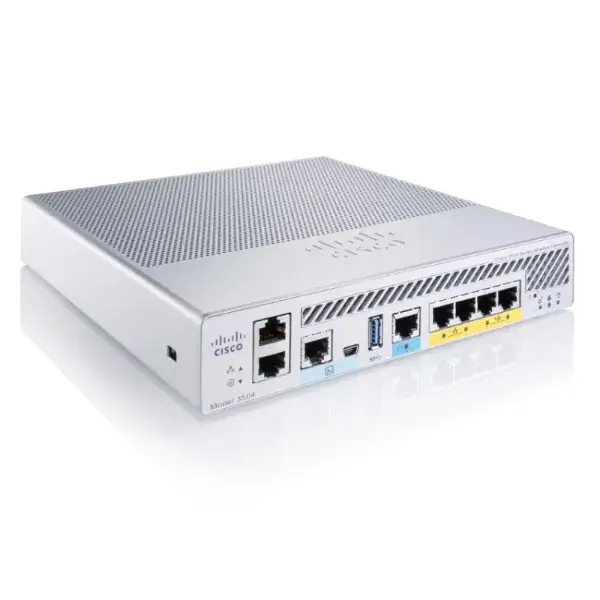

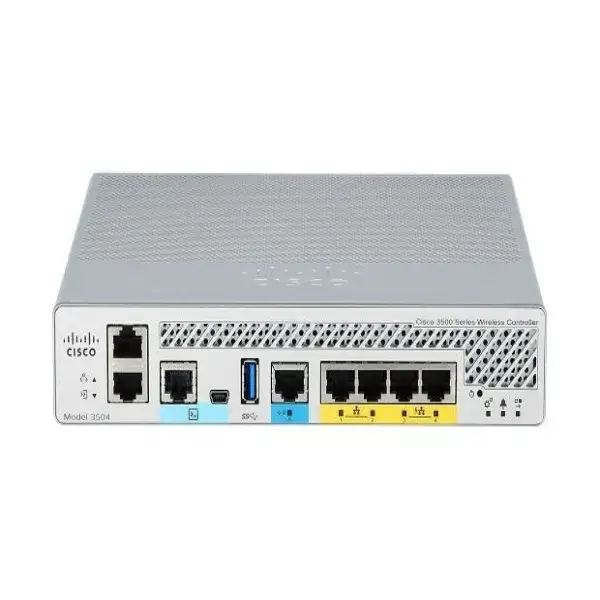

The wireless controller AIR-CT3504-K9 of Cisco 3504 series provides Cavium Network Processor CN7240-AAP 8 Core, 1.5 GHz with 2 x 1G redundancy and 1 x 5G/mGig Cu, 4 x 1G Cu data ports. The controller supports 150 Gbps Access points and 3000 Clients with licenses. It has 4 Gbps throughput.

Quick Specs

Model	AIR-CT3504-K9
Chassis Height	One rack-unit (1RU)
Throughput	4 Gbps
Number of APs supported	150
Number of clients supported	3000
Processor	Cavium Network Processor—CN7240-AAP 8-core, 1.5 GHz
Memory Options	Control/Data Plane Memory—8GB DDR4 Boot Flash—8MB SPI NOR Serial Boot Bulk Flash—32GB eMMC
Redundancy, Service Ports	2x 1G Cu
Data Ports	1x 5G/mGig Cu, 4x 1G Cu (2 ports 802.3at PSE)

Recommended SFPs

Part Number	Description
SFP-10G-SR	10GBASE-SR SFP Module
SFP-10G-LR	10GBASE-LR SFP+ Module for SMF 10 Gbps
GLC-T	1000BASE-T SFP
GLC-SX-MMD	1000BASE-SX SFP transceiver module, MMF, 850nm, DOM
SFP-H10GB-CU1M	Direct-Attach Twinax Copper Cable Assembly with SFP+ Connectors
SFP-H10GB-CU3M	Direct-Attach Twinax Copper Cable Assembly with SFP+ Connectors
SFP-H10GB-CU5M	5M Passive Copper Twinax Cable F, Nexus,24AWG cable assembly

Specification Of AIR-CT3504-K9

AIR-CT3504-K9 Datasheet

Device Type	Network management device
Number of Ports	4
Capacity	Maximum number of access points 150 \| Maximum number of clients 3000 \| VLANs supported 4096
Performance	Throughput 4 Gbps
Data Link Protocol	Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, PPP, IEEE 802.11a, IEEE 802.11g, 10 Gigabit Ethernet, IEEE 802.11n, IEEE 802.11ac Wave 2, IEEE 802.11ac Wave 1
Features	Syslog support, IPv6 support, deep inspection, SNTP support, Wi-Fi Multimedia (WMM) support, Access Control List (ACL) support, CleanAir technology, Unified Communications, CAPWAP support, Management Information Base (MIB), Multicast filtering function
Network/Transport Protocol	TCP/IP, UDP/IP, ICMP/IP, ARP, BOOTP, DHCP
Remote Management Protocol	SNMP 1, RMON, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH
Routing Protocol	CIDR
Status Indicators	Diagnostic
Form Factor	Desktop
Depth	34.13 cm
Width	4.394 cm
Height	21.59 cm
Weight	2 kg
