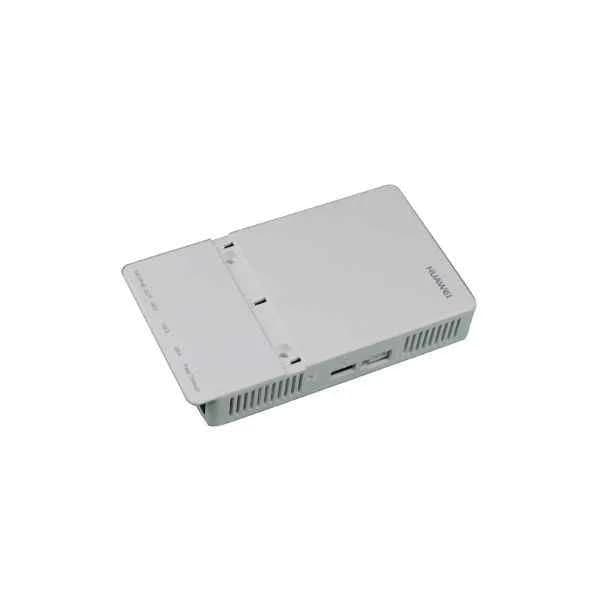

AP2050DN-E

AP2050DN-E Specification

Dimensions (H x W x D)

36mm x 86mm x 140mm

Weight

0.26 kg

Interface type

Uplink: 1 x GE

Downlink: 4 x GE

2 x Pass-through RJ45 port

1 x USB port

Built-in Bluetooth

BLE4.1

LED indicator

Indicates the power-on, startup, running, alarm, and fault status of the system.

Power input

Power adapter: 48 V ± 5%

PoE power supply: in compliance with IEEE 802.3af/at

PoE out

10 W

Maximum power consumption

11.5W (excluding the output power of the USB port and PoE_OUT port)

NOTE

The actual maximum power consumption depends on local laws and regulations.

Operating temperature

0°C to +40°C

Storage temperature

€“40°C to +70°C

Operating humidity

5% to 95% (non-condensing)

Altitude

€“60 m to +5000 m

Atmospheric pressure

53 kPa to 106 kPa

Antenna type

Built-in dual-band omnidirectional antennas

Antenna gain

2.4G: 4 dBi

5G: 5 dBi

Maximum number of SSIDs for each radio

‰¤16

Maximum number of users

‰¤ 256

NOTE

The actual number of users varies according to the environment

Maximum transmit power

2.4G: 21 dBm (combined power)

5G: 20 dBm (combined power)

NOTE

The actual transmit power depends on local laws and regulations

Power increment

1 dBm

Receiver sensitivity

2.4 GHz 802.11b：€“97dBm @ 1 Mbit/sï¼›€“91dBm@ 11 Mbit/s

2.4 GHz 802.11g：-93dBm @ 6 Mbit/s； -78dBm @ 54 Mbit/s

2.4 GHz 802.11n (HT20)：-93 dBm @ MCS0；-72dBm @ MCS15

2.4 GHz 802.11n(HT40)：-90 dBm @ MCS0； -71 dBm @ MCS15

5 GHz 802.11a ：-93 dBm @ 6 Mbit/s； -77dBm @ 54 Mbit/s

5 GHz 802.11n (HT20)：-92 dBm @ MCS0； -72 dBm @ MCS15

5 GHz 802.11n (HT40)：-89 dBm @ MCS0； -70dBm @ MCS15

5 GHz 802.11ac (VHT20)：-92 dBm @ MCS0NSS1； -71 dBm @ MCS8NSS2

5 GHz 802.11ac (VHT40)：-90 dBm @ MCS0NSS1； -63 dBm @ MCS9NSS2

5 GHz 802.11ac (VHT80)：-86 dBm @ MCS0NSS1； -60 dBm @ MCS9NSS2

Safety standards

UL 60950-1

IEC 60950-1

EN 60950-1

GB 4943

Radio standards

ETSI EN 300 328

ETSI EN 301 893

RSS-210

AS/NZS 4268

EMC standards

EN 301 489-1

EN 301 489-17

ETSI EN 60601-1-2

ICES-003

YD/T 1312.2-2004

GB 9254

GB 17625.1

EN 55022

EN 55024

IEC6ITU k.21

CISPR 22

CISPR 24

IEC61000-4-6

IEC61000-4-2

IEEE standards

IEEE 802.11a/b/g

IEEE 802.11n

IEEE 802.11ac

IEEE 802.11h

IEEE 802.11d

IEEE 802.11e

IEEE 802.11k

IEEE 802.11u

IEEE 802.11v

IEEE 802.11w

IEEE 802.11r

Security standards

802.11i, Wi-Fi Protected Access 2(WPA2), WPA

802.1X

Advanced Encryption Standards(AES), Temporal Key Integrity Protocol(TKIP)

EAP Type(s)

EMF

CENELEC EN 62311

CENELEC EN 50385

RSS-102

RoHS

Directive 2002/95/EC & 2011/65/EU

REACH

Regulation 1907/2006/EC

WEEE

Directive 2002/96/EC & 2012/19/EU
