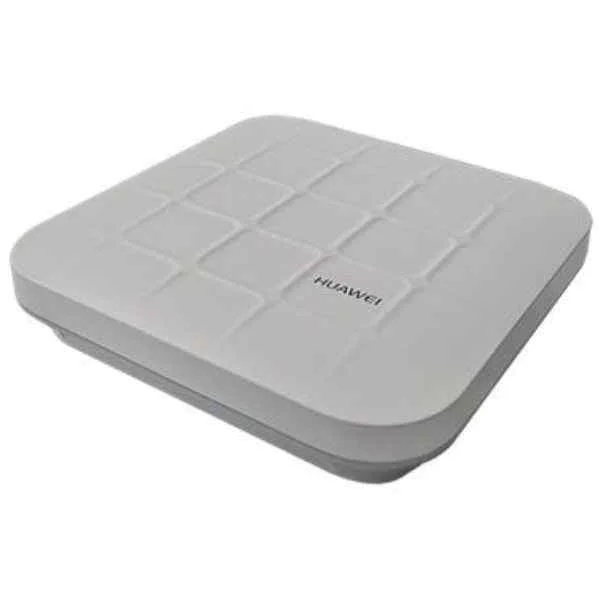

Name: AP7030DE
Brand: Huawei
Price: 505.00 USD
Availability: InStock

AP7030DE Specification

AP7030DE Specifications
Technical
Dimensions (H W D)	2.1 in. x 8.7 in. x 8.7 in. (53 mm x 220 mm x 220 mm)
Weight	2.4 lb. (1.1 kg)
System memory	256 MB DDR3 32 MB Flash
Power
Power input	DC 12V ± 10% POE Power: -48V DC. PoE function IEEE compliant802.3at
Maximum power consumption	19W Note: Maximum power consumption depends on local laws and regulations
Environment
Operating temperature	-4°F to 122°F (-20°C to 50°C)
Storage temperature	-40°F to 158°F (-40°C to 70°C)
Humidity	5% to 95% (Non-condensing)
Waterproof grade	IP41
Altitude	€“60m to 5,000m
Radio specifications
Antenna Type	Built-in dual-band (up to 12 antennas)
Antenna Gain	2.4G: 5 dBi 5G: 5 dBi
Maximum Number of Concurrent Users	‰¤ 256
Maximum Transmit Power	20 dBm You can lower transmit power to 20 dB maximum in 1 dB increments Note: Actual transmit power depends on local laws
Maximum Number of Non-overlapping Channels	2.4 GHz 802.11b/g ·20 MHz: 3 802.11n ·20 MHz: 3 ·40 MHz: 1 5 GHz 802.11a ·20 MHz: 5 802.11n ·20 MHz: 5 ·40 MHz: 2 802.11ac ·20 MHz: 5 ·40 MHz: 2 ·80 MHz: 1 Note: The number of non-overlapping channels allowed varies in different countries. For details, see the Country Codes and Channels compliance status
Channel Rates	802.11b: 1, 2, 5.5, and 11 Mbit/s
	802.11a/g: 6, 9, 12, 18, 24, 36, 48, and 54 Mbit/s
	802.11n data rate (2.4 GHz and 5 GHz): 6.5 Mbit/s to 600 Mbit/s 802.11ac data rate (5 GHz): 6.5 Mbit/s to 1,300 Mbit/s
Receiver Sensitivity	2.4 GHz 802.11b (CCK) -97 dBm @ 1 Mbit/s -92 dBm @ 2 Mbit/s -93 dBm @ 5.5 Mbit/s -89 dBm @ 11 Mbit/s	2.4 GHz 802.11g (non-HT20) -91 dBm @ 6 Mbit/s -90 dBm @ 9 Mbit/s -90 dBm @ 12 Mbit/s -88 dBm @ 18 Mbit/s -84 dBm @ 24 Mbit/s -81 dBm @ 36 Mbit/s -77 dBm @ 48 Mbit/s -74 dBm @ 54 Mbit/s	2.4 GHz 802.11n (HT20): -90 dBm @ MCS1 -88 dBm @ MCS2 -82 dBm @ MCS3 -79 dBm @ MCS4 -75 dBm @ MCS5 -73 dBm @ MCS6 -72 dBm @ MCS7 -87 dBm @ MCS8 -86 dBm @ MCS9 -86 dBm @ MCS10 -83 dBm @ MCS11 -79 dBm @ MCS12 -75 dBm @ MCS13 -74 dBm @ MCS14 -73 dBm @ MCS15 -87 dBm @ MCS16 -86 dBm @ MCS17 -86 dBm @ MCS18 -83 dBm @ MCS19 -79 dBm @ MCS20 -75 dBm @ MCS21 -74 dBm @ MCS22 -73 dBm @ MCS23	2.4 GHz 802.11n (HT40): -86 dBm @ MCS0 -86 dBm @ MCS1 -84 dBm @ MCS2 -80 dBm @ MCS3 -77 dBm @ MCS4 -72 dBm @ MCS5 -70 dBm @ MCS6 -68 dBm @ MCS7 -86 dBm @ MCS8 -86 dBm @ MCS9 -84 dBm @ MCS10 -80 dBm @ MCS11 -77 dBm @ MCS12 -72 dBm @ MCS13 -71 dBm @ MCS14 -70 dBm @ MCS15 -86 dBm @ MCS16 -86 dBm @ MCS17 -84 dBm @ MCS18 -80 dBm @ MCS19 -77 dBm @ MCS20 -72 dBm @ MCS21 -71 dBm @ MCS22 -70 dBm @ MCS23
	5 GHz 802.11a (non-HT20) -91 dBm @ 6 Mbit/s -90 dBm @ 9 Mbit/s -89 dBm @ 12 Mbit/s -86 dBm @ 18 Mbit/s -83 dBm @ 24 Mbit/s -80 dBm @ 36 Mbit/s -75 dBm @ 48 Mbit/s -74 dBm @ 54 Mbit/s	5 GHz 802.11n (HT20) -90 dBm @ MCS0 -88 dBm @ MCS1 -86 dBm @ MCS2 -81 dBm @ MCS3 -78 dBm @ MCS4 -74 dBm @ MCS5 -72 dBm @ MCS6 -71 dBm @ MCS7 -89 dBm @ MCS8 -86 dBm @ MCS9 -84 dBm @ MCS10 -80 dBm @ MCS11 -77 dBm @ MCS12 -72 dBm @ MCS13 -70 dBm @ MCS14 -69 dBm @ MCS15 -89 dBm @ MCS16 -86 dBm @ MCS17 -84 dBm @ MCS18 -80 dBm @ MCS19 -77 dBm @ MCS20 -72 dBm @ MCS21 -70 dBm @ MCS22 -69 dBm @ MCS23	5 GHz 802.11n (HT40) -87 dBm @ MCS0 -85 dBm @ MCS1 -83 dBm @ MCS2 -79 dBm @ MCS3 -75 dBm @ MCS4 -71 dBm @ MCS5 -68 dBm @ MCS6 -67 dBm @ MCS7 -86 dBm @ MCS8 -83 dBm @ MCS9 -81 dBm @ MCS10 -76 dBm @ MCS11 -73 dBm @ MCS12 -69 dBm @ MCS13 -68 dBm @ MCS14 -66 dBm @ MCS15 -86 dBm @ MCS16 -83 dBm @ MCS17 -81 dBm @ MCS18 -76 dBm @ MCS19 -73 dBm @ MCS20 -69 dBm @ MCS21 -68 dBm @ MCS22 -66 dBm @ MCS23
	5 GHz 802.11ac (VTH20) -89 dBm @ MCS0NSS1 -86 dBm @ MCS1NSS1 -84 dBm @ MCS2NSS1 -80 dBm @ MCS3NSS1 -77 dBm @ MCS4NSS1 -73 dBm @ MCS5NSS1 -71 dBm @ MCS6NSS1 -70 dBm @ MCS7NSS1 -65 dBm @ MCS8NSS1	5 GHz 802.11ac (VTH40) -86 dBm @ MCS0NSS1 -83 dBm @ MCS1NSS1 -81 dBm @ MCS2NSS1 -77 dBm @ MCS3NSS1 -74 dBm @ MCS4NSS1 -70 dBm @ MCS5NSS1 -68 dBm @ MCS6NSS1 -67 dBm @ MCS7NSS1 -63 dBm @ MCS8NSS1 -60 dBm @ MCS9NSS1	5 GHz 802.11ac (VTH80) -82 dBm @ MCS0NSS1 -80 dBm @ MCS1NSS1 -78 dBm @ MCS2NSS1 -74 dBm @ MCS3NSS1 -71 dBm @ MCS4NSS1 -66 dBm @ MCS5NSS1 -65 dBm @ MCS6NSS1 -64 dBm @ MCS7NSS1 -59 dBm @ MCS8NSS1 -57 dBm @ MCS9NSS1
