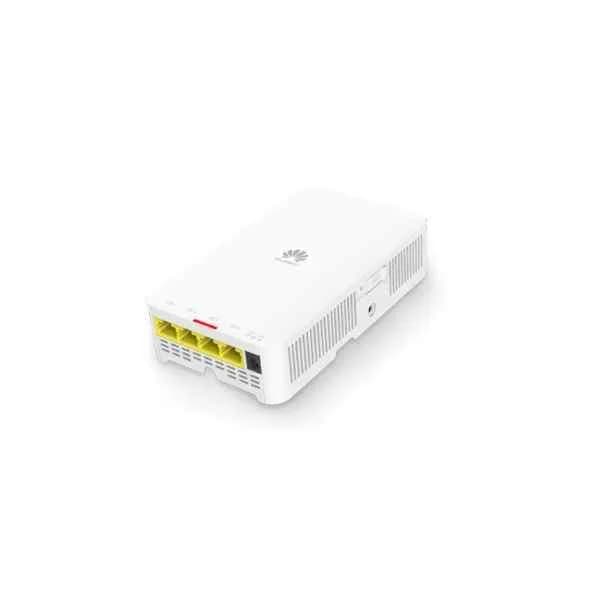

AP5510-W-GP

AP5510-W-GP Specification

Dimensions (H x W x D)

86mm x 150mm x 38.5mm

Weight

0.3kg

Interface type

Uplink: 1 x GPON

Downlink: 4 x GE

LED indicator

Indicates the power-on, startup, running, alarm, and fault states of the system.

Power input

DC: 12 V ± 5%

Maximum power consumption

14.2 W

NOTE

The actual maximum power consumption depends on local laws and regulations.

Operating temperature

€“10°C to +50°C

Storage temperature

€“40°C to +70°C

Operating humidity

5% to 95% (non-condensing)

Dustproof and waterproof grade

IP41

Altitude

€“60 m to +5000 m

Atmospheric pressure

53 kPa to 106 kPa

Antenna type

Built-in dual-band smart antenna

Antenna gain

2.4G: 3 dBi

5G: 4 dBi

Maximum number of SSIDs for each radio

‰¤ 16

Maximum number of users

‰¤256

NOTE

The actual number of users varies according to the environment.

Maximum transmit power

2.4G: 23 dBm (combined power)

5G: 23 dBm (combined power)

NOTE

The actual transmit power depends on local laws and regulations.

Power increment

1 dBm

Maximum number of non-overlapping channels

2.4 GHz（2.412GHz～2.472GHz） l

€¢ 802.11b/g

ˆ’ 20MHz：3 l

€¢ 802.11n

ˆ’ 20MHz：3

5 GHz（5.18GHz～5.825GHz） l

€¢ 802.11a

ˆ’ 20MHz：13

€¢ 802.11n

ˆ’ 20MHz：13

ˆ’ 40MHz：6 l

€¢ 802.11ac

ˆ’ 20MHz：13

ˆ’ 40MHz：6

ˆ’ 80MHz：3

NOTE

The table uses the number of non-overlapping channels supported by China as an example. The number of non-overlapping channels varies in different countries. For details, see the Country Codes & Channels Compliance.

Receiver sensitivity (Typical values)

€¢ 2.4 GHz 802.11b: -99 dBm @ 1 Mbit/s -91 dBm @ 11 Mbit/s

€¢ 2.4 GHz 802.11g: -93 dBm @ 6 Mbit/s -78 dBm @ 54 Mbit/s

€¢ 2.4 GHz 802.11n (HT20): -93 dBm @ MCS0 -72 dBm @ MCS15

€¢ 5 GHz 802.11a: -93 dBm @ 6 Mbit/s -77 dBm @ 54 Mbit/s

€¢ 5 GHz 802.11n (HT20): -92 dBm @ MCS0 -72 dBm @ MCS15

€¢ 5 GHz 802.11n (HT40): -89 dBm @ MCS0 -70 dBm @ MCS15

€¢ 5 GHz 802.11ac (VHT20): -92 dBm @ MCS0NSS1 -71 dBm @ MCS8NSS2

€¢ 5 GHz 802.11ac (VHT40): -90 dBm @ MCS0NSS1 -63 dBm @ MCS9NSS2

€¢ 5 GHz 802.11ac (VHT80): -86 dBm @ MCS0NSS1 -60 dBm @ MCS9NSS2

Safety standards

€¢ UL 60950-1 l

€¢ CAN/CSA 22.2 No.60950-1 l

€¢ IEC 60950-1 l

€¢ EN 60950-1 l

€¢ GB 4943

Radio standards

€¢ ETSI EN 300 328

€¢ ETSI EN 301 893

€¢ China's SRRC document [2002] No. 353

€¢ China's SRRC document [2002] No. 277

€¢ China's SRRC document [2012] No. 620

€¢ FCC Part 15C: 15.247

€¢ FCC Part 15C: 15.407

€¢ RSS-210

€¢ AS/NZS 4268

EMC standards

€¢ EN 301 489-1 l

€¢ EN 301 489-17

€¢ ETSI EN 60601-1-2 l

€¢ FCC Part 15

€¢ ICES-003

€¢ YD/T 1312.2-2004

€¢ ITU k.20

€¢ GB 9254

€¢ GB 17625.1

€¢ AS/NZS CISPR22

€¢ EN 55022

€¢ EN 55024

€¢ CISPR 22

€¢ CISPR 24

€¢ IEC61000-4-6 l

€¢ IEC61000-4-2

IEEE standards

€¢ IEEE 802.11a/b/g

€¢ IEEE 802.11n

€¢ IEEE 802.11ac

€¢ IEEE 802.11h

€¢ IEEE 802.11d

€¢ IEEE 802.11e

€¢ IEEE 802.11k

€¢ IEEE 802.11u

€¢ IEEE 802.11v

€¢ IEEE 802.11w

€¢ IEEE 802.11r

Security

€¢ 802.11i, Wi-Fi Protected Access 2(WPA2), WPA

€¢ 802.1X

€¢ Advanced Encryption Standards(AES), Temporal Key Integrity Protocol(TKIP)

€¢ EAP Type(s)

EMF

€¢ CENELEC EN 62311

€¢ CENELEC EN 50385

€¢ OET65

€¢ RSS-102

€¢ FCC Part1&2

€¢ FCC KDB series

RoHS

Directive 2002/95/EC & 2011/65/EU

Reach

Regulation 1907/2006/EC

WEEE

Directive 2002/96/EC & 2012/19/EU
