ASR1002-5G/K9

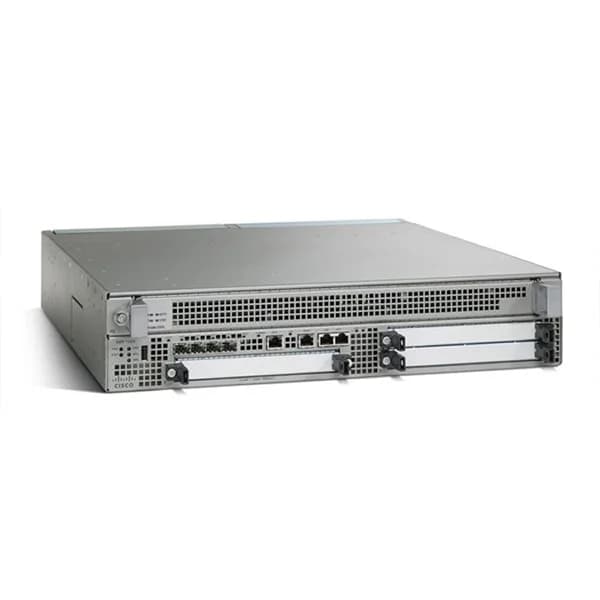

Cisco ASR 1000 Router Base Bundle ASR1002-5G/K9
TRUSTED, TRIED, PROVEN
Inventory Delivered By
& Verified By
Solutions Powered By
ASR1002-5G/K9 is a high-performance enterprise router built on a fixed, rack-mount architecture that delivers integrated WAN and LAN interfaces with advanced redundancy and throughput capabilities. It features multiple power options including redundant AC power supplies, ensuring continuous operation in mission-critical environments while simultaneously supporting integrated services such as voice, video, and WAN optimization with robust VPN security features.
ASR1002-5G/K9 offers modular capabilities through expansion slots for NIM and EHWIC, and supports a range of routing protocols including OSPF, BGP, and EIGRP for efficient network operations. Designed for enterprise use cases, this router combines dual WAN configurations with high-availability support and comprehensive firewall and QoS features to meet demanding performance and secure connectivity requirements.
ASR1002-5G/K9 price is $21,257.00, a 57.5% saving from the Cisco list price of $50,000.00. ASR1002-5G/K9 is in stock and available for next-day dispatch. (terms applied)
Request bulk order quote for ASR1002-5G/K9 for additional pricing. Browse the full Router Asr 1000 series or explore all Cisco products.
To get the detailed certification, please go to the Compliance Center.
| ASR1002-5G/K9 |  ASR1002-HX= |  ASR1006 |  ASR1001-2XOC3POS |  ASR1002X-10G-K9 | |
|---|---|---|---|---|---|
| 5G Support | No | No | No | No | No |
| Architecture | Fixed | Fixed | Modular | Fixed | Fixed |
| Broadband | N/A | N/A | Fiber Optic | N/A | N/A |
| Built-in Security Features | Firewall, Intrusion Prevention, Malware Protection | Firewall/Intrusion Prevention/Malware Protection | Firewall / Intrusion Prevention / Malware Protection | Firewall / Intrusion Prevention | Firewall, Intrusion Prevention, Malware Protection |
| Compliance Standards | FCC, CE | FCC/ICES/RoHS | IEEE 802.3, IEEE 802.11 | FCC / CE | FCC, CE, UL |
| Connectivity Type | Wired | Wired | Wired | Wired | Wired / Ethernet |
| Depth | 19 inches | 18 inches | 18 inches | 15.0 inches | 16.4 inches |
| Device Type | Router | Router | Router | Router | Router |
| EMC | N/A | N/A | N/A | N/A | N/A |
| Ethernet Technology | 10/100/1000 | 10/100/1000 | 10/100/1000 | 10/100/1000 | 10G |
| Expansion Slots | NIM, EHWIC | NIM | EHWIC / NIM | NIM | N/A |
| Features | VPN, IPv6 Compatible, Firewall, MPLS | VPN/IPv6 Compatible/Firewall/PoE/MPLS | VPN / IPv6 Compatible / Firewall / MPLS | VPN / IPv6 Compatible / Firewall / MPLS | VPN, IPv6 Compatible, Firewall, MPLS |
| Firewall Features | Yes | Yes | Yes | Yes | Yes |
| Flash Memory | 512 MB | 512 MB | 256 MB | 512 MB | 2 GB |
| Form Factor | Rack-mount | Rack-mount | Chassis | Rack-mount | Rack-mount |
| Height | 3.5 inches | 1.75 inches | 4 inches | 1.75 inches | 3.5 inches |
| High Availability Support | Supported | Supported | Supported | Supported | Supported |
| Integrated Services | Voice, Video, WAN Optimization | Voice/Video/WAN Optimization | Voice / Video / WAN Optimization | Voice / Video | Voice, Video, WAN Optimization |
| Interface Ports | RJ-45, SFP | RJ-45/SFP | RJ-45 / SFP | RJ-45 / SFP / SFP+ | SFP+ / RJ-45 |
| LAN Ports | 4 LAN Ports | 4 LAN Ports | 4 LAN Ports | 4 LAN Ports | N/A |
| Management | Managed | Managed | Managed | Managed | Managed |
| Memory | 2 GB | 2 GB | 4 GB | 4 GB | 4 GB |
| Modular Slots Available | 2 Slots | 1 Slot | 3+ Slots | 2 Slots | N/A |
| Network Protocols | IPv4, IPv6, MPLS, BGP, OSPF | IPv4/IPv6/MPLS | IPv4 / IPv6 | OSPF / BGP / EIGRP / MPLS / IS-IS / RIP / Static Routing | BGP, OSPF, EIGRP, IS-IS, RIP |
| Power | 350 W | 350 W | 550 Watts | 350 W | 240 W |
| Power Source | AC Power Supply / Redundant | AC Power Supply/Redundant | AC Power Supply / Redundant | AC Power Supply / Redundant | AC Power Supply / Redundant |
| Product Name | Cisco ASR1002-5G/K9 | Cisco ASR 1002-HX= | Cisco ASR1006 Aggregation Services Router | Cisco ASR1001-2XOC3POS | Cisco ASR1002X-10G-K9 |
| Product Type | Enterprise Router | Enterprise Router | Enterprise Router | Enterprise Router | Enterprise Router |
| QoS Features | Supported | Supported | Supported | Supported | Supported |
| Remote Management | CLI, SNMP, NetFlow, Telnet, SSH | SSH/Telnet/SNMP | SNMP / CLI / NETCONF | SSH / Telnet / SNMP | Telnet, SSH, SNMP, HTTP/HTTPS |
| Routing Protocols | OSPF / BGP / EIGRP / RIP / Static Routing | OSPF/BGP/EIGRP/MPLS/IS-IS/RIP/Static Routing | OSPF / BGP / EIGRP / MPLS / IS-IS / Static Routing | OSPF / BGP / EIGRP / MPLS / IS-IS / RIP / Static Routing | OSPF / BGP / EIGRP / MPLS / IS-IS / RIP / Static Routing |
| Safety | N/A | N/A | N/A | N/A | N/A |
| Speed/Capacity | Gigabit | Gigabit | Gigabit | Gigabit | 10gb |
| Stacking Capability | No | No | Yes | No | No |
| Telecom | N/A | N/A | N/A | N/A | N/A |
| Throughput Capacity | 5 Gbps | 2 Gbps | 20 Gbps | 20 Gbps | 10 Gbps |
| Use Case | Enterprise | Enterprise | Enterprise | Enterprise | Enterprise |
| VPN Support | IPSec / SSL VPN / DMVPN / FlexVPN | IPSec/SSL VPN/GRE/DMVPN/FlexVPN | IPSec / SSL VPN / DMVPN / FlexVPN | IPSec / SSL VPN / GRE / DMVPN / FlexVPN / N/A | IPSec / GRE / DMVPN / FlexVPN |
| WAN Configuration | Dual WAN | Dual WAN | Dual WAN | Dual WAN | Dual WAN |
| WAN Ports | 2 WAN | 2 WAN | 2 WAN | 2 WAN | 2 WAN |
| Weight | 29 lbs | 20 lbs | 30 lbs | 21 lbs | 28 lbs |
| Wi-Fi Standard | N/A | N/A | N/A | N/A | N/A |
| Width | 17 inches | 17.5 inches | 17 inches | 17.3 inches | 17.5 inches |
| Wireless Support | No | No | No | No | No |
ASR1002-5G base bundle is compact, reliable, and delivers consistent 5G system bandwidth. Ideal for mid-sized enterprise edge routing.
Easy to deploy and manage. Provides predictable routing performance with minimal latency.
Handles standard enterprise workloads efficiently. A solid choice for secure WAN and VPN applications.
Reliable Cisco router with strong throughput. Perfect for mid-range networks requiring stability and performance.
ASR1002-5G/K9 ensures consistent performance and simplifies WAN deployment. Highly recommended for enterprise networks.
The Cisco ASR1002-5G/K9 Router Base Bundle is a high-performance edge router in the ASR1000 family that delivers up to 5 Gbps of aggregate throughput, Cisco IOS® XE software and advanced services in a 1RU platform.
The ASR1002-5G/K9 supports up to 5 Gbps of full-feature throughput out of the box, expandable to 10 Gbps with a software performance license.
Key features include dual built-in 10 Gigabit Ethernet ports, four NIM slots, hardware-based encryption acceleration, Cisco IOS XE, MPLS, advanced NAT and firewall capabilities.
The ASR1002-5G/K9 is ideal for enterprise WAN aggregation, service provider edge, data center interconnect and 5G mobile backhaul applications.
Yes. The ASR1002-5G/K9 delivers low-latency, high-throughput edge services and mobile backhaul support for 5G deployments.
Software licenses are managed via Cisco IOS XE Smart Licensing, allowing centralized entitlement tracking for feature suites such as Security, AppX, IPv6 and MPLS.
The ASR1002-5G/K9 includes two onboard 10 Gigabit Ethernet ports and four Network Interface Module (NIM) slots for flexible SFP, copper or service modules.
It supports OSPFv2/v3, BGP4+, EIGRP, IS-IS, MPLS L3VPN, VRF-Lite and advanced policy-based routing.
Yes. The router supports full MPLS features, L2 and L3 VPNs and segment routing for advanced carrier-grade services.
Redundancy options include dual AC or DC hot-swappable power supplies, In-Service Software Upgrade (ISSU) and Stateful Switchover (SSO).
Specifications include a dual-core CPU, 4 GB DRAM default (expandable to 16 GB), 8 GB onboard flash, and a 1RU rack-mount design.
The ASR1002-5G/K9 supports 100–240 VAC or –48 VDC input, typical power consumption of 150 W, operating temperature 0 °C to 40 °C and standard airflow cooling.
The platform scales from 5 Gbps to 10 Gbps throughput via a software license, and supports modular NIM slot expansion for future interface needs.
It supports Cisco IOS XE virtualization, network service containers (Docker-based), VRF-Lite and Cisco NFV infrastructure for VNF hosting.
You can configure and manage it via the CLI, Cisco Prime, Cisco DNA Center, RESTCONF, NETCONF or SNMP for automation and monitoring.
Cisco offers a limited lifetime hardware warranty and optional Cisco SMARTnet® service for 24×7 TAC support, advanced replacement and software updates.
The ASR1002-5G/K9 is optimized for 5 Gbps edge services with a base performance license, fewer NIM slots than larger chassis and higher throughput than the ASR1001 variant.
