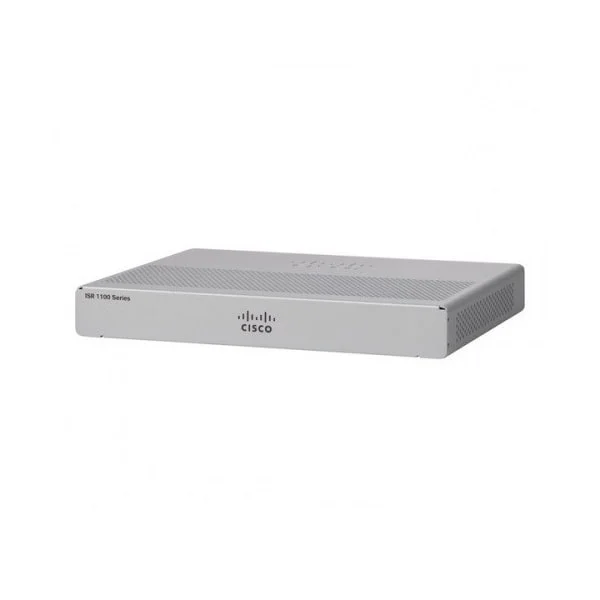

Name: ISR 1100 4P DSL Annex A w/ LTE Adv SMS/GPS 802.11ac -Z WiFi
Brand: Cisco
SKU: C1117-4PWZ
Price: 901.00 USD
Availability: InStock

Question 1

What is the Cisco ISR 1100 4P DSL Annex A with LTE Advanced SMS/GPS and 802.11ac -Z WiFi?

Accepted Answer

The Cisco ISR 1100 4P DSL Annex A is an integrated services router that combines Annex A DSL, LTE Advanced with SMS/GPS, and 802.11ac Wave 2 -Z WiFi in a compact form factor for secure, reliable branch connectivity.

Question 2

Which DSL standards does the ISR 1100 4P DSL Annex A support?

Accepted Answer

It supports ADSL2+, ADSL2 and ADSL Annex A, delivering up to 24 Mbps downstream and 3 Mbps upstream over traditional copper lines.

Question 3

How does the LTE Advanced SMS/GPS module improve connectivity?

Accepted Answer

The built-in LTE Advanced modem provides cellular failover, location tracking via GPS, and SMS diagnostics to maintain continuous WAN uptime in remote or congested environments.

Question 4

What wireless performance can I expect from the 802.11ac -Z WiFi on this router?

Accepted Answer

You get dual-band 802.11ac Wave 2 WiFi with MU-MIMO support, delivering combined speeds up to 1.3 Gbps for reliable high-density wireless access.

Question 5

How many Ethernet ports are available on the ISR 1100 4P DSL Annex A?

Accepted Answer

It features four Gigabit Ethernet LAN ports plus one Gigabit Ethernet WAN port, allowing easy network segmentation and WAN failover.

Question 6

Is the ISR 1100 4P DSL Annex A suitable for small branch or remote offices?

Accepted Answer

Yes. Its compact design, multi-WAN support, LTE failover and integrated security make it ideal for small offices, kiosks, and field deployments.

Question 7

How do I configure and manage the Cisco ISR 1100 series router?

Accepted Answer

Configuration is done via Cisco IOS XE CLI or web-based GUI. You can also manage it centrally through Cisco DNA Center or Cisco SD-WAN vManage.

Question 8

What built-in security features does the ISR 1100 4P DSL offer?

Accepted Answer

It includes zone-based firewall, intrusion prevention (IDS/IPS), VPN (DMVPN, FlexVPN, SSL), secure boot and image signing for multi-layered threat defense.

Question 9

Can I integrate this router into a Cisco SD-WAN architecture?

Accepted Answer

Yes. The ISR 1100 series supports full Cisco SD-WAN capabilities, enabling centralized policy control, path optimization and advanced analytics.

Question 10

What total throughput performance does the Cisco ISR 1100 deliver?

Accepted Answer

The ISR 1100 delivers up to 85 Mbps of aggregate throughput with all services enabled, making it suitable for small-to-medium branch environments.

Question 11

Does the router support USB-based WAN backup?

Accepted Answer

Yes. A USB port supports 3G/4G modems for secondary WAN connectivity or file transfer via FAT-formatted storage devices.

Question 12

What are the power and environmental specifications?

Accepted Answer

It operates on 12–48 V DC, draws 20 W max, and functions in 0–45 °C ambient temperature with 5–95% non-condensing humidity.

Question 13

How do I monitor LTE and SMS status on the ISR 1100?

Accepted Answer

Use the Cisco IOS XE “show cellular” commands or the web GUI Dashboard to view signal strength, network registration and SMS logs.

Question 14

What use cases best fit the ISR 1100 4P DSL Annex A?

Accepted Answer

Ideal for retail POS, small office/branch, kiosks and digital signage where multi-WAN, wireless access and secure connectivity are essential.

Question 15

What warranty and support options are available for this router?

Accepted Answer

Cisco offers a limited lifetime hardware warranty, next-business-day replacement, and optional SMARTnet support for software updates and 24/7 technical assistance.

	C1117-4PWZ	C1111-8PWN	C1111-8PLTELAWE	C1113-8PWZ	C1111-4PWB
5G Support	No	No	No	No	No
Architecture	Fixed	Fixed	Modular	Fixed	Fixed
Broadband	N/A	N/A	LTE	N/A	N/A
Built-in Security Features	Firewall / Intrusion Prevention / Malware Protection	Firewall / Intrusion Prevention / Malware Protection	Firewall / Intrusion Prevention / Malware Protection	Firewall / Intrusion Prevention / Malware Protection	Firewall / Intrusion Prevention / Malware Protection
Compliance Standards	FCC / CE / RoHS	FCC / CE / RoHS	FCC / CE / UL	FCC / CE	RoHS / FCC / CE
Connectivity Type	Wired	Wired	Wired	Wired	Wired
Depth	14.0 inches	N/A	15.7 inches	N/A	N/A
Device Type	Router	Router	Router	Router	Router
EMC	N/A	N/A	N/A	N/A	N/A
Ethernet Technology	10/100/1000	10/100/1000	10/100/1000	10/100/1000	10/100/1000
Expansion Slots	N/A	N/A	NIM / SFP+	N/A	EHWIC / NIM
Features	VPN / IPv6 Compatible / Firewall / QoS	VPN / IPv6 Compatible / Firewall / PoE	VPN / IPv6 Compatible / Firewall	VPN / Firewall / POE / IPv6 Compatible	VPN / Firewall / IPv6 / Integrated Services
Firewall Features	Yes	Yes	Yes	Yes	Yes
Flash Memory	256 MB	1 GB	1 GB	256 MB	512 MB
Form Factor	Desktop	Desktop	Desktop	Rack-mount	Desktop
Height	2.0 inches	N/A	1.8 inches	N/A	N/A
High Availability Support	Supported	Supported	Supported	Supported	Supported
Integrated Services	Voice / Video	Voice / Video / WAN Optimization	Voice / Video / WAN Optimization	Voice / Video / WAN Optimization	Voice / Video / WAN Optimization
Interface Ports	RJ-45 / SFP	RJ-45	RJ-45 / SFP / Combo Ports	RJ-45 / SFP	RJ-45 / SFP
LAN Ports	4 LAN Ports	8 LAN Ports	8 LAN Ports	8 LAN Ports	4 LAN Ports
Management	Managed	Managed	Managed	Managed	Managed
Memory	512 MB	4 GB	4 GB	1 GB	1 GB
Modular Slots Available	N/A	N/A	2 Slots	N/A	1 Slot
Network Protocols	IPv4/IPv6	IPv4 / IPv6	IPv4 / IPv6 / MPLS	IPv4 / IPv6	IPv4 / IPv6 / MPLS
Power	65 Watt	90W	65 Watt	65 Watt	60W
Power Source	AC Power Supply with Redundancy	AC Power Supply	AC Power Supply / DC Power Supply / Redundant	AC Power Supply with Redundancy	AC Power Supply / Redundant
Product Name	C1117-4PWZ Integrated Services Router	Cisco C1111-8PWN Integrated Services Router	Cisco C1111-8PLTELAWE Integrated Services Router	C1113-8PWZ	Cisco C1111-4PWB Integrated Services Router
Product Type	Enterprise Router	Enterprise Router	Enterprise Router	Enterprise Router	Enterprise Router
QoS Features	Supported	Supported	Supported	Supported	Supported
Remote Management	SSH / Telnet / SNMP	CLI / Web UI	SSH / HTTPS / SNMP	SSH / Telnet / HTTPS	CLI / Web UI / SNMP
Routing Protocols	OSPF / BGP / EIGRP / RIP / Static Routing	OSPF / BGP / EIGRP / IS-IS / RIP / Static Routing	OSPF / BGP / EIGRP / RIP / Static Routing	OSPF / BGP / EIGRP / Static Routing	OSPF / BGP / EIGRP / RIP / Static Routing
Safety	N/A	N/A	N/A	N/A	N/A
Speed/Capacity	Gigabit	Gigabit	Gigabit	Gigabit	Gigabit
Stacking Capability	No	Yes	Yes	No	No
Telecom	N/A	N/A	N/A	N/A	N/A
Throughput Capacity	1 Gbps	1 Gbps	1 Gbps	1 Gbps	0.25 Gbps
Use Case	Enterprise / Small Business	Enterprise Branch	Enterprise / Small Business	Enterprise	Enterprise / Small Business / Industrial
VPN Support	IPSec / SSL VPN / DMVPN / N/A	IPSec / SSL VPN	IPSec / SSL VPN / GRE / N/A	IPSec / SSL VPN	IPSec / SSL VPN
WAN Configuration	WAN	Dual WAN	Dual WAN	Dual WAN	Dual WAN
WAN Ports	1 WAN	2 WAN	1 WAN / Modular WAN	2 WAN	4 WAN
Weight	7 lbs	N/A	6.6 lbs	N/A	N/A
Wi-Fi Standard	N/A	N/A	N/A	N/A	WiFi 5
Width	17.0 inches	N/A	17.2 inches	N/A	N/A
Wireless Support	No	No	No	No	Yes
