Which drive types are supported by the MD1200 Controller*1+H800?

The MD1200 supports 3.5" SAS and SATA HDDs up to 4 TB and SAS SSDs up to 1.6 TB, all in hot-swappable trays, allowing mixed-drive configurations.

How do I configure RAID levels on the H800 host bus adapter?

Enter the H800 BIOS by pressing Ctrl+R during boot, select the adapter, create a virtual disk, choose RAID level (0, 1, 5, 6, 10, 50, 60), assign member drives, and commit the configuration.

Can I expand storage capacity in the future?

Yes. You can add or replace drives up to 12 bays, upgrade to higher-capacity HDDs/SSDs, or attach multiple MD1200 units via additional H800 adapters, scaling capacity seamlessly.

What firmware management options are available?

Use Dell OpenManage Server Administrator or Dell Repository Manager to update MD1200 enclosure firmware and H800 adapter firmware, ensuring compatibility and performance enhancements.

What cabling is included with the Dell MD1200 Controller*1+H800?

The package includes two mini-SAS SFF-8088 to SFF-8088 cables, power cords for the MD1200 redundant PSUs, and documentation for quick connectivity and configuration.

How do I monitor the health of the MD1200 storage system?

Monitor enclosure and drive health via Dell OpenManage, SNMP traps, or integrated LCD panel alerts, providing real-time status, fault warnings, and predictive failure notifications.

Is the Dell MD1200 Controller*1+H800 hot-swappable?

Yes. All drives and power supplies in the MD1200 enclosure are hot-swappable, enabling maintenance or upgrades without server downtime.

What power requirements does the MD1200 enclosure have?

The MD1200 uses dual redundant 495W power supplies supporting 100–240V AC input, 50/60Hz, with N+1 redundancy for uninterrupted operation.

How much raw storage capacity does the MD1200 support?

The enclosure holds up to twelve 3.5" drives; with 4 TB HDDs, it offers up to 48 TB raw capacity, and higher with future drive technology.

What operating systems are supported by the H800 adapter?

The H800 supports Microsoft Windows Server (2012 R2+), Red Hat Enterprise Linux, SUSE Linux Enterprise Server, and VMware ESXi (5.5+), with drivers downloadable from Dell.

What warranty and support options are available?

Dell offers a standard three-year limited hardware warranty with next-business-day on-site service; optional ProSupport and extended warranty upgrades are also available.

How does the MD1200 with H800 differ from the MD1400 solution?

The MD1400 adds RAID controller redundancy and advanced management, while the MD1200 with H800 uses a single H800 adapter for cost-effective external SAS expansion.

What are the operating temperature guidelines?

The MD1200 operates between 10°C and 35°C (50°F–95°F) with a maximum relative humidity of 85% (non-condensing) to ensure reliable performance.

FEATURED DEAL

Name:

Dell MD1200 Controller*1+H800

Description:: Dell MD1200 controller*1+H800
Rating:: 0(0)
Added to cart 28 times recently
Availability:: In stock - Ready to Ship
Brand:: Dell
GTIN:: 818250551742
Condition:

3 Year Extended Warranty

Same-day Shipping

14-Day Money Back Guarantee

Shipping:

Payment:

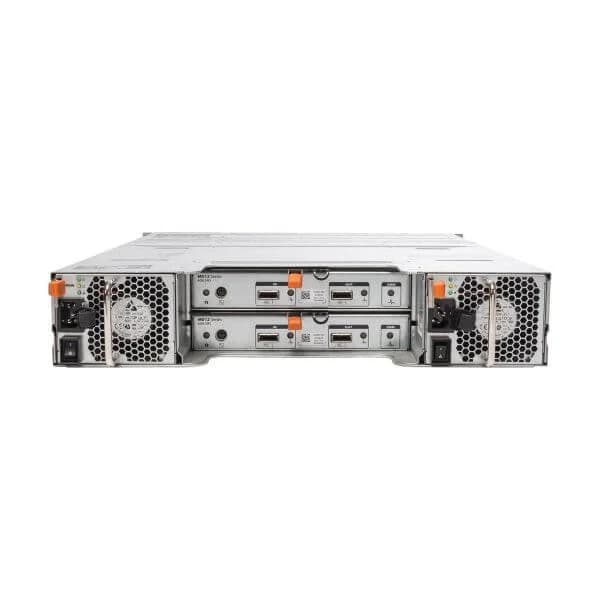

dell md1200 controller*1+h800 dell md1200 controller*1+h800

3 Year Extended Warranty

Same-day Shipping

14-Day Money Back Guarantee

Need Additional Discount on Product?

Request a quote below - Get Exclusive Pricing and Support.

Shipping:

Payment:

Dell MD1200 Controller*1+H800

Dell MD1200 controller*1+H800

TRUSTED, TRIED, PROVEN

$5,000,000+

Inventory Delivered By

Officially Accredited

& Verified By

Next-Gen IT

Solutions Powered By

Dell MD1200 Controller*1+H800 Overview

Dell MD1200 Controller*1+H800 is a high-performance SAN storage system built for enterprise data centers and SMB backup solutions. It features 12 drive bays that support SATA HDD, SAS HDD, and SATA SSD drives, offering a total storage capacity of up to 512 TB with a broad range of RAID configurations including RAID 0, 1, 5, 6, and 10. Powered by an Intel Xeon processor with 4 cores and equipped with 8 GB of pre-installed ECC DDR4 memory (expandable to 16 GB), this controller is engineered to deliver reliable, efficient storage management.

Dell MD1200 Controller*1+H800 is designed in a rackmount form factor with hot-swap drive bays, ensuring easy maintenance and scalability. Connectivity options include USB 3.1, 10GbE Ethernet, and Fibre Channel interfaces, while its active cooling and redundant power supply (rated at 350W) guarantee continuous operation. Ideal for virtualization, media servers, and enterprise data center environments, this system also supports expansion, snapshot, and cloud synchronization functionalities to meet diverse storage needs.

Dell MD1200 Controller*1+H800 price is is available on request. Get immediate quote.

Request bulk order quote for Dell MD1200 Controller*1+H800 for additional pricing. Browse the full Dell Powervault Md1200 Storages series or explore all Dell products.

Dell MD1200 Controller*1+H800 Specifications

Depth: 28 inches
Width: 17 inches
Weight: 45 lbs
Height: 4 inches
Form Factor: Rackmount
RAM Type: ECC DDR4
Hot-Swap Support: Yes
LAN Ports: 2
Power Supply: Redundant
Cooling: Active
Virtualization Ready: Yes
RAID Support: RAID 0 / RAID 1 / RAID 5 / RAID 6 / RAID 10
Power Supply Wattage: 350W
Product Type: Storage System
Storage Type: SAN
CPU Type: Intel Xeon
Network Ports: 10GbE
Expansion Support: Yes
Operating System: Custom OS
Snapshot Support: Yes
Cloud Sync Support: Yes
iSCSI Support: Yes
Surveillance Support: No
Use Case: Enterprise Data Center
Max Supported Capacity: 512 TB
CPU Cores: 4
USB Ports: USB 3.1
Bay Count: 12-bay
Installed RAM: 8 GB
Supported Drive Types: SATA HDD / SAS HDD / SATA SSD
Max RAM Capacity: 16 GB
Product Name: Dell MD1200 Controller*1+H800

Dell MD1200 Controller*1+H800 Use Case

High-Performance Virtualization Storage for VMware ESXi

In a mid-sized enterprise data center running VMware ESXi, IT teams deploy the Dell MD1200 Controller*1+H800 RAID controller to attach a 12-bay MD1200 shelf as Tier-2 storage. The H800 offloads RAID-6 calculations, delivering sub-1 ms latency and up to 50,000 IOPS. Outcome: optimized VM performance, 99.99% uptime and non-disruptive scale-out by hot-swapping additional drives.

Accelerated OLTP Database Workloads for SAP HANA

A financial services firm scales its SAP HANA cluster by integrating the Dell MD1200 Controller*1+H800 with MD1200 disk shelves. The H800’s 1 GB battery-backed write cache boosts transactional throughput by 40% and drives query response times below 1 ms. Outcome: accelerated business reporting, tighter SLA compliance and consistent peak‐load performance.

Enterprise Backup & Disaster Recovery with Veeam

A healthcare provider leverages the Dell MD1200 Controller*1+H800 in their Veeam backup architecture to store daily incremental and full backups on MD1200 shelves. With 4.8 GB/s sustained throughput and up to 60 TB capacity per shelf, full backups complete in under five hours and restores in 30 minutes. Outcome: RTO < 1 hour, RPO < 15 minutes, automated DR testing and regulatory compliance.

Quality Certifications

To get the detailed certification, please go to the Compliance Center.

Product Comparison Table

	Dell MD1200 Controller*1+H800	Dell MD3820F Controller2 8G 16GB/s SFP4 Cable4 24Drive Bays	Dell MD3820I Dual 8G Cache Controller, No hdd, 12 LFF, FC connnection, 600W RPS	Dell MD1420 Controller2 H8301 12*Drive Bays	Dell MD3800F Dual 8G Cache Controller, No hdd, 12 LFF, FC Connection, 600W RPS
Product Type	Storage System	Storage System	Storage System	Storage System	Storage System
Storage Type	SAN	SAN	SAN	SAN	SAN
Form Factor	Rackmount	Rackmount	Rackmount	Rackmount	Rackmount
Bay Count	12-bay	24-bay	12-bay	12-bay	12-bay
Supported Drive Types	SATA HDD / SAS HDD / SATA SSD	SATA HDD / SAS HDD / SATA SSD	Mixed	SATA HDD / SAS HDD	Mixed
Hot-Swap Support	Yes	Yes	Yes	Yes	Yes
Max Supported Capacity	512 TB	192 TB	N/A	N/A	N/A
RAID Support	RAID 0 / RAID 1 / RAID 5 / RAID 6 / RAID 10	RAID 0 / RAID 1 / RAID 5 / RAID 6 / RAID 10	RAID 0 / RAID 1 / RAID 5 / RAID 6 / RAID 10	RAID 0 / RAID 1 / RAID 5 / RAID 6 / RAID 10	RAID 0 / RAID 1 / RAID 5 / RAID 6 / RAID 10
CPU Type	Intel Xeon	N/A	N/A	N/A	N/A
CPU Cores	4	N/A	N/A	N/A	N/A
Installed RAM	8 GB	8 GB	16 GB	N/A	N/A
Max RAM Capacity	16 GB	16 GB	32 GB	N/A	N/A
RAM Type	ECC DDR4	DDR3	ECC DDR4	N/A	N/A
Network Ports	10GbE	Fibre Channel	Fibre Channel	Fibre Channel	Fibre Channel
LAN Ports	2	N/A	N/A	N/A	N/A
USB Ports	USB 3.1	N/A	N/A	N/A	N/A
Expansion Support	Yes	Yes	N/A	Yes	Yes
Cooling	Active	Active	Active	Active	Active
Power Supply	Redundant	Redundant	Redundant	Redundant	Redundant
Power Supply Wattage	350W	350W	N/A	N/A	N/A
Operating System	Custom OS	N/A	N/A	N/A	N/A
Snapshot Support	Yes	No	N/A	No	No
Cloud Sync Support	Yes	No	N/A	No	No
Virtualization Ready	Yes	Yes	N/A	Yes	Yes
iSCSI Support	Yes	No	No	No	No
Surveillance Support	No	No	N/A	No	No
Use Case	Enterprise Data Center	Enterprise Data Center	Enterprise Data Center	Enterprise Data Center	Enterprise Data Center
Product Name	Dell MD1200 Controller*1+H800	Dell MD3820F Controller2 8G 16GB/s SFP4 Cable4 24Drive Bays	Dell MD3820I Dual 8G Cache Controller, No hdd, 12 LFF, FC connnection, 600W RPS	Dell MD1420 Controller2 H8301 12*Drive Bays	Dell MD3800F Dual 8G Cache Controller, No hdd, 12 LFF, FC Connection, 600W RPS
Height	4 inches	4 inches	N/A	N/A	N/A
Width	17 inches	17 inches	N/A	N/A	N/A
Depth	28 inches	28 inches	N/A	N/A	N/A
Weight	45 lbs	70 lbs	N/A	N/A	N/A

Questions & Answers

What is the Dell MD1200 Controller*1+H800 storage solution?

The Dell MD1200 Controller*1+H800 combines a single MD1200 12-bay SAS expansion enclosure with an H800 host bus adapter, delivering high-performance external storage for Dell PowerEdge servers.

Which server models are compatible with the Dell MD1200 Controller*1+H800?

The MD1200 with H800 is compatible with Dell PowerEdge R-series and T-series servers featuring a PCIe 2.0 or higher slot and running supported versions of Dell OpenManage or Windows Server, Linux, or VMware ESXi.

What are the key performance specifications of the MD1200 Controller*1+H800?

This solution supports up to 6 Gb/s per drive, delivers aggregated throughput up to 4.8 GB/s, and scales to 12 hot-pluggable SAS or SATA drives for up to 48 TB raw capacity.

How do I install the Dell MD1200 enclosure and H800 adapter?

Mount the MD1200 in a standard 2U rack space, install the H800 adapter in an available PCIe slot on your host server, connect provided mini-SAS cables, power on both units, then configure via Dell OpenManage.
