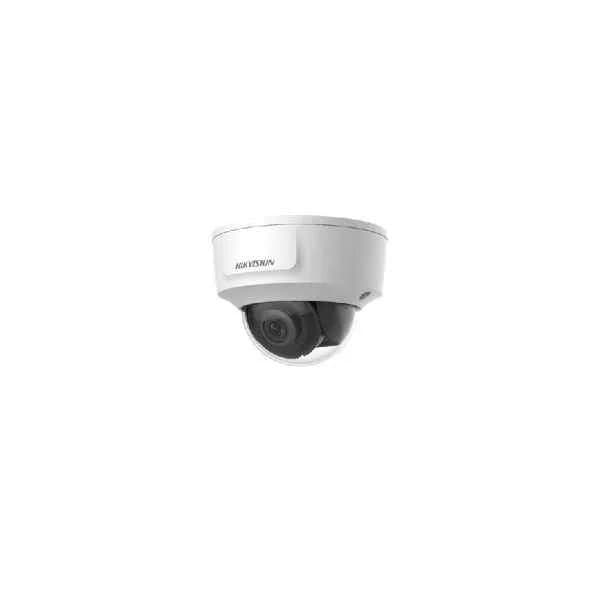

DS-2CD2185G0-IMS

Specification Of DS-2CD2185G0-IMS

DS-2CD2185G0-IMS Specification

DS-2CD2185G0-IMS Specification

• Camera
• Image Sensor1/2.5" Progressive Scan CMOS
• Min. IlluminationColor: 0.028 Lux @(F2.0, AGC ON), 0 Lux with IR
• Shutter Speed1/3 s to 1/100,000 s
• Slow ShutterYes
• Wide Dynamic Range120dB
• Day & NightIR Cut Filter
• Angle AdjustmentPan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°

• Lens
• Lens Type2.8/4/6 mm
• FOV2.8 mm, horizontal FOV: 102°, vertical FOV: 53°, diagonal FOV: 124° ;4 mm, horizontal FOV: 79°, vertical FOV: 42°, diagonal FOV: 95° ;6 mm, horizontal FOV: 50° , vertical FOV: 28° , diagonal FOV: 59°
• ApertureF2.0
• Lens MountΦ12

• Illuminator
• IR RangeUp to 30 m
• Wavelength850nm

• Video
• Max. Resolution3840 2160
• Main Stream50Hz: 20fps (3840 2160), 25fps (3072 1728, 1920 1080, 1280 720) ;60Hz: 20fps (3840 2160, 3072 1728, 1920 1080, 1280 720)
• Sub Stream50Hz: 25fps (640 480, 640 360, 320 240) ;60Hz: 20fps (640 480, 640 360, 320 240)
• Video Compression Main stream: H.265/H.264 ;Sub-stream: H.265/H.264/MJPEG
• Video Bit Rate32 Kbps to 16 Mbps
• H.264 TypeMain Profile/High Profile
• H.265 TypeMain Profile
• H.264+No
• H.265+No
• Region of Interest (ROI)Support 1 fixed region for main stream and sub-stream

• Audio
• Environment Noise FilteringYes
• Audio Sampling Rate8kHz/16kHz/32kHz/44.1kHZ/48kHz
• Audio Compression G722.1/G.711/G726/MP2L2/PCM/MP3
• Audio Bit Rate64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/8Kbps-320Kbps(MP3)

• Network
• Simultaneous Live ViewUp to 6 channels
• APIONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, Ehome
• ProtocolsTCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
• User/HostUp to 32 users ,3 levels: Administrator, Operator and User
• SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS 1.2, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, TLS1.2
• Network StoragemicroSD/SDHC/SDXC card (128 GB), local storage and NAS (NFS,SMB/CIFS), ANR; Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
• ClientiVMS-4200, Hik-Connect, Hik-Central
• Web BrowserPlug-in required live view: IE8+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+ Local Service: Chrome 41.0+, Firefox 30.0+
• Alarm TriggerMotion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD full, HDD error

• Image
• Day/Night SwitchDay/Night/Auto/Schedule/Triggered by Alarm In
• DNR3D DNR
• Image EnhancementBLC/3D DNR/HLC
• Image SettingsSaturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser

• Interface
• Audio1 input (line in/mic in, terminal block), 1 output ( two-core terminal block), mono sound
• Alarm 1 input, 1 output (max. 12 VDC, 30 mA), terminal block
• Video Output1 HDMI„¢, type D, female plug (-M)
• On-board StorageBuilt-in Micro SD/SDHC/SDXC slot, up to 128 GB
• Hardware ResetYes
• Communication Interface1 RJ45 10M/100M self-adaptive Ethernet port

• Smart Feature-Set
• Smart EventLine crossing detection, intrusion detection
• Face DetectionYes

• General
• General FunctionAnti-flicke, heartbeat, mirror, privacy masks, password reset via e-mail, pixel counter, HTTP listening
• Startup and Operating ConditionsIR on: -10 °C to 40 °C (14 °F to 104 °F), humidity 95% or less (non-condensing) ; IR off: -10 °C to 50 °C (14 °F to 122 °F), humidity 95% or less (non-condensing)
• Power Supply12 VDC ± 25%, Φ 5.5 mm coaxial power plug,PoE (802.3af, class 3)
• Power Consumption and Current12 VDC, 0.6 A, max. 7 W; PoE (802.3af, 36 V to 57 V), 0.3 A to 0.2 A, max. 8. 5W
• Camera DimensionCamera: Φ 119 90 mm (Φ 4.7" 3.5")
• Camera WeightCamera: Approx. 520 g (1.1 lb.) With package: Approx. 750 g (1.7 lb.)

• Approval
• ProtectionIK10

]
