Box camera delivers sharp and stable images.
DS-2CD7046G0-(AP)
Original Stock
Ready to Ship

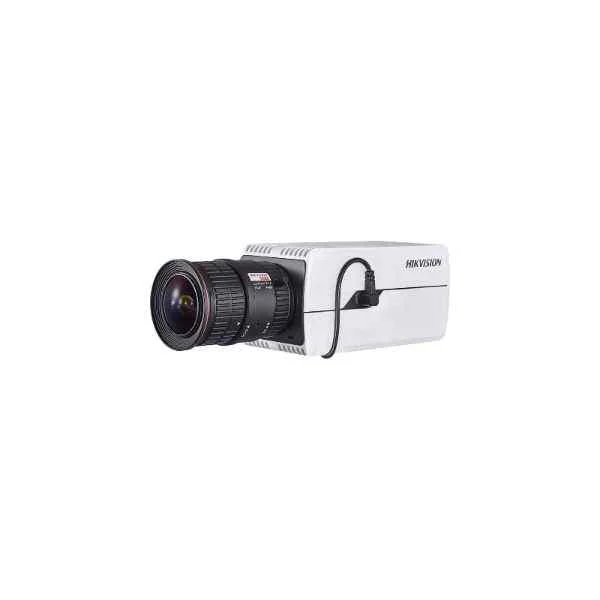

4 MP DeepinView Moto Varifocal Box Camera
FEATURED DEAL
Name:
DS-2CD7046G0-(AP)
- Description:
- 4 MP DeepinView Moto Varifocal Box Camera
- Rating:
Added to cart 28 times recently
- Availability:
In stock - Ready to Ship
- Brand:
- Hikvision
- Condition:
3 Year Extended Warranty
Same-day Shipping
14-Day Money Back Guarantee
Shipping:
Payment:
3 Year Extended Warranty
Same-day Shipping
14-Day Money Back Guarantee
Need Additional Discount on Product?
Request a quote below - Get Exclusive Pricing and Support.
Shipping:
Payment:
TRUSTED, TRIED, PROVEN
Officially Accredited
& Verified By
Next-Gen IT
Solutions Powered By
DS-2CD7046G0-(AP) Overview
DS-2CD7046G0-(AP) is an IP bullet camera featuring a 4MP resolution with a fixed lens and a 1/2.8" progressive scan CMOS sensor. It supports infrared night vision up to 30m, H.265+ video compression, 2-Way Audio, and PoE connectivity, while being fully ONVIF compliant and offering local storage via a MicroSD slot.
DS-2CD7046G0-(AP) is engineered for demanding surveillance applications such as indoor retail, perimeter defense, license plate recognition, and warehouse monitoring. Its robust design, weather resistance of IP67, and compatibility with NVR and cloud solutions make it ideally suited for high-security zones and varied outdoor and indoor environments.
DS-2CD7046G0-(AP) price is is available on request. Get immediate quote.
Request bulk order quote for DS-2CD7046G0-(AP) for additional pricing. Browse the full Hikvision Deepinview Series Network Cameras series or explore all Hikvision products.
DS-2CD7046G0-(AP) Specifications
- Product Type
- Security Camera
- Camera Type
- Bullet
- Technology
- IP Camera
- Resolution
- 4MP
- Lens Type
- Fixed
- Smart Features
- N/A
- Mounting Type
- Wall
- Color
- White
- Use Case
- Retail, Perimeter Protection, Warehouse
- Focal Length
- 2.8mm
- Image Sensor
- 1/2.8" CMOS
- Frame Rate
- 30 FPS
- Infrared Night Vision
- 30m
- Low Light Technology
- IR
- Day/Night Mode
- True Day/Night (ICR)
- Video Compression
- H.265+
- Audio Support
- 2-Way Audio
- Storage Option
- MicroSD Slot
- Max Storage Capacity
- 128 GB
- Power Type
- PoE
- Weather Rating
- IP67
- Vandal Resistance
- N/A
- ONVIF Compliant
- Yes
- Product Name
- DS-2CD7046G0-(AP)
- Height
- 6.5 inches
- Width
- 4.6 inches
- Depth
- 3.0 inches
- Weight
- 2.2 lbs
Quality Certifications
To get the detailed certification, please go to the Compliance Center.
Product Comparison Table
| DS-2CD7046G0-(AP) |  iDS-2CD70C5G0-AP |  iDS-2CD7026G0/S-AP |  iDS-2CD75C5G0-IZHS(Y)(R) |  DS-2CD7185G0-IZS | |
|---|---|---|---|---|---|
| Product Type | Security Camera | Security Camera | Security Camera | Security Camera | Security Camera |
| Camera Type | Bullet | Bullet | Dome | Bullet | Turret |
| Technology | IP Camera | IP Camera | IP Camera | IP Camera | IP Camera |
| Resolution | 4MP | 5MP | 2MP | 5MP | 8MP |
| Lens Type | Fixed | Fixed | Fixed | Fixed | Fixed |
| Smart Features | N/A | Motion Detection | N/A | Motion Detection | N/A |
| Mounting Type | Wall | Wall | Ceiling | Wall | Wall |
| Color | White | Black | Black | Black | Black |
| Use Case | Retail, Perimeter Protection, Warehouse | Perimeter Protection | Indoor / Retail / Warehouse | Perimeter Protection | Indoor, Retail, Perimeter Protection, Warehouse Surveillance |
| Focal Length | 2.8mm | 4mm | 2.8mm | 2.8mm | 2.8mm |
| Image Sensor | 1/2.8" CMOS | 1/2.8" CMOS | 1/2.8" CMOS | 1/2.8" CMOS | 1/2.8" CMOS |
| Frame Rate | 30 FPS | 30 FPS | 30 FPS | 30 FPS | 30 FPS |
| Infrared Night Vision | 30m | 30m | 30m | 50m | 30m |
| Low Light Technology | IR | EXIR | EXIR | EXIR | EXIR |
| Day/Night Mode | True Day/Night (ICR) | True Day/Night (ICR) | True Day/Night (ICR) | True Day/Night (ICR) | True Day/Night (ICR) |
| Video Compression | H.265+ | H.265 | H.265+ | H.265+ | H.265+ |
| Audio Support | 2-Way Audio | No Audio | Audio Input | No Audio | No Audio |
| Storage Option | MicroSD Slot | MicroSD Slot | MicroSD Slot | MicroSD Slot | MicroSD Slot |
| Max Storage Capacity | 128 GB | 256 GB | 256 GB | 128 GB | 256 GB |
| Power Type | PoE | PoE | PoE | PoE | PoE |
| Weather Rating | IP67 | IP67 | IP67 | IP67 | IP67 |
| Vandal Resistance | N/A | N/A | IK10 | IK10 | None |
| ONVIF Compliant | Yes | Yes | Yes | Yes | Yes |
| Product Name | DS-2CD7046G0-(AP) | Hikvision iDS-2CD70C5G0-AP | iDS-2CD7026G0/S-AP | iDS-2CD75C5G0-IZHS(Y)(R) | DS-2CD7185G0-IZS |
| Height | 6.5 inches | 6.5 inches | 4.1 inches | 2.8 inches | N/A |
| Width | 4.6 inches | 4.3 inches | 3.1 inches | 5.7 inches | N/A |
| Depth | 3.0 inches | 2.6 inches | 3.1 inches | 3.1 inches | N/A |
| Weight | 2.2 lbs | 1.8 lbs | 1.76 lbs | 2.2 lbs | N/A |
Reviews & Ratings
H
Hamid Saeed
5
Works well with external lenses.
V
Victor Ramos
5
Reliable DeepinView performance.
L
Lars Jensen
5
Consistent image quality for analytics.
S
Sohail Ahmed
5
Solid enterprise camera option.
Questions & Answers
What is the resolution and sensor type of the DS-2CD7046G0-(AP) camera?
The DS-2CD7046G0-(AP) features a 4 MP progressive CMOS sensor delivering up to 2688 × 1520 resolution for crisp, detailed video.
How does the motorized varifocal lens on this camera work?
The built-in 2.8–12 mm motorized varifocal lens allows remote adjustment of field of view from 100° to 27° without manual focus, optimizing framing on demand.
Does the DS-2CD7046G0-(AP) support low-light or night vision recording?
Yes. With its IR illuminators reaching up to 30 m and a high-sensitivity sensor, the camera delivers clear black-and-white imaging in complete darkness.
What DeepinView smart analytics are available?
DeepinView analytics include face detection, perimeter protection, intrusion detection, and people counting, all processed on-device for real-time alerts.
What is the camera’s ingress protection rating?
This box camera is rated IP67, ensuring total dust ingress protection and water resistance for outdoor and harsh-environment installations.
What environmental temperature range can the camera operate in?
The DS-2CD7046G0-(AP) operates reliably in temperatures from –40 °C to 60 °C (–40 °F to 140 °F), making it suitable for extreme climates.
How is power delivered to this camera?
The camera supports IEEE 802.3at PoE+ for both power and data over a single Ethernet cable, simplifying installation and reducing wiring costs.
What video compression formats does the camera support?
It supports H.265+, H.265, H.264+, and MJPEG codecs to optimize bandwidth and storage efficiency without sacrificing image quality.
Which storage options are available on the DS-2CD7046G0-(AP)?
On-board storage is provided via a MicroSD/SDHC/SDXC card slot (up to 256 GB), and network storage options include NAS (NFS, SMB/CIFS) and Hikvision DVR/NVR.
Is the DS-2CD7046G0-(AP) compatible with third-party VMS platforms?
Yes. The camera is ONVIF Profile S/G compliant, ensuring interoperability with most major video management systems and network video recorders.
Can I view the camera remotely on a mobile device?
Remote viewing is supported via the Hik-Connect app on iOS and Android, or the iVMS-4500 client, enabling live view and playback from anywhere.
How do I set up motion detection and alert notifications?
Use the web interface or app to define motion detection zones, sensitivity levels, and link them to push notifications, email triggers, or relay outputs.
What mounting options are recommended for this box camera?
This camera supports standard C-mount lenses and can be mounted on wall brackets, ceilings, or poles using compatible KB-Series and PFA-Series mounts.
What power consumption should I expect?
Under typical operation with IR off, the camera consumes up to 7 W. With IR on and PoE+ input, consumption peaks at approximately 12 W.
Does the camera come with a warranty?
Hikvision provides a two-year limited warranty covering defects in materials and workmanship under normal use and maintenance.
What are the ideal use cases for the DS-2CD7046G0-(AP)?
This camera is ideal for critical infrastructure, perimeter security, parking lots, industrial sites, and any application requiring high-resolution analytics in challenging environments.
