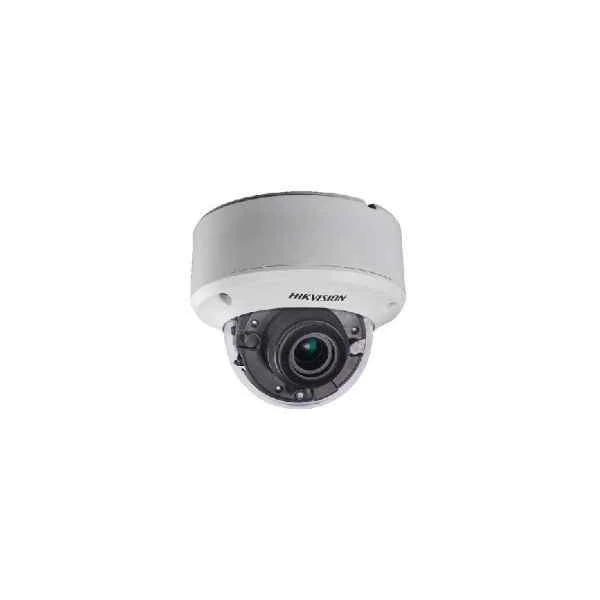

DS-2CE59U8T-AVPIT3Z

Specification Of DS-2CE59U8T-AVPIT3Z

DS-2CE59U8T-AVPIT3Z Specification

DS-2CE59U8T-AVPIT3Z Specification

• Camera
• Slow ShutterMax. 16 times
• Lens2.8 mm to 12 mm motorized vari-focal lens
• Horizontal Field of View108.1° to 45.6°
• Lens MountΦ14
• Day & NightIR cut filter
• SynchronizationInternal synchronization
• WDR (Wide Dynamic Range)120 dB
• Angle AdjustmentPan: 0° to 355°, Tilt:0° to 75°, Rotate: 0° to 355°
• Image Sensor8.29 megapixel progressive scan CMOS
• Signal SystemPAL/NTSC
• Frame RatePAL: 8 MP@12.5fps, 5 MP@20fps, 4 MP@25fps, 1080p@25fpsNTSC: 8 MP@15fps, 5 MP@20fps, 4 MP@30fps, 1080p@30fps
• Resolution3840 (H) 2160 (V)
• Min. illuminationColor: 0.003 Lux@(F1.2, AGC ON), 0 Lux with IR
• Shutter TimePAL: 1/12.5 s to 1/10,000 s NTSC: 1/15 s to 1/10,000 s

• Menu
• AGCSupport
• Day/Night ModeAuto/Color/BW (Black and White)
• White BalanceAuto/Manual/Natural
• Privacy MaskON/OFF, 4 programmable privacy masks
• Backlight CompensationSupport
• 3D DNR (Digital Noise Reduction)Level 1 to 10
• LanguageEnglish
• FunctionsContrast, Sharpness, Saturation, Mirror, Defog, HLC

• Interface
• TVI Video Output1 HD analog output
• CVBS Video Output1 CVBS output (75Ω/BNC)

• General
• Operating Condition-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
• Power Supply12 VDC ±25%-A: 12 VDC ±25%, 24 VDC ±25%*You are recommended to use one power adapter to supply the power for one camera.
• Power ConsumptionMax. 9 W-A: Max. 10.5 W
• Protection LevelIP67, IK10
• MaterialMetal
• IR RangeUp to 60 m
• CommunicationUp the coax, Protocol: HIKVISION-C (TVI output)
• DimensionsΦ 145.2 mm 124.1 mm (Φ 5.72" 4.89" )
• WeightApprox. 645 g (1.42 lb.)

]
