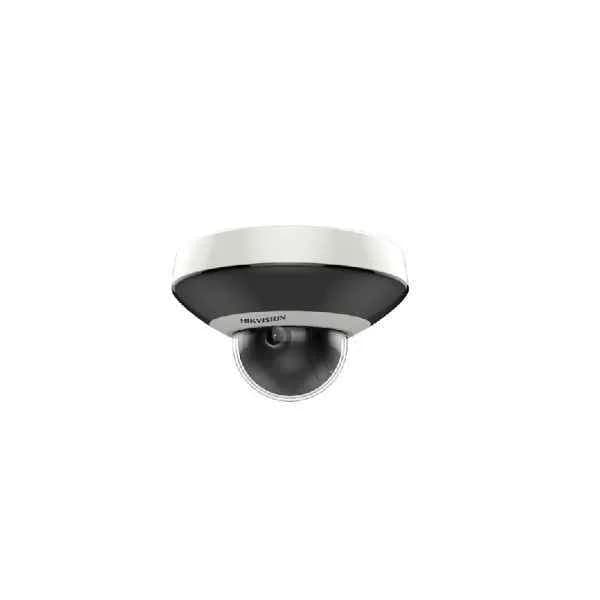

DS-2DE1A400IW-DE3

Specification Of DS-2DE1A400IW-DE3

DS-2DE1A400IW-DE3 Specification

DS-2DE1A400IW-DE3 Specification

• Lens
• FOV2.8 mm: horizontal FOV 103.8°; vertical FOV 57.6°, diagonal FOV 123°,4mm: horizontal FOV 82.5°; vertical FOV 44.5°, diagonal FOV 97.7°
• Working Distance2.8 mm: > 0.8 m; 4 mm: > 1.1 m
• Aperture RangeF1.6
• Focal Length2.8 mm, 4 mm, optional

• Image
• Image EnhancementHLC, BLC, 3D DNR, EIS, Regional Exposure, Regional Focus
• Sub-Stream50Hz: 25fps (704 576, 640 480, 352 288),60Hz: 30fps (704 480, 640 480, 352 240)
• Max. Resolution2560 1440
• Main Stream50Hz: 25fps (2560 1440, 2048 1536, 1920 1080, 1280 960, 1280 720),60Hz: 30fps (2560 1440, 2048 1536, 1920 1080, 1280 960, 1280 720)
• Third Stream50Hz: 25fps (1280 720, 704 576, 640 480, 352 288),60Hz: 30fps (1280 720, 704 480, 640 480, 352 240)

• Network
• Network StorageBuilt-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB; NAS (NPS, SMB/ CIPS), ANR
• ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, DHCP, PPPoE, Bonjour
• APIOpen-ended, support ONVIF, ISAPI, and CGI, support HIKVISION SDK and Third-Party Management Platform
• Simultaneous Live ViewUp to 20 channels
• User/HostUp to 32 users,3 levels: Administrator, Operator and User
• ClientiVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect
• Web BrowserIE 8 to 11, Chrome 31.0 to 44, Firefox 30.0 to 51
• Security MeasuresUser authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering
• Alarm LinkageAlarm actions, such as Memory Card Video Record, Trigger Recording, Notify Surveillance Center, Upload to FTP/Memory Card/NAS, Send Email, etc.

• Interface
• Audio Input1-ch audio input (line in)
• Audio Output1-ch audio output (line out)
• Network Interface1 RJ45 10 M/100 M Ethernet, PoE

• Compression Standard
• H.264+Yes
• H.265+Yes
• H.264 TypeBaseline Profile/Main Profile/High Profile
• Video CompressionMain Stream: H.265+/H.265/H.264+/H.264,Sub-stream: H.265/H.264/MJPEG,Third Stream: H.265/H.264/MJPEG
• Video Bitrate32 Kbps to 16384 Kbps
• Audio CompressionG.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM
• Audio Bitrate64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 Kbps to 192 Kbps(MP2L2)
• SVCYes

• Camera Module
• Image Sensor1/3" progressive scan CMOS
• Min. IlluminationColor: 0.005 Lux @(F1.6, AGC ON),B/W: 0.001 Lux @(F1.6, AGC ON),0 Lux with IR
• White BalanceAuto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp
• GainAuto/Manual
• Shutter Time1/1 s to 1/30,000 s
• Day & NightIR Cut Filter
• Digital Zoom16
• Privacy Mask24 programmable privacy masks
• Focus ModeAuto/Semi-automatic/Manual
• WDR120 dB WDR

• Supplement Light
• IR DistanceUp to 15 m
• Smart IRYes

• PTZ
• Movement Range (Pan)0° to 330°
• Pan SpeedConfigurable, from 0.1°/s to 100°/s, ,Preset speed: 100°/s
• Movement Range (Tilt)From 0° to 90°
• Tilt SpeedConfigurable, from 0.1°/s to 100°/s,Preset Speed: 100°/s
• Proportional ZoomYes
• Presets300
• Power-off MemoryYes
• Park ActionPreset
• 3D PositioningYes
• PTZ Status DisplayYes
• Preset FreezingYes
• Scheduled TaskPreset, Dome Reboot, Dome Adjust

• Smart Features
• Basic Event DetectionMotion Detection, Video Tampering Detection, Exception
• Smart DetectionFace Detection, Intrusion Detection, Line Crossing Detection, Region Entrance Detection, Region Exiting Detection, Object Removal Detection, Unattended Baggage Detection, Audio Exception Detection
• Smart RecordANR (Automatic Network Replenishment), Dual-VCA
• ROIMain stream, sub-stream, and third stream respectively support four fixed areas.

• General
• MaterialAluminum alloy, PC, PC+ABS
• DimensionsΦ 124.3 mm 76.9 mm (Φ 4.89" 3.03")
• WeightApprox. 450 g (0.99 lb.)
• Protection LevelIP66 Standard, TVS 2000V Lightning Protection, Surge Protection and Voltage Transient Protection
• Power12 VDC, 1.0 A (Max. 12 W)PoE (802.3af), 36 to 57 VDC, 0.35 A (Max. 12 W)Including max. 3.6W for IR
• Working Temperature-10°C to 55°C (-14°F to 131°F)
• Working Humidity‰¤ 90%

]
