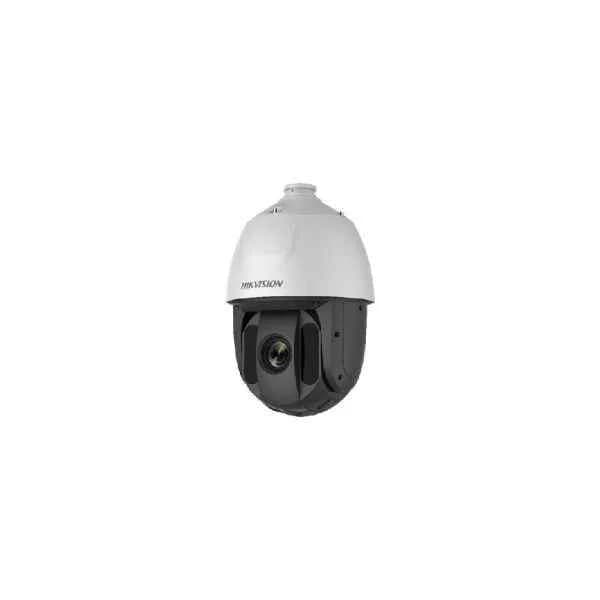

DS-2DE5425IW-AE

Specification Of DS-2DE5425IW-AE

DS-2DE5425IW-AE Specification

DS-2DE5425IW-AE Specification

• Lens
• FOVHorizontal field of view: 59.5° to 2.6° (Wide-Tele),Vertical field of view: 35.7° to 1.5° (Wide-Tele),Diagonal field of view: 66.6 to 3.0° (Wide-Tele)
• Zoom SpeedApprox. 3.6 s (optical lens, wide-tele)
• Working Distance10 mm to 1500 mm (wide-tele)
• Aperture RangeF1.6 to F3.5
• Focal Length4.8 mm to 120 mm, 25 optical zoom

• Image
• Image EnhancementHLC/BLC/3D DNR/Defog/EIS/Regional Exposure/Regional Focus
• Sub-Stream50Hz: 25fps (704 576, 640 480, 352 288),60Hz: 30fps (704 480, 640 480, 352 240)
• Max. Resolution2560 1440
• Main Stream50Hz: 25fps (2560 1440, 2048 1536, 1920 1080, 1280 960, 1280 720),50fps (1920 1080, 1280 960, 1280 720),60Hz: 30fps (2560 1440, 2048 1536, 1920 1080, 1280 960, 1280 720),60fps (1920 1080, 1280 960, 1280 720)
• Third Stream50Hz: 25fps (2560 1440, 2048 1536, 1920 1080, 1280 960, 1280 720, 704 576, 640 480, 352 288),60Hz: 30fps (2560 1440, 2048 1536, 1920 1080, 1280 960, 1280 720, 704 480, 640 480, 352 240)

• Network
• Network StorageBuilt-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB; NAS (NPS, SMB/ CIPS), ANR
• ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
• APIOpen-ended, support ONVIF, ISAPI, and CGI, support HIKVISION SDK and Third-Party Management Platform
• Simultaneous Live ViewUp to 20 channels
• User/HostUp to 32 users,3 levels: Administrator, Operator and User
• ClientiVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect
• Web BrowserIE 8 to 11, Chrome 31.0 to 44, Firefox 30.0 to 51
• Security MeasuresUser authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering
• Alarm LinkageAlarm actions, such as Preset, Patrol Scan, Pattern Scan, Trigger Recording, Trigger Alarm Output, Notify Surveillance Center, Upload to FTP/Memory Card/NAS, Send Email, etc.

• Interface
• Alarm Output1-ch alarm output
• Alarm Input2-ch alarm input
• Audio Input1-ch audio input, 2 to 2.4 Vp-p, 1 KΩ ± 10%
• Audio Output1-ch audio output, line level, impedance: 600 Ω
• Network Interface1 RJ45 10 M/100 M Ethernet, Hi-PoE

• Compression Standard
• H.264+Support
• H.265+Support
• H.264 TypeBaseline Profile/Main Profile/High Profile
• Video CompressionMain Stream: H.265+/H.265/H.264+/H.264,Sub-stream: H.265/H.264/MJPEG,Third Stream: H.265/H.264/MJPEG
• H.265 TypeBaseline Profile/Main Profile/High Profile
• Video Bitrate32 Kbps to 16384 Kbps
• Audio CompressionG.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM
• Audio BitrateG.711alaw/G.711ulaw: 64 Kbps,G.722.1/G.726: 16 Kbps,MP212/PCM: 32 Kbps to 160 Kbps
• SVCSupport

• Camera Module
• Image Sensor1/2.5" progressive scan CMOS
• Min. IlluminationColor: 0.005 Lux @(F1.6, AGC ON),B/W: 0.001Lux @(F1.6, AGC ON),0 Lux with IR
• White BalanceAuto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp
• GainAuto/Manual
• Shutter Time50Hz: 1/1 s to 1/30,000 s,60Hz: 1/1 s to 1/30,000 s
• Day & NightIR Cut Filter
• Digital Zoom16
• Privacy Mask24 programmable privacy masks
• Focus ModeAuto/Semi-automatic/Manual
• WDR120 dB WDR (not supported by full frame rate)

• Supplement Light
• IR Distance150 m
• Smart IRSupport

• PTZ
• Movement Range (Pan)360° endless
• Pan SpeedConfigurable, from 0.1°/s to 120°/s,Preset speed: 120°/s
• Movement Range (Tilt)From -15° to 90° (auto-flip)
• Tilt SpeedConfigurable, from 0.1°/s to 80°/s,Preset Speed: 80°/s
• Proportional ZoomSupport
• Presets300
• Patrol Scan8 patrols, up to 32 presets for each patrol
• Pattern Scan4 pattern scans, record time over 10 minutes for each scan
• Power-off MemorySupport
• Park ActionPreset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan
• 3D PositioningSupport
• PTZ Status DisplaySupport
• Preset FreezingSupport
• Scheduled TaskPreset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan/Dome Reboot/Dome Adjust/Aux Output

• Smart Features
• Basic Event DetectionMotion Detection, Video Tampering Detection, Exception
• Smart DetectionIntrusion Detection, Line Crossing Detection, Region Entrance Detection, Region Exiting Detection, Object Removal Detection, Unattended Baggage Detection, Audio Exception Detection
• Smart RecordANR (Automatic Network Replenishment), Dual-VCA
• ROIMain stream, sub-stream, and third stream respectively support four fixed areas.

• General
• MaterialADC 12, PC+10% GF
• DimensionsΦ 208 mm 345 mm (Φ 8.19" 13.58")
• WeightApprox. 3.3 kg (7.28 lb)
• Protection LevelIP66 Standard, TVS 4000V Lightning Protection, Surge Protection and Voltage Transient Protection
• Power24 VAC, 2.2 A, 50/60 Hz and Hi-PoE, 42.5 to 57 VDC, 1.41 AMax.: 30 W, including max. 10W for IR
• Working Temperature-30°C to 65°C (-22°F to 149°F)
• Working Humidity‰¤ 90%
