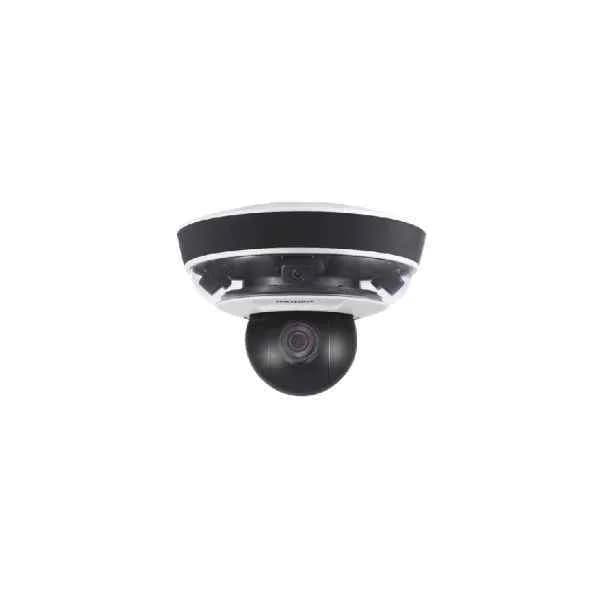

DS-2PT5326IZ Overview
DS-2PT5326IZ is an IP PTZ camera delivering a 2MP resolution captured by a motorized lens and an industry-standard 1/3" CMOS sensor. It features infrared night vision with a 30m IR range, supports H.265+ video compression, and includes audio input for clear two-way communications.
DS-2PT5326IZ offers flexible PoE connectivity and is ONVIF compliant, while its integrated MicroSD slot enables local storage up to 256 GB. Engineered with robust weather resistance (IP67), this camera is ideal for use in indoor retail environments, perimeter defense, license plate recognition, and warehouse surveillance.
DS-2PT5326IZ price is is available on request. Get immediate quote.
Request bulk order quote for DS-2PT5326IZ for additional pricing. Browse the full Hikvision Panoramic Series Network Cameras series or explore all Hikvision products.
DS-2PT5326IZ Specifications
- Product Type
- Security Camera
- Camera Type
- PTZ
- Technology
- IP Camera
- Resolution
- 2MP
- Lens Type
- Motorized
- Smart Features
- Motion Detection
- Mounting Type
- Pole
- Color
- Black
- Use Case
- Perimeter Protection
- Focal Length
- 2.7–13.5mm
- Image Sensor
- 1/3" CMOS
- Frame Rate
- 30 FPS
- Infrared Night Vision
- 30m
- Low Light Technology
- EXIR
- Day/Night Mode
- True Day/Night (ICR)
- Video Compression
- H.265+
- Audio Support
- Audio Input
- Storage Option
- MicroSD Slot
- Max Storage Capacity
- 256 GB
- Power Type
- PoE
- Weather Rating
- IP67
- Vandal Resistance
- None
- ONVIF Compliant
- Yes
- Product Name
- DS-2PT5326IZ
- Height
- 4.7 in
- Width
- 3.9 in
- Depth
- 3.9 in
- Weight
- 2.2 lbs
Quality Certifications
To get the detailed certification, please go to the Compliance Center.
Product Comparison Table
| DS-2PT5326IZ |  DS-2CD6D24FWD-(I)(Z)(H)(S)(/NFC) |  DS-2CD6984G0-IH(S)(AC)(/NFC) |  DS-2DP3236ZIXS-D/440/T2 |  DS-2DP1618ZIXS-DE/440/T2 | |
|---|---|---|---|---|---|
| Product Type | Security Camera | Security Camera | Security Camera | Security Camera | Security Camera |
| Camera Type | PTZ | Dome | Bullet | Turret | Dome |
| Technology | IP Camera | IP Camera | IP Camera | IP Camera | IP Camera |
| Resolution | 2MP | 4MP | 8MP | 4MP | 4MP |
| Lens Type | Motorized | Varifocal | Fixed | Varifocal | Fixed |
| Smart Features | Motion Detection | Motion Detection | Motion Detection | Motion Detection | Motion Detection / ANPR |
| Mounting Type | Pole | Ceiling | Wall | Wall | Ceiling |
| Color | Black | White | Black | Black | Black |
| Use Case | Perimeter Protection | Indoor / Retail / Perimeter Protection / License Plate Recognition / Warehouse | Indoor / Retail / Perimeter Protection / Warehouse | Indoor / Retail / Perimeter Protection / Warehouse | Retail |
| Focal Length | 2.7–13.5mm | 2.7–13.5mm | 2.8mm | 2.7–13.5mm | 4mm |
| Image Sensor | 1/3" CMOS | 1/2.8" CMOS | 1/2.8" CMOS | 1/2.8" CMOS | 1/2.8" CMOS |
| Frame Rate | 30 FPS | 30 FPS | 30 FPS | 30 FPS | 30 FPS |
| Infrared Night Vision | 30m | 30m | 30m | 30m | 30m |
| Low Light Technology | EXIR | EXIR | EXIR | EXIR | EXIR |
| Day/Night Mode | True Day/Night (ICR) | True Day/Night (ICR) | True Day/Night (ICR) | True Day/Night (ICR) | True Day/Night (ICR) |
| Video Compression | H.265+ | H.265+ | H.265+ | H.265+ | H.265 |
| Audio Support | Audio Input | Audio Input | No Audio | Audio Input | 2-Way Audio |
| Storage Option | MicroSD Slot | MicroSD Slot | MicroSD Slot | MicroSD Slot | MicroSD Slot |
| Max Storage Capacity | 256 GB | 128 GB | 128 GB | 256 GB | 128 GB |
| Power Type | PoE | PoE | PoE | PoE | PoE |
| Weather Rating | IP67 | IP67 | IP67 | IP66 | IP67 |
| Vandal Resistance | None | IK10 | N/A | IK10 | IK10 |
| ONVIF Compliant | Yes | Yes | Yes | Yes | Yes |
| Product Name | DS-2PT5326IZ | DS-2CD6D24FWD-(I)(Z)(H)(S)(/NFC) | DS-2CD6984G0-IH(S)(AC)(/NFC) | DS-2DP3236ZIXS-D/440/T2 | DS-2DP1618ZIXS-DE/440/T2 |
| Height | 4.7 in | 4.3 inches | 4.4 inches | 3.0 inches | 5.9 inches |
| Width | 3.9 in | 4.3 inches | 2.6 inches | 3.5 inches | 2.6 inches |
| Depth | 3.9 in | 3.1 inches | 2.4 inches | 3.5 inches | 2.2 inches |
| Weight | 2.2 lbs | 1.5 lbs | 1.5 lbs | 1.1 lbs | 1.3 lbs |
Reviews & Ratings
S
Sami Ullah
5
Reliable camera for indoor and semi outdoor use.
A
Aaron Hunt
4
Consistent image quality and smooth tracking.
D
Danish Farooq
5
Good balance of performance and usability.
O
Oliver Shaw
5
Professional mini PanoVu camera.
Questions & Answers
What is the sensor and resolution configuration of the DS-2PT5326IZ-PT5 Mini PanoVu?
The DS-2PT5326IZ-PT5 features a 5 MP panoramic sensor for 180° coverage plus a 2 MP PTZ sensor with a motorized 2.8–12 mm lens, delivering ultra-wide situational awareness and focused zoom detail in a single turret housing.
What is the maximum IR illumination range of the PT5 Mini PanoVu camera?
The camera’s advanced IR array provides clear night-time imaging up to 50 meters, ensuring reliable 24/7 surveillance in complete darkness.
Which video compression standards does the DS-2PT5326IZ-PT5 support?
It supports H.265+, H.265, H.264+, and H.264 compression, optimizing bandwidth and storage while maintaining high image quality.
What mounting options are available for the DS-2PT5326IZ-PT5 Mini PanoVu?
The camera can be ceiling-mounted, wall-mounted or pole-mounted using optional brackets, offering versatile installation for indoor and outdoor environments.
Is the DS-2PT5326IZ-PT5 weatherproof and vandal resistant?
Yes, it is rated IP67 for weather resistance and IK10 for impact protection, making it suitable for harsh outdoor and high-risk locations.
What smart analytics features are built into the PT5 Mini PanoVu?
It includes perimeter protection functions—such as intrusion and line crossing detection—plus face detection and advanced motion analytics to reduce false alarms.
Can I integrate the DS-2PT5326IZ-PT5 with Hikvision video management software?
Yes, it is fully compatible with Hikvision’s iVMS-4200 and Hik-Connect platforms for centralized monitoring, playback and configuration.
What power supply options are supported by the DS-2PT5326IZ-PT5?
The camera supports 12 VDC, PoE (802.3af) and, for simplified deployment, PoE+ to ensure stable operation and power redundancy.
Does the PT5 Mini PanoVu support onboard storage?
Yes, it has a built-in microSD slot supporting up to 256 GB of local recording for continuous or event-triggered storage.
Which network protocols are supported by the DS-2PT5326IZ-PT5 for seamless integration?
It supports TCP/IP, HTTP, HTTPS, FTP, DHCP, DNS, RTSP, and ONVIF Profile S, allowing easy integration with third-party systems and devices.
What are the operating temperature and humidity ranges for the DS-2PT5326IZ-PT5?
The camera operates between –30 °C and +60 °C (–22 °F to +140 °F) at up to 95% non-condensing humidity, making it reliable in extreme climates.
How do I access live video from the DS-2PT5326IZ-PT5 on a mobile device?
Install the Hik-Connect app, scan the camera’s QR code, and you can view live streams, receive alerts and manage PTZ controls directly from your smartphone.
What are common use cases for the PT5 Mini PanoVu camera?
Ideal for wide-area monitoring such as parking lots, public squares, stadium concourses and building perimeters, combining panoramic overview with detailed zoom.
How do I configure motion-based alerts on the DS-2PT5326IZ-PT5?
Via the web interface or iVMS-4200, define motion detection areas, set sensitivity thresholds, and enable push or email notifications for instant event alerts.
Can the DS-2PT5326IZ-PT5 operate continuously without manual maintenance?
Yes, it features built-in fans and heaters for auto-thermal management plus remote firmware updates to ensure uninterrupted operation and security compliance.
What is the physical size and weight of the DS-2PT5326IZ-PT5 Mini PanoVu?
The unit measures 176 mm × 141 mm × 304 mm and weighs approximately 2.3 kg, delivering a compact, low-profile design suitable for discreet installations.
How does the DS-2PT5326IZ-PT5 handle bandwidth management?
With H.265+ compression and Smart Codec technology, the camera dynamically adjusts bitrate to reduce network load by up to 70% without compromising image detail.
