DS-2TD6236-75C2L/V2
Thermal & Optical Bi-spectrum Network Positioning System
TRUSTED, TRIED, PROVEN
Inventory Delivered By
& Verified By
Solutions Powered By
DS-2TD6236-75C2L/V2 is an IP bullet camera featuring 2MP resolution paired with a fixed lens, a 1/2.8" CMOS sensor, and robust H.265+ video compression, ensuring clear and efficient imaging. It offers infrared night vision with an effective range of 80m, supports PoE connectivity, complies with ONVIF standards, and includes a MicroSD slot for local storage.
Designed for diverse security applications such as indoor retail monitoring, perimeter defense, license plate recognition, and warehouse surveillance, the DS-2TD6236-75C2L/V2 delivers reliable performance in harsh outdoor environments with its IP67 weather-resistant rating. Although it does not provide audio support, its high-quality imaging and connectivity options make it a versatile solution for modern surveillance systems.
DS-2TD6236-75C2L/V2 price is is available on request. Get immediate quote.
Request bulk order quote for DS-2TD6236-75C2L/V2 for additional pricing. Browse the full Hikvision Security Thermal Cameras series or explore all Hikvision products.
To get the detailed certification, please go to the Compliance Center.
 DS-2TD6236-75C2L/V2 |  DS-2TD4136-25/V2 |  DS-2TD2466-50Y |  DS-2TD8166-180ZE2F/V2 | |
|---|---|---|---|---|
| Product Type | Security Camera | Security Camera | Security Camera | Security Camera |
| Camera Type | Bullet | Bullet | Turret | Bullet |
| Technology | IP Camera | IP Camera | IP Camera | IP Camera |
| Resolution | 2MP | 4MP | 1080p | 2MP |
| Lens Type | Fixed | Fixed | Fixed | Fixed |
| Smart Features | N/A | Motion Detection | ANPR | Motion Detection |
| Mounting Type | Wall | Wall | Wall | Wall |
| Color | Black | Black | Black | Black |
| Use Case | Indoor / Retail / Office Security / Perimeter Protection / Warehouse | Perimeter Protection | Indoor / Retail / Office Security / Perimeter Protection / Parking Lots / Warehouse / Public Transit / High-Security Zone | Retail |
| Focal Length | 3.6mm | 4mm | 4mm | 2.8mm |
| Image Sensor | 1/2.8" CMOS | Thermal | 1/2.8" CMOS | Thermal |
| Frame Rate | 30 FPS | 30 FPS | 30 FPS | 30 FPS |
| Infrared Night Vision | 80m | 50m | 30m | 30m |
| Low Light Technology | EXIR | IR | IR | N/A |
| Day/Night Mode | True Day/Night (ICR) | True Day/Night (ICR) | True Day/Night (ICR) | N/A |
| Video Compression | H.265+ | H.265 | H.265 | H.265+ |
| Audio Support | No Audio | No Audio | 2-Way Audio | No Audio |
| Storage Option | MicroSD Slot | MicroSD Slot | MicroSD Slot | MicroSD Slot |
| Max Storage Capacity | 64 GB | 128 GB | 64 GB | 128 GB |
| Power Type | PoE | PoE | PoE | PoE |
| Weather Rating | IP67 | IP67 | IP67 | IP67 |
| Vandal Resistance | None | N/A | IK08 | IK10 |
| ONVIF Compliant | Yes | Yes | Yes | Yes |
| Product Name | DS-2TD6236-75C2L/V2 | DS-2TD4136-25/V2 | DS-2TD2466-50Y | DS-2TD8166-180ZE2F/V2 |
| Height | 3.9 inches | 4.1 inches | 4.3 inches | 4.3 inches |
| Width | 4.7 inches | 2.8 inches | 2.7 inches | 2.8 inches |
| Depth | 3.0 inches | 2.5 inches | 2.2 inches | 2.8 inches |
| Weight | 2.2 lbs | 1.65 lbs | 1.1 lbs | 2.0 lbs |
Positioning system performs well for large site monitoring. Thermal clarity is consistent and the optical channel supports reliable verification.
Stable performance with smooth control. Good choice for perimeter coverage across wide areas.
Reliable outdoor deployment. Thermal detection is consistent and the unit handles weather exposure well.
Strong bi spectrum solution for enterprise security. Stable operation and clear imaging.
Good range and stable performance. Works well for critical infrastructure sites.

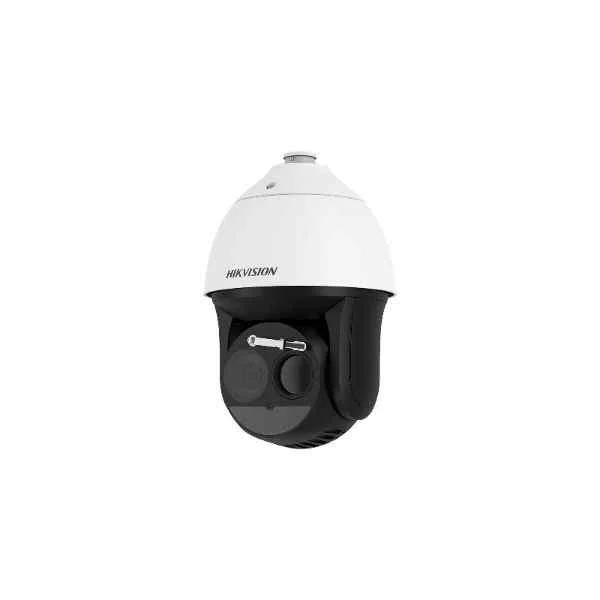

The DS-2TD6236-75C2L/V2 is a dual-sensor network camera that combines a 640×512 thermal imager and a 2 MP optical module with a 75 mm telephoto lens for precise long-range detection and tracking.
Bi-spectrum technology fuses thermal and optical data to deliver real-time target detection in complete darkness, adverse weather, and complex lighting, enhancing situational awareness and reducing false alarms.
With a 75 mm telephoto optical lens and a high-sensitivity thermal sensor, the system achieves human detection up to 2,000 m and vehicle detection up to 5,000 m under clear conditions.
The unit meets IP67 and IK10 ratings for water, dust, and impact resistance and operates reliably from –40 °C to +65 °C in harsh outdoor environments.
