DS-2TD8166-180ZE2F/V2

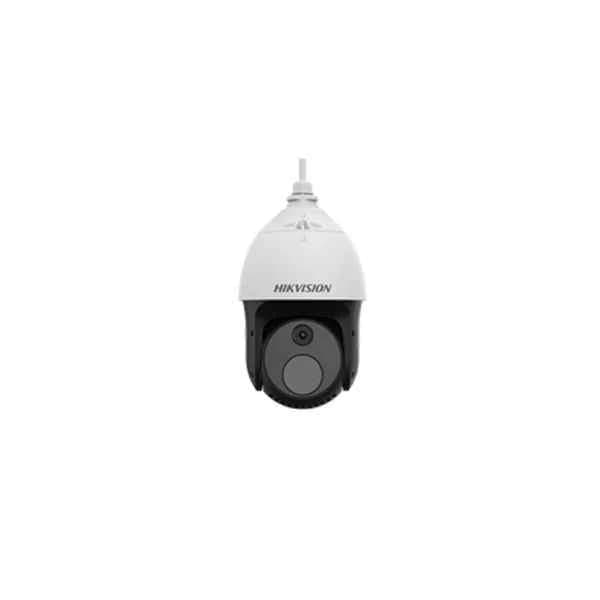

Thermal & Optical Bi-spectrum Network Stable PTZ Camera
TRUSTED, TRIED, PROVEN
$5,000,000+
Inventory Delivered By
Officially Accredited
& Verified By
Next-Gen IT
Solutions Powered By
DS-2TD8166-180ZE2F/V2 is an IP bullet camera engineered with a 2MP thermal sensor and fixed lens, delivering clear imaging even in challenging low-light conditions with an effective infrared night vision range of 30m. Designed to handle diverse security challenges, it uses advanced H.265+ video compression and supports PoE connectivity for streamlined installation.
Optimized for integration into modern surveillance systems, DS-2TD8166-180ZE2F/V2 is ONVIF compliant and offers secure onboard storage through a MicroSD slot (supporting up to 128 GB). Its robust, weather-resistant construction makes it ideal for use cases including indoor retail surveillance, perimeter defense, license plate recognition, and warehouse monitoring.
DS-2TD8166-180ZE2F/V2 price is is available on request. Get immediate quote.
Request bulk order quote for DS-2TD8166-180ZE2F/V2 for additional pricing. Browse the full Hikvision Security Thermal Cameras series or explore all Hikvision products.
To get the detailed certification, please go to the Compliance Center.
| DS-2TD8166-180ZE2F/V2 |  DS-2TD6236-75C2L/V2 |  DS-2TD2466-50Y |  DS-2TD4136-25/V2 | |
|---|---|---|---|---|
| Product Type | Security Camera | Security Camera | Security Camera | Security Camera |
| Camera Type | Bullet | Bullet | Turret | Bullet |
| Technology | IP Camera | IP Camera | IP Camera | IP Camera |
| Resolution | 2MP | 2MP | 1080p | 4MP |
| Lens Type | Fixed | Fixed | Fixed | Fixed |
| Smart Features | Motion Detection | N/A | ANPR | Motion Detection |
| Mounting Type | Wall | Wall | Wall | Wall |
| Color | Black | Black | Black | Black |
| Use Case | Retail | Indoor / Retail / Office Security / Perimeter Protection / Warehouse | Indoor / Retail / Office Security / Perimeter Protection / Parking Lots / Warehouse / Public Transit / High-Security Zone | Perimeter Protection |
| Focal Length | 2.8mm | 3.6mm | 4mm | 4mm |
| Image Sensor | Thermal | 1/2.8" CMOS | 1/2.8" CMOS | Thermal |
| Frame Rate | 30 FPS | 30 FPS | 30 FPS | 30 FPS |
| Infrared Night Vision | 30m | 80m | 30m | 50m |
| Low Light Technology | N/A | EXIR | IR | IR |
| Day/Night Mode | N/A | True Day/Night (ICR) | True Day/Night (ICR) | True Day/Night (ICR) |
| Video Compression | H.265+ | H.265+ | H.265 | H.265 |
| Audio Support | No Audio | No Audio | 2-Way Audio | No Audio |
| Storage Option | MicroSD Slot | MicroSD Slot | MicroSD Slot | MicroSD Slot |
| Max Storage Capacity | 128 GB | 64 GB | 64 GB | 128 GB |
| Power Type | PoE | PoE | PoE | PoE |
| Weather Rating | IP67 | IP67 | IP67 | IP67 |
| Vandal Resistance | IK10 | None | IK08 | N/A |
| ONVIF Compliant | Yes | Yes | Yes | Yes |
| Product Name | DS-2TD8166-180ZE2F/V2 | DS-2TD6236-75C2L/V2 | DS-2TD2466-50Y | DS-2TD4136-25/V2 |
| Height | 4.3 inches | 3.9 inches | 4.3 inches | 4.1 inches |
| Width | 2.8 inches | 4.7 inches | 2.7 inches | 2.8 inches |
| Depth | 2.8 inches | 3.0 inches | 2.2 inches | 2.5 inches |
| Weight | 2.0 lbs | 2.2 lbs | 1.1 lbs | 1.65 lbs |
Excellent stable PTZ performance for long range thermal coverage. Image quality is strong and the unit has been reliable under continuous outdoor operation.
Thermal clarity at distance is impressive. Tracking is smooth and the system has remained stable in harsh weather.
Good positioning control and reliable detections. Ideal for large perimeter protection projects.
High performance bi spectrum PTZ. Stable streams and dependable analytics.
Strong long range monitoring capability. Reliable operation in demanding conditions.
The DS-2TD8166-180ZE2F/V2 is a bi-spectrum PTZ camera combining a 640×512 thermal imager and a 2 MP optical sensor with 18× optical zoom for 24/7 perimeter surveillance.
It delivers a 640×512 thermal resolution with <35 mK NETD sensitivity, enabling clear heat-signature detection in complete darkness and adverse weather.
The optical channel features a 2 MP sensor and an 18× motorized zoom lens (f=4.8–86.4 mm), supporting autofocus and 16× digital zoom for detailed daytime imagery.
With its 180 mm thermal lens, it detects human-sized targets up to 550 m and recognizes them up to 140 m, ensuring reliable long-range perimeter protection.
Yes. It supports temperature measurement from -40 °C to 550 °C with ±2 °C or ±2% accuracy, ideal for early fire detection and equipment monitoring.
The camera supports H.265+, H.265, H.264+, and H.264 encoding, optimizing bandwidth and storage without compromising image quality.
It is ONVIF Profile S/G compliant and supports RTSP, HTTP, TCP/IP, IPv4/IPv6, SNMP, and Hikvision SDK for seamless VMS and NVR integration.
Rated IP67 for dust and water resistance and IK10 for impact protection, it withstands harsh outdoor conditions from -40 °C to 70 °C.
It supports 24 VAC or PoE+ (802.3at) for flexible deployment, reducing cabling complexity and installation costs.
The camera uses a standard 1.5″ NPT thread mount. It includes a junction box and adjustable bracket for wall-, pole-, or corner-mount installations.
Yes, it features a built-in microSD card slot supporting up to 256 GB for local recording and continuous event buffering.
It includes line crossing, intrusion detection, unattended baggage, and audio exception alarms, delivering real-time alerts for proactive security.
Yes. Remote access via Hik-Connect, iVMS-4200, web browser, or ONVIF-compatible clients allows live view, PTZ control, and playback from anywhere.
The camera integrates with Hikvision NVRs and third-party VMS, offering continuous, scheduled, and event-based recording with RAID support on NVR side.
Ideal for perimeter protection, border security, critical infrastructure, and fire detection in ports, power plants, and transportation hubs.
It is CE, FCC, UL, and RoHS certified, ensuring compliance with international safety, electromagnetic compatibility, and environmental standards.
Hikvision offers a two-year warranty, plus firmware updates and global technical support for maintenance and troubleshooting.
