DS-2TD6236T-2550H2L

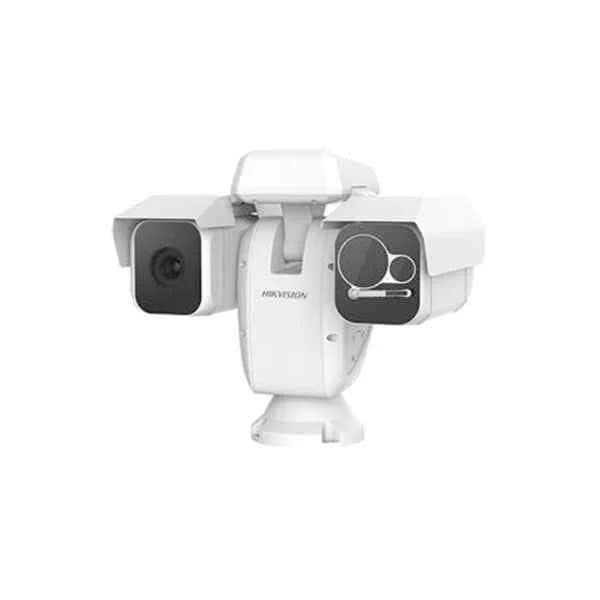

Thermometric Thermal & Optical Bi-spectrum Network
TRUSTED, TRIED, PROVEN
Inventory Delivered By
& Verified By
Solutions Powered By
DS-2TD6236T-2550H2L is an IP thermal security camera designed with a fixed lens that delivers 2MP resolution imaging using a dedicated thermal sensor. It incorporates H.265 video compression and offers an infrared night vision capability of up to 50m, ensuring reliable performance in low‐ambient conditions.
DS-2TD6236T-2550H2L features PoE connectivity, supports local storage via a MicroSD slot, and is fully ONVIF compliant for seamless integration into existing systems. Its robust, weather-resistant design (IP67 rated) makes it ideal for diverse applications including indoor retail, perimeter defense, license plate recognition, and warehouse surveillance.
DS-2TD6236T-2550H2L price is is available on request. Get immediate quote.
Request bulk order quote for DS-2TD6236T-2550H2L for additional pricing. Browse the full category range or explore all Hikvision products.
To get the detailed certification, please go to the Compliance Center.
 DS-2TD6236T-2550H2L |  DS-2TP21B-6AVF/W |  DS-2TV03-10ZI |  DS-2TD4136-25/V2 |  DS-2TD2466-50Y | |
|---|---|---|---|---|---|
| Product Type | Security Camera | Security Camera | Security Camera | Security Camera | Security Camera |
| Camera Type | Thermal | Bullet | Turret | Bullet | Turret |
| Technology | IP Camera | IP Camera | IP Camera | IP Camera | IP Camera |
| Resolution | 2MP | 2MP | 2MP | 4MP | 1080p |
| Lens Type | Fixed | Fixed | Motorized | Fixed | Fixed |
| Smart Features | Motion Detection | N/A | Motion Detection | Motion Detection | ANPR |
| Mounting Type | Wall | Wall | Ceiling | Wall | Wall |
| Color | Black | White | Black | Black | Black |
| Use Case | Perimeter Protection | Indoor / Retail / Perimeter Protection / Warehouse | Retail | Perimeter Protection | Indoor / Retail / Office Security / Perimeter Protection / Parking Lots / Warehouse / Public Transit / High-Security Zone |
| Focal Length | N/A | 6mm | 2.7–13.5mm | 4mm | 4mm |
| Image Sensor | Thermal | 1/3" CMOS | 1/2.8" CMOS | Thermal | 1/2.8" CMOS |
| Frame Rate | 30 FPS | 30 FPS | 30 FPS | 30 FPS | 30 FPS |
| Infrared Night Vision | 50m | 30m | 30m | 50m | 30m |
| Low Light Technology | N/A | IR | Starlight | IR | IR |
| Day/Night Mode | N/A | True Day/Night (ICR) | True Day/Night (ICR) | True Day/Night (ICR) | True Day/Night (ICR) |
| Video Compression | H.265 | H.265 | H.265+ | H.265 | H.265 |
| Audio Support | No Audio | No Audio | 2-Way Audio | No Audio | 2-Way Audio |
| Storage Option | MicroSD Slot | MicroSD Slot | MicroSD Slot | MicroSD Slot | MicroSD Slot |
| Max Storage Capacity | 128 GB | 128 GB | 128 GB | 128 GB | 64 GB |
| Power Type | PoE | PoE | PoE | PoE | PoE |
| Weather Rating | IP67 | IP66 | IP66 | IP67 | IP67 |
| Vandal Resistance | N/A | N/A | None | N/A | IK08 |
| ONVIF Compliant | Yes | Yes | Yes | Yes | Yes |
| Product Name | DS-2TD6236T-2550H2L | DS-2TP21B-6AVF/W | DS-2TV03-10ZI | DS-2TD4136-25/V2 | DS-2TD2466-50Y |
| Height | 4.7 inches | 3.5 inches | 4.5 inches | 4.1 inches | 4.3 inches |
| Width | 3.3 inches | 2.5 inches | 3.8 inches | 2.8 inches | 2.7 inches |
| Depth | 3.3 inches | 2.0 inches | 3.0 inches | 2.5 inches | 2.2 inches |
| Weight | 3.1 lbs | 1.8 lbs | 1.7 lbs | 1.65 lbs | 1.1 lbs |
Thermometric bi spectrum system is reliable for perimeter protection. Thermal detection is consistent and the optical channel helps verify events quickly.
Strong thermal clarity at distance. Stable performance in harsh outdoor conditions and alerts are dependable.
Good temperature monitoring and reliable imaging. Works well for critical infrastructure security.
Stable operation with consistent detections. Useful for early warning and verification workflows.
Reliable thermometric platform with strong range. Smooth integration into our monitoring setup.
The DS-2TD6236T-2550H2L is a dual-spectrum surveillance camera combining a 640×512 thermal sensor and a 1920×1080 optical sensor for enhanced day/night monitoring and temperature measurement.
The thermal detector offers a 640×512 resolution with a 25 µm pixel pitch, delivering clear heat signatures up to 3 km away.
The integrated optical camera provides Full HD 1920×1080 resolution with a motorized 25× zoom lens for detailed visible-light imaging.
It measures -20 °C to 550 °C with ±2 °C or ±2 % accuracy using onboard thermometric algorithms for spot, area and line measurements.
