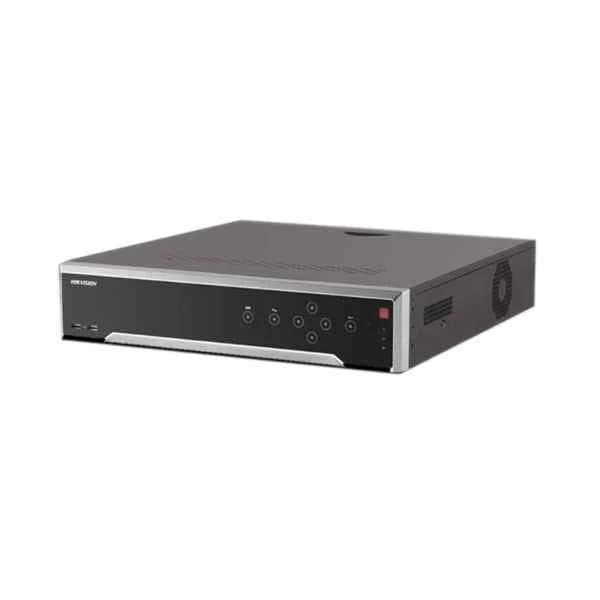

DS-8616NI-K8

DS-8616NI-K8 Specification

Video/Audio Input

Two-way audio input

1-ch, RCA (2.0 Vp-p, 1kΩ)

IP video input

16-ch

Network

Incoming bandwidth

160Mbps

Outgoing bandwidth

160Mbps

Video/Audio Output

HDMI/VGA output

4-ch, VGA1: 2K (2560 1440)/60Hz, 1920 1080/60Hz, 1280 1024/60Hz, 1280 720/60Hz, 1024 768/60Hz;

HDMI1: 4K (3840 2160)/60Hz, 4K (3840 2160)/30Hz, 2K (2560 1440)/60Hz, 1920 1080/60Hz, 1600 1200/60Hz,

1280 1024/60Hz, 1280 720/60Hz, 1024 768/60Hz; VGA2/HDMI2: 1920 1080/60Hz, 1280 1024/60Hz, 1280 720/

60Hz, 1024 768/60Hz

Recording Resolution

8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF

Synchronous Playback

16-ch

Decoding

Capability

8-ch@1080P

Live view / Playback

8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF

Hard Disk

eSATA

1 eSATA interface

SATA

8 SATA interfaces for 8 HDDs

Capacity

Up to 8TB capacity for each HDD

External Interface

Network Interface

2 RJ-45 10/100/1000Mbps self-adaptive Ethernet interfaces

Serial Interface

RS-232, RS-485, Keyboard

USB Interface

Front panel: 2 USB 2.0

Rear panel: 1 USB 3.0

Alarm In

16-ch

Alarm Out

4-ch

General

Power Supply

100 to 240 VAC, 50 to 60 Hz

Power

200 W

Consumption(without hard disk and POE)

‰¤ 30 W

Working Temperature

-10 +55 „ƒ (+14 „‰~ + 131 „‰)

Working Humidity

10 % ~ 90 %

Chassis

2U chassis

Dimensions

445 470 90 mm (17.5" 18.5" 3.5")
