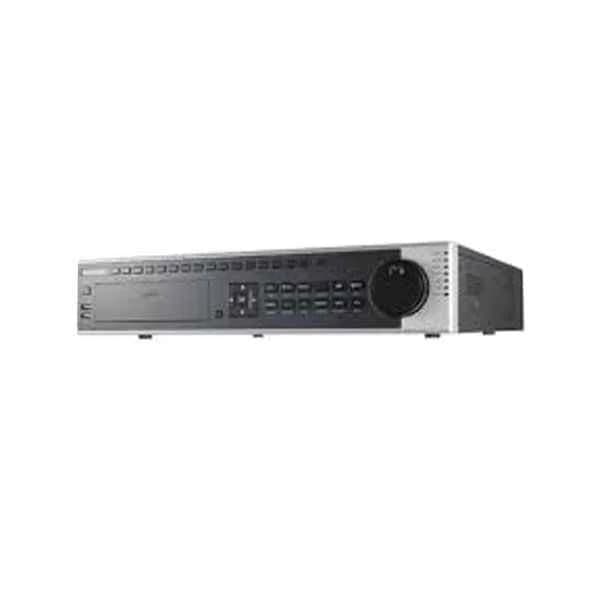

DS-8632NI-I8

DS-8632NI-I8 Specification

IP video input

32-ch

Incoming bandwidth

320Mbps

Outgoing bandwidth

256Mpbs

VGA1/HDMI1 output resolution

HDMI1: 4K (3840 2160)/60Hz, 4K (3840 2160)/30Hz, 2K (2560 1440)/60Hz, 1920 1080/60Hz, 1600 1200/60Hz, 1280 1024/60Hz, 1280 720/60Hz, 1024 768/60Hz۬VGA1: 2K (2560 1440)/60Hz, 1920 1080/60Hz, 1280 1024/60Hz, 1280 720/60Hz, 1024 768/60Hz

VGA2/HDMI2 output resolution

HDMI2: 1920 1080/60Hz, 1280 1024/60Hz, 1280 720/60Hz, 1024 768/60Hz۬VGA2: 1920 1080/60Hz, 1280 1024/60Hz, 1280 720/60Hz, 1024 768/60Hz

Audio output

2-ch, RCA (Linear, 1 K Ω)

Decoding format

H.265/H.264/MPEG4

Recording resolution

12MP/8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/ QCIF

Synchronous playback

16-ch

Capability

4-ch@4K/16-ch@1080p

SATA

8 SATA interfaces

eSATA

1 eSATA interface

Capacity

500GB/1TB/2TB/3TB/4TB/5TB/6TB

Two-way audio

1-ch, RCA (2.0 Vp-p, 1 kΩ)

Network interface

2 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interfaces

Serial interface

RS-232; RS-485; Keyboard

USB interface

Front panel: 2 USB 2.0; Rear panel: 1 USB 3.0

Alarm in/out

16/4

Power supply€¨

100 to 240 VAC, 50 to 60 Hz

Consumption (without hard disk)

‰¤ 35 W

Max. Power

200 W

Working temperature

-10 to +55°C (14 to 131°F)

Working humidity

10% to 90%

Chassis

19-inch rack-mounted 2U chassis

Dimensions€¨(W D H)€¨

445 470 90 mm ( 17.5€ 18.3€ 3.5€)
