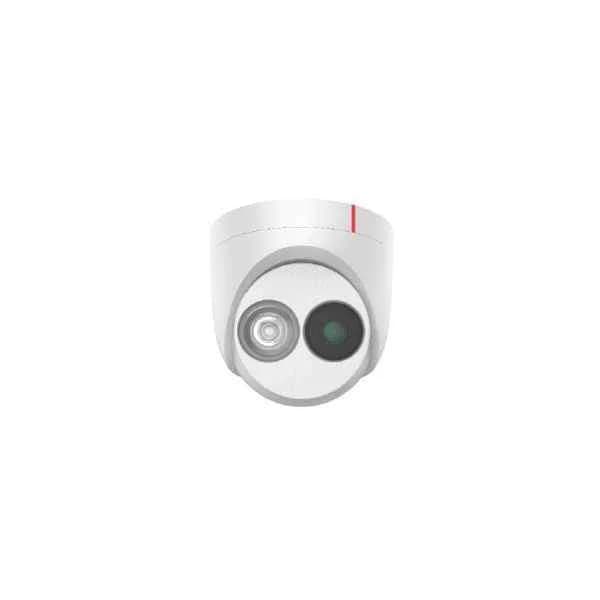

E0V261101

IPC2611-F Specification

Image sensor

1/3€ Progressive Scan CMOS

Effective pixels

1280(H)720(V)

Minimum Illumination

Multicolor: 0.04Lux /(F1.4，AGC ON ) B/W: 0.02Lux /(F1.4，AGC ON )

Day/Night mode

Optical filter switched m color mode to B/W mode

Electronic shutter speed

1/60s ～ 1/67,500s

Gain control

Support

White balance

Support

Backlight compensation

Support

Focal length

Lens Reprovision (CS interface with the CS / C adapter)

Aperture

Auto Iris，DC drive

Video encoding format

H.264/MJPEG H.264 supporting up to High profile

Video resolution and frame rate

720P 60 FPS D1 30 FPS CIF 30 FPS

Video bit rate

720p: 512 kbit/s to 8 Mbit/s D1: 300 kbit/s to 4 Mbit/s CIF: 100 kbit/s to 1 Mbit/s

Multiple-Stream

Dual streams

Audio encoding format

G.711a ,G.711u

Audio bit rate

64kbps

Communication interface

One RJ45 10/100 Base-T adaptive Ethernet interface and one RS-485 interface

Alarm interface

2-channel alarm input/2-channel alarm Output

Audio interface

1-channel audio input/1-channel audio Output

BNC interface

BNC connector

Motion detection

Four motion detection areas and Five accuracy levels

Video quality and frame rate adjustment

Support

Auto-adjust stream (AAS)

Support

Image rotation and mirroring

Support

Network protocol

IPv4,HTTP,RTP,RTCP,SIP,TCP,UDP,ARP,ICMP,DHCP,Network Protocol, ONVIF

Maximum number of concurrent users access

4

Local storage

SD/SDHC（32G）

Security mode

Three levels of users: administrator, operator, and common userMedia Security，Authorized user and passport

Other functions

one-key reset，Dual streams，auto discovery，DHCP

SDK development

SDK（linux/windows C++ SDK）

Power supply

DC12V±10%, DC24V±10%, AC24V±10%, POE 802.3at:-50V~-57V; Self-adaptive power supply automatically regulates power input for stability.

Power consumption

‰¤9.6W

Operating temperature & humidity

-10„ƒ~50 < 90%(without condensation)

Net weight

0.995kg

Dimensions (mm)

157.779.779.4
