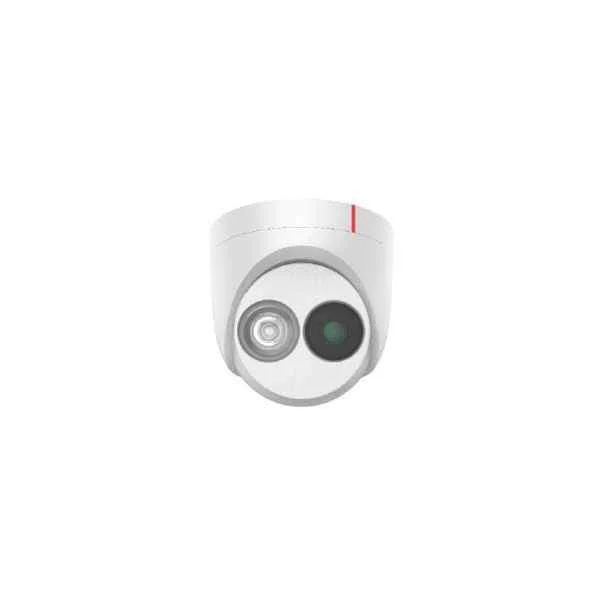

IPC2602

IPC2602 Specification

Image sensor

1/3" Progressive Scan CMOS

Effective pixels

1280(H)720(V)

Minimum Illumination

Multicolor: 0.2Lux/(F1.2，AGC ON)
B/W: 0.01Lux/(F1.2，AGC ON)

Day/Night mode

Automatic ICR

Electronic shutter speed

1/5s  ～ 1/50,000s

Gain control

Supported

White balance

Supported

WDR

70dB

Backlight compensation

Supported

Focal length

Lens configured (lens mount: C/CS)

Aperture

DC drive

Video encoding format

H.264 / MJPEG

Video resolution and frame rate

50Hz:25fps (1280720),25fps (640360)
60Hz:30fps (1280720),30fps (640360)

Video bit rate

Main-Stream:500Kbps~6Mbps
Sub-Stream:100Kbps~6Mbps

Multiple-Stream

triple Streams

Audio encoding format

G.711a/G.711u/raw_pcm

Audio bit rate

64kbps

Communication interface

One RJ45 10/100 Base-T self-adaptive Ethernet interface and one RS-485 interface

Alarm interface

1-channel alarm input/1-channel alarm Output

Audio interface

1-channel audio input/1-channel audio Output

Analog port

BNC connector

Motion detection

Eight motion detection areas

Privacy masks

Five privacy mask areas with adjustable sizes

Network Protocol

IPv4, RTSP/RTP/RTCP, TCP/UDP, HTTPS, DHCP, DNS, SFTP, DDNS, PPPoE, SMTP, and NTP

Maximum number of concurrent users

Ten users access or two channels of media streams

Local storage

SDHC card（32G）

Security mode

User name and password authentication

Other functions

One-key reset, triple code streams, and heartbeat mechanism

SDK development

linux/windows C++ SDK

Power supply

DC12V±10% 1A/ PoE 802.3af

Power consumption

‰¤5W

Operating temperature & humidity

-10„ƒ~50„ƒ ; < 90%(without condensation)

Net weight

0.47kg

Dimensions (mm)

7463145
