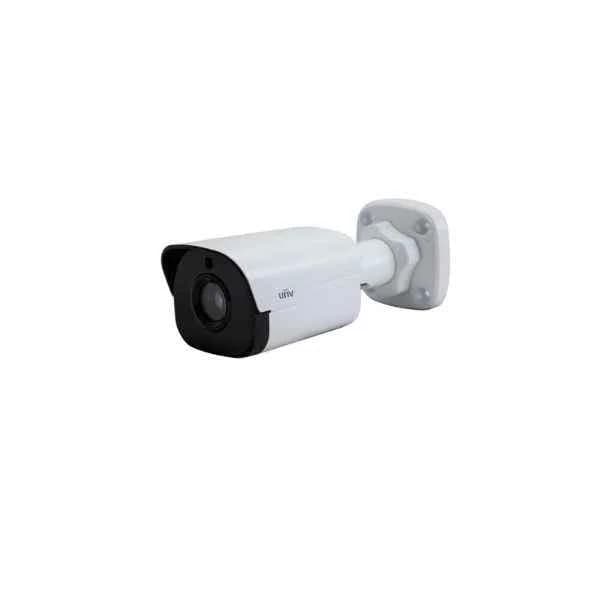

Name: 120dB WDR, IP67, Starlight, HLC Smart functions
Brand: Uniview
SKU: IPC2122SR3-UPF60-C
Rating: 4.2 (5 reviews)

Question 1

What is 120dB WDR and why is it important in the IPC2122SR3-UPF60-C?

Accepted Answer

120dB WDR (Wide Dynamic Range) balances extreme light and dark regions in a scene, ensuring clear details in backlit or high-contrast environments.

Question 2

How does the Starlight technology enhance low-light performance?

Accepted Answer

Starlight sensor technology maximizes light sensitivity, delivering full-color video in near-dark conditions down to 0.005 lux.

Question 3

What does IP67 rating mean for outdoor use?

Accepted Answer

IP67 certification guarantees dust tight sealing and waterproof protection up to 1 meter for 30 minutes, ideal for harsh weather.

Question 4

How does HLC (High-Light Compensation) work?

Accepted Answer

HLC masks intense light sources—such as headlights or spotlights—by dynamically reducing glare and preserving scene details.

Question 5

Which smart functions are supported by this camera?

Accepted Answer

The IPC2122SR3-UPF60-C supports line crossing, intrusion detection, face detection, region entrance/exit and tamper alarm for proactive security.

Question 6

What video resolution and frame rate does the camera offer?

Accepted Answer

It captures up to 2MP (1920×1080) resolution at 30 fps, ensuring smooth, detailed surveillance footage.

Question 7

Can I access the camera remotely via mobile or desktop?

Accepted Answer

Yes. The camera supports remote live view and playback through the manufacturer’s mobile app and VMS client software.

Question 8

Is the IPC2122SR3-UPF60-C compatible with NVRs and third-party VMS?

Accepted Answer

Yes, it is ONVIF-compliant (Profile S/G), ensuring seamless integration with most NVRs and VMS platforms.

Question 9

What power supply options are available?

Accepted Answer

The camera supports PoE (IEEE 802.3af) and 12 VDC, simplifying installation with a single network cable.

Question 10

What is the operating temperature range?

Accepted Answer

It operates reliably between –30 °C and +60 °C (–22 °F to +140 °F), suitable for extreme climates.

Question 11

What lens and field of view does UPF60-C denote?

Accepted Answer

UPF60-C indicates a 6 mm fixed lens delivering a 60° horizontal field of view, ideal for medium-range coverage.

Question 12

How is the camera mounted for optimal coverage?

Accepted Answer

The camera includes adjustable mounting brackets for wall, ceiling or pole installation, enabling precise angle alignment.

Question 13

Does the camera support onboard storage?

Accepted Answer

Yes, it features a microSD slot supporting up to 256 GB for local continuous or event-triggered recording.

Question 14

How accurate is the motion detection feature?

Accepted Answer

Built-in motion detection analyzes pixel changes with adjustable sensitivity and region settings to minimize false alarms.

Question 15

What bandwidth and storage savings does H.265+ compression provide?

Accepted Answer

H.265+ compression reduces bandwidth and storage requirements by up to 70% compared to H.264, lowering total cost of ownership.

Question 16

What certifications and compliance standards does the camera meet?

Accepted Answer

It holds CE, FCC and RoHS certifications, ensuring compliance with international safety, electromagnetic and environmental standards.

Question 17

Which applications are best suited for this camera?

Accepted Answer

Ideal for parking lots, entrances, warehouses and perimeter surveillance where high dynamic range, low-light clarity and weatherproofing are critical.

	IPC2122SR3-UPF60-C	IPC2222EBR5-HDUPF60	IPC2325EBR5-DUPZ28	IPC3635ER3-DUPZ28	IPC3615ER3-ADUPF28M
Product Type	IP Camera	IP Camera	IP Camera	IP Camera	IP Camera
Camera Type	Bullet	Dome	Bullet	Dome	Dome
Mounting Option	Wall	Ceiling	Wall	Ceiling	Ceiling
Color	Black	Black	Black	Black	Black
Use Case	Indoor Surveillance / Outdoor Monitoring / Office / Retail / Perimeter Security	Office Surveillance / Outdoor Monitoring	Office / Retail / Perimeter Security	Indoor Surveillance / Outdoor Monitoring	Indoor Surveillance / Outdoor Monitoring / Office / Retail / Government Buildings / Critical Infrastructure
Resolution	4K	4MP	2MP	5MP	4K
Lens Type	Fixed	Varifocal	Fixed	Fixed	Fixed
Focal Length	4mm	2.7–13.5mm	2.8mm	3.6mm	2.8mm
Field of View	60°	90°	90°	90°	90°
Image Sensor	1/2.8" CMOS	1/2.8" CMOS	1/3" CMOS	1/3" CMOS	1/2.8" CMOS
Frame Rate	30 FPS	30 FPS	30 FPS	30 FPS	30 FPS
Infrared Range	30m	30m	30m	30m	30m
Low Light Technology	Starlight	Starlight	Starlight	Starlight	Starlight
Day/Night Mode	True Day/Night (ICR)	True Day/Night (ICR)	True Day/Night (ICR)	True Day/Night (ICR)	True Day/Night (ICR)
Video Compression	H.265+	H.265+	H.265	H.265+	H.265+
Audio Support	Built-in Mic	No Audio	No Audio	Built-in Mic	Built-in Mic
Storage Options	MicroSD	MicroSD	MicroSD	MicroSD	MicroSD
Max Storage Capacity	128 GB	128 GB	64 GB	128 GB	128 GB
Power Supply	PoE	PoE	PoE	PoE	PoE
Network Interface	1 x RJ-45	1 x RJ-45	1 x RJ-45	1 x RJ-45	1 x RJ-45
Wireless Support	No	No	No	No	No
ONVIF Compliance	Yes	Yes	Yes	Yes	Yes
Smart Features	Motion Detection / Intrusion Detection / Line Crossing / Face Detection	Motion Detection / Intrusion Detection / Line Crossing / Face Detection	Motion Detection / Line Crossing / Face Detection	Motion Detection / Intrusion Detection / Line Crossing / Face Detection	Motion Detection / Intrusion Detection / Line Crossing / Face Detection
Vandal Resistance	IK10	IK08	None	IK10	IK10
Weather Rating	IP67	IP67	IP67	IP66	IP67
Product Name	IPC2122SR3-UPF60-C	IPC2222EBR5-HDUPF60	IPC2325EBR5-DUPZ28	IPC3635ER3-DUPZ28	IPC3615ER3-ADUPF28M
Height	4.5 inches	4.5 inches	4.5 inches	N/A	4 inches
Width	3.2 inches	3.8 inches	3.2 inches	N/A	4 inches
Depth	2.5 inches	3.2 inches	3.2 inches	N/A	4 inches
Weight	1.1 lbs	1.8 lbs	1.8 lbs	N/A	2 lbs
