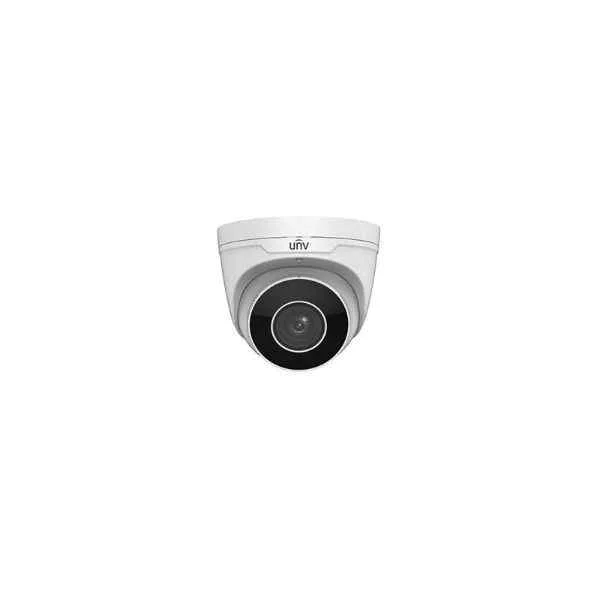

IPC3634ER3-DPZ28

IPC3634ER3-DPZ28 Specification

Camera

Sensor

1/3", 4.0 megapixel, progressive scan, CMOS

Lens

2.8 ~ 12mm, AF automatic focusing and motorized zoom lens

DORI Distance

Lens (mm)

Detect (m)

Observe (m)

Recognize (m)

Identify (m)

2.8

63

25.2

12.6

6.3

12

270

108

54

27

Angle of view (H)

91.0° ~ 27°

Angle of view (V)

54.4° ~ 13.7

Angle of view (O)

118.3° ~ 33.2°

Adjustment Range

Pan: 0°~ 360°

Tilt: 0° ~90°

Rotate: 0°~ 360°

Shutter

Auto/Manual, 1 ~ 1/100000s

Minimum Illumination

Colour: 0.005Lux (F1.4, AGC ON)

0Lux with IR

Day/Night

IR-cut filter with auto switch (ICR)

Digital noise reduction

2D/3D DNR

S/N

>52dB

IR Range

Up to 30m (98ft) IR range

Defog

Digital Defog

WDR

120dB

Video

Video Compression

Ultra 265, H.264, MJPEG

H.264 code profile

Baseline profile, Main Profile, High Profile

Frame Rate

Main Stream: 4MP (2592*1520), Max 20fps; 4MP (2560*1440), Max 25fps; 3MP (2048*1520), Max 30fps;

Sub Stream: 2MP (1920*1080), Max 30fps;

Third Stream: D1 (720*576), Max 30fps

HLC

Supported

BLC

Supported

9:16 Corridor Mode

Supported

OSD

Up to 8 OSDs

Privacy Mask

Up to 8 areas

ROI

Up to 8 areas

Motion Detection

Up to 4 areas

Smart

Behavior Detection

Intrusion, cross line, motion detection

Intrusion

Enter and loiter in a pre-defined virtual region

Cross line

Cross a pre-defined virtual line

Motion detection

Moving within a pre-defined virtual region

Recognition

Face detection, Audio detection

Intelligent Identification

Defocus, Scene Change, Object Left, Object Moving

Statistical Analysis

People counting

General Function

Watermark, IP Address Filtering, Tampering Alarm, Access Policy, ARP Protection, RTSP Authentication, User Authentication

Audio

Audio Compression

G.711

Suppression

Supported

Sampling Rate

8KHZ

Storage

Edge Storage

Micro SD, up to 256GB

Network Storage

ANR

Network

Protocols

IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS

Compatible Integration

ONVIF (Profile S, Profile G, Profile T), API

Interface

Built-in Mic

Supported

Network

1 RJ45 10M/100M Base-TX Ethernet

General

Power

DC 12V±25%, PoE (IEEE 802.3af)

Power consumption: Max 8.16W

Dimensions (Ø x H)

Φ129 x 110mm (Ø5.08€ x 4.3€)

Operating Conditions

-40°C ~ 60°C (-40°F ~ 140°F), Humidity: ‰¤95% RH (non-condensing)

Ingress Protection

IP67

Reset Button

Supported
