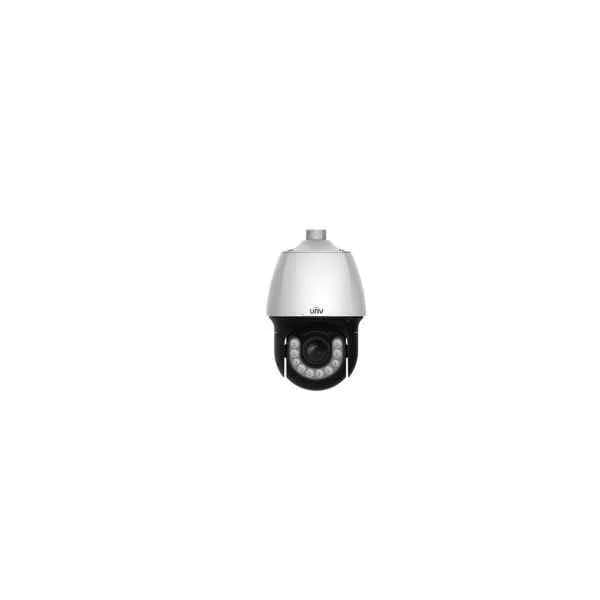

IPC6252SFW-X22U

IPC6252SFW-X22U Specification

Camera

Sensor

1/1.8", 2.0 megapixel, progressive scan, CMOS

Lens

6.5 ~ 143mm, AF automatic focusing and motorized zoom lens

Digital Zoom

16

Optical Zoom

22

DORI Distance

Lens (mm)

Detect (m)

Observe (m)

Recognize (m)

Identify (m)

6.5

78

31.2

15.6

7.8

143

1716

686.4

343.2

171.6

Angle of View (H)

57.2°~ 3.3°

Angle of View (V)

38.4°~ 1.3°

Angle of View (O)

70.4°~ 3.9°

Shutter

Auto/Manual; shutter time: 1 ~ 1/100000s

Minimum Illumination

Colour: 0.0005Lux (F1.5, AGC ON)

0Lux with IR on

Iris

Auto/Manual; F1.5 ~ F3.4

Day/Night

IR-cut filter with auto switch (ICR)

Digital noise reduction

2D/3D DNR

S/N

>52dB

IR Range

Up to 200 m (656ft),

While Light, up to 30m

Defog

Digital Defog

WDR

120dB

Video

Video Compression

Ultra 265, H.265, H.264, MJPEG

H.264 code profile

Baseline profile, Main Profile, High Profile

Frame Rate

Main Stream: 2MP (1920*1080), Max 60fps;

Sub Stream: 2MP (1920*1080), Max 60fps;

Third Stream: D1 (720*576), Max 60fps

HLC

Supported

BLC

Supported

EIS

Supported

OSD

Up to 8 OSDs

Privacy Mask

Up to 24 areas

ROI

Up to 8 areas

Motion Detection

Up to 4 areas

Smart

General Function

Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication

Audio

Audio Compression

G.711

Two-way audio

Supported

Suppression

Supported

Sampling Rate

8KHZ

Storage

Edge Storage

Micro SD, up to 256 GB

Network Storage

ANR

Network

Protocols

IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS

Compatible Integration

ONVIF (Profile S, Profile G, Profile T), API

Pan & Tilt

Pan Range

360° (endless)

Pan Speed

0.1°/s ~ 240°/s

Preset speed: 300°/s

Tilt Range

-15° ~ 90° (auto reverse)

Tilt Speed

0.1° ~ 160°/s

Preset speed: 240°/s

Number of Presets

1024

Patrol

Preset patrol, route patrol, recorded patrol

Home Position

Supported

Drag-to-Zoom

Supported

Interface

Audio I/O

Audio cable

1 Input: impedance 35kΩ; amplitude 2V [p-p]

1 Output: impedance 600Ω; amplitude 2V [p-p]

Alarm I/O

2/1

Serial Port

1 RS485

Network

1 RJ45 10M/100M Base-TX Ethernet

Video Output

1 BNC, impedance 75Ω; amplitude 1V [p-p]

General

Power

AC 24V (Default)±25%, DC 24V±25%

Power consumption: 12 ~ 46W

Dimensions (Ø x H)

Ø 227 x 359.4mm (Ø8.9€ x 14.2€)

Operating Conditions

-40°C ~ 70°C (-40°F ~ 158°F), Humidity: ‰¤95% RH (non-condensing)

Ingress Protection

IP66

Reset Button

Supported
