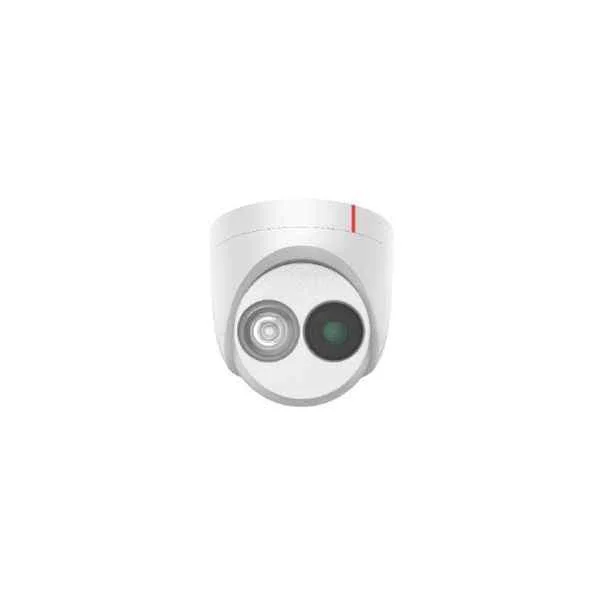

IPC6522-Z30

IPC6522-Z30 Specification

Image Sensor

1/2.8€œ 3MP Progressive Scan CMOS

Max. Image Resolution

1920(H) 1080(V)

Min. Illumination

Color : 0.05Lux @ (F1.6,AGC ON) B/W : 0.01Lux @(F1.6,AGC ON)

Day &Night Mode

Auto(ICR)/Color/ B/W

Electronic shutter speed

1 ~ 1/10,000s

White Balance

Auto/Manual /ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp

Wide Dynamic Range

Supported

Backlight compensation

Supported

Noise reduction

3D Noise reduction

Focal Length

4.3mm ~ 129.0mm

Zoom

Optical zoom: 30X, Digital zoom: 16x

Aperture Range

F1.6(Wide-end) ~ F5.0(Tele-end)

Min. Working Distance

10 ~ 1500mm (Wide-Tele)

Angle of View

Horizontal: 65.1°(Wide-end) ~ 2.34° (Tele-end) Vertical: Wide 35°, Tele 1.7°

Rotate Range

Pan: 0° ~ 360°, Tilt: -5° ~ 90°(Auto-Rotate）

Horizontal rotation speed

Pan Manual Speed: 0.1°/s ~ 250°/s; Pan Preset Speed: 300°/s

Vertical rotation speed

Tilt Manual Speed: 0.1°/s ~ 150°/s, Tilt Preset Speed: 200°/s

Tour scan

8 scan lines and 32 preset positions for each scan line

Pattern scan

A maximum of 4 scan lines and 10 minutes for each scan line

Number of Preset

256

Park Action

Preset / Patrol / Pattern / Pan scan / Tilt scan / Random scan / Frame scan / Panorama scan

Scheduled Task

Preset / Patrol / Pattern / Pan scan / Tilt scan / Random scan / Frame scan / Panorama scan/Dome reboot/Self-test action

preset positions

256

Image Compression

H.264 MP, MJPEG

Resolution and Frame rate

Main Stream: 25fps (19201080), 25fps (1280720); 30fps (19201080), 30fps (1280720) Sub Stream: 25fps (704576), 25fps (352288), 25fps (320240); 30fps (704576), 30fps (352288), 30fps (320240)

Video Bitrate

32K ~ 12M

ROI Encoding

Supported

Power-off Memory

Restore to the position(keep 3 minutes) before power off

PU access protocol

ONVIF 2.2

network protocol

IPv4/IPv6,HTTP,HTTPS,802.1x,Qos,FTP,SMTP,UPnP,SNMP,DNS,DDNS,NTP,RTSP,RTP,TCP/IP,DHCP,PPPoE

Multiple streams

Main Stream/Sub Stream

Communication Interface

1 RJ45 10M/100M adaptable Ethernet interface

Audio interface

1-channel audio input/1-channel audio Output

Audio Encoding Format

G.711/G.726/MP2L2

Voice communication

Voice Intercom (Pick-up is needed), Voice broadcasting, Channel Associated Voice

Storage Interface

Micro SD Card (32G)

Security Measures

User authentication (ID and PW),Host authentication (MAC address), HTTPS Encryption, IEEE 802.1x NAC

Front-end Recording

Support SD card schedule recording, alarm recording, and local playback

MTU

Default: 1500 (configuration range: 1280 ~ 1500)

Alarm Linkage

Alarm Trigger: motion detection, tampering alarm. Motion detection linkage: notify surveillance center, send e-mail, upload to the FTP, video linkage. Tampering detection linkage: notify surveillance center, send e-mail.

Max. Video Streams Accessinging

Support max. 6 channels video streams accessing

Web Browser

IE 7+, Chrome 18 +, Firefox 5.0 +, Safari 5.02 +, support multi-language; Windows XP,Windows7,Windows8

Other functions

Motion Detection, Privacy Masking, OSD, Digital Watermark, Front-end Capture, 3D positioning, IP Address Filtering

Power supply

AC24V ± 10%

Power Consumption

22W max(Heater Max. 8W)

Operating temperature / humidity

Operating temperature : -30 65 Operating humidity: 5% ~ 90% (Non-condensing)

Protection Level

IP66

Device Net Weight

5kg

Physical Dimension (mm)

Φ220305mm
