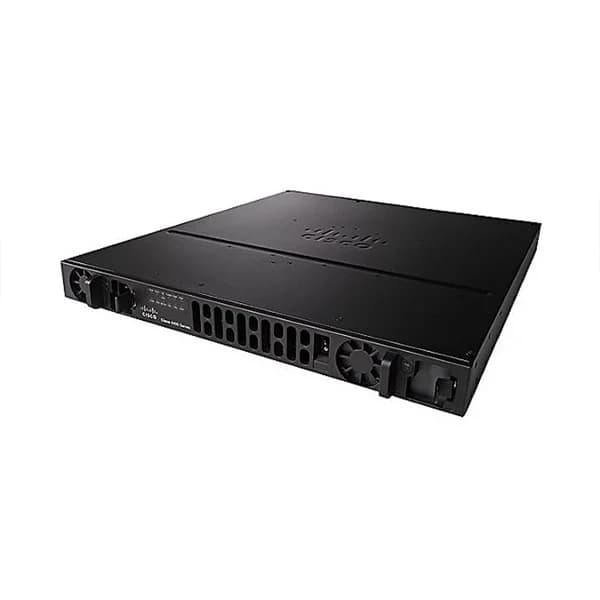

Inventory Delivered By
E
Edward Hughes
5
Voice and security workloads handled smoothly. Stable enterprise performance.
ISR4431-VSEC/K9
Cisco ISR 4431 Bundle with UC & Sec Lic. PVDM4-64. CUBE-25
FEATURED DEAL
Name:
ISR4431-VSEC/K9
- Description:
- Cisco ISR 4431 Bundle with UC & Sec Lic. PVDM4-64. CUBE-25
- Rating:
Added to cart 28 times recently
- Availability:
In stock - Ready to Ship
- Brand:
- Cisco
- GTIN:
- 147663704798
- Condition:
- Warranty:
- 3
- List Price:
$27,137.00
- Price:
$12,138.0055.3% off
Quantity:
1
Business price:
3 Year Extended Warranty
Same-day Shipping
14-Day Money Back Guarantee
Shipping:
Payment:
3 Year Extended Warranty
Same-day Shipping
14-Day Money Back Guarantee
Need Additional Discount on Product?
Request a quote below - Get Exclusive Pricing and Support.
Shipping:
Payment:
TRUSTED, TRIED, PROVEN
Officially Accredited
& Verified By
Next-Gen IT
Solutions Powered By
ISR4431-VSEC/K9 Overview
ISR4431-VSEC/K9 is a modular and high-performance enterprise router engineered for branch offices, featuring a robust architecture with integrated security enhancements and redundant AC power supply options. It supports flexible WAN and LAN interfaces through integrated and expansion modules that enable diverse connectivity and optimized data traffic management.
ISR4431-VSEC/K9 delivers comprehensive integrated services including voice, video, and WAN optimization while offering advanced VPN capabilities such as IPSec, SSL VPN, GRE, DMVPN, and FlexVPN. With a throughput capacity of up to 1 Gbps, built-in firewall and intrusion prevention features, and a design centered on redundancy and scalability, this router is ideally suited for enterprise use cases requiring secure, high-performance network connectivity.
ISR4431-VSEC/K9 price is $12,138.00, a 55.3% saving from the Cisco list price of $27,137.00. ISR4431-VSEC/K9 is in stock and available for next-day dispatch. (terms applied)
Request bulk order quote for ISR4431-VSEC/K9 for additional pricing. Browse the full Router Isr 4000 series or explore all Cisco products.
ISR4431-VSEC/K9 Specifications
- Product Type
- Enterprise Router
- VPN Support
- IPSec / SSL VPN / GRE / DMVPN / FlexVPN / N/A
- Power Source
- AC Power Supply / Redundant
- Routing Protocols
- OSPF / BGP / EIGRP / MPLS / IS-IS / RIP / Static Routing / N/A
- Broadband
- N/A
- Architecture
- Modular
- WAN Configuration
- Dual WAN
- WAN Ports
- Modular WAN
- LAN Ports
- Modular LAN
- Ethernet Technology
- 10/100/1000
- Wi-Fi Standard
- N/A
- Connectivity Type
- Wired
- Network Protocols
- IPv4, IPv6, MPLS
- Remote Management
- SSH, Telnet, SNMP, NetConf
- Compliance Standards
- FCC, CE, UL
- Wireless Support
- No
- Speed/Capacity
- Gigabit
- Firewall Features
- Yes
- Features
- VPN / Firewall / IPS / Intrusion Prevention / IPv6 Compatible
- Use Case
- Enterprise
- Management
- Managed
- Form Factor
- Rack-mount
- Integrated Services
- Voice / Video / WAN Optimization
- High Availability Support
- Supported
- Safety
- UL Listed
- EMC
- FCC, CE
- Telecom
- N/A
- Throughput Capacity
- 1 Gbps
- QoS Features
- Supported
- Built-in Security Features
- Firewall / Intrusion Prevention / Malware Protection
- Expansion Slots
- NIM
- Modular Slots Available
- 3+ Slots
- Stacking Capability
- Yes
- 5G Support
- No
- Memory
- 4 GB
- Flash Memory
- 2 GB
- Interface Ports
- RJ-45 / SFP / Combo Ports
- Power
- 350 W
- Device Type
- Router
- Product Name
- Cisco ISR4431-VSEC/K9
- Height
- N/A
- Width
- N/A
- Depth
- N/A
- Weight
- N/A
ISR4431-VSEC/K9 Use Case
Secure Global Branch Connectivity for Retail Chains with ISR4431-VSEC/K9
A multinational retail chain deploys the Cisco ISR 4431 Bundle with UC & Sec Lic, PVDM4-64 and CUBE-25 at 200+ branch stores to establish encrypted MPLS and DMVPN tunnels. By integrating advanced firewall, intrusion prevention and site-to-site VPN on a single platform, the solution delivers PCI-DSS compliant checkout, real-time inventory synchronization and unified VoIP across all locations—reducing security incidents by 70% and cutting WAN management costs by 30%.
Carrier-Grade SIP Trunking for Contact Centers Using CUBE-25
A 500-agent financial services contact center leverages the Cisco ISR 4431 Bundle with UC & Sec Lic, PVDM4-64 and CUBE-25 to consolidate legacy PRI trunks into a redundant SIP trunk architecture. CUBE-25 provides protocol normalization, direct PSTN routing and centralized session control, ensuring 99.99% call uptime, 4:1 trunk utilization improvements and a 25% reduction in monthly carrier fees—all while maintaining PCI and FINRA compliance.
Scalable UC Migration to Hybrid Cloud for Distributed Enterprises
A global professional services firm implements the Cisco ISR 4431-VSEC/K9 with UC & Sec Lic, PVDM4-64 and CUBE-25 to seamlessly transition 1,200 users from legacy PBX to a hybrid cloud UC platform. The integrated media modules and voice licensing accelerate SIP registration, call routing and high-definition media transcoding, yielding a 40% faster deployment, a 50% reduction in on-premises hardware footprint and a 20% uplift in voice quality (MOS >4.1).
Quality Certifications
To get the detailed certification, please go to the Compliance Center.
Product Comparison Table
 ISR4431-VSEC/K9 |  C1-CISCO4351/K9 |  C1-CISCO4221/K9 |  ISR4451-X-VSEC/K9 |  ISR4461-AXV/K9 | |
|---|---|---|---|---|---|
| 5G Support | No | No | No | No | No |
| Architecture | Modular | Modular | Fixed | Modular | Modular |
| Broadband | N/A | N/A | N/A | N/A | N/A |
| Built-in Security Features | Firewall / Intrusion Prevention / Malware Protection | Firewall / Intrusion Prevention / Malware Protection | Firewall / Intrusion Prevention / Malware Protection | Firewall / Intrusion Prevention / Malware Protection | Firewall / Intrusion Prevention / Malware Protection |
| Compliance Standards | FCC, CE, UL | FCC / CE / UL | FCC, CE, UL | FCC / CE / UL | FCC / CE / UL |
| Connectivity Type | Wired | Wired | Wired | Wired | Wired |
| Depth | N/A | 11.5 inches | 10.1 inches | 18.03 inches | N/A |
| Device Type | Router | Router | Router | Router | Router |
| EMC | FCC, CE | N/A | FCC, CE | N/A | N/A |
| Ethernet Technology | 10/100/1000 | 10/100/1000 | 10/100/1000 | 10/100/1000 | 10/100/1000 |
| Expansion Slots | NIM | EHWIC | EHWIC | NIM / EHWIC | EHWIC / NIM |
| Features | VPN / Firewall / IPS / Intrusion Prevention / IPv6 Compatible | VPN / VoIP / IPv6 Compatible / Firewall / MPLS | VPN / VoIP / IPv6 Compatible / Firewall | VPN / VoIP / IPv6 Compatible / Firewall / MPLS | VPN / Firewall / IPv6 Compatible / QoS |
| Firewall Features | Yes | Yes | Yes | Yes | Yes |
| Flash Memory | 2 GB | 2 GB | 256 MB | 1 GB | 1 GB |
| Form Factor | Rack-mount | Rack-mount | Rack-mount | Rack-mount | Rack-mount |
| Height | N/A | 1.73 inches | 1.73 inches | 2.91 inches | N/A |
| High Availability Support | Supported | Supported | Supported | Supported | Supported |
| Integrated Services | Voice / Video / WAN Optimization | Voice / Video / WAN Optimization | Voice / Video | Voice, Video, WAN Optimization, Security | Voice / Video / WAN Optimization |
| Interface Ports | RJ-45 / SFP / Combo Ports | RJ-45 / Combo Ports | RJ-45 | RJ-45, SFP | RJ-45 / SFP / Combo Ports |
| LAN Ports | Modular LAN | 4 LAN Ports | 4 LAN Ports | 4 LAN Ports | 4 LAN Ports |
| Management | Managed | Managed | Managed | Managed | Managed |
| Memory | 4 GB | 4 GB | 2 GB | 8 GB | 4 GB |
| Modular Slots Available | 3+ Slots | 2 Slots | 2 Slots | 2 Slots | 3+ Slots |
| Network Protocols | IPv4, IPv6, MPLS | IPv4 / IPv6 | IPv4, IPv6, MPLS | IPv4, IPv6 | IPv4 / IPv6 |
| Power | 350 W | 65 Watt | 80 Watt | 335 W | 370W |
| Power Source | AC Power Supply / Redundant | AC Power Supply / Redundant | AC Power Supply / N/A | AC Power Supply / DC Power Supply / Redundant | AC Power Supply / Redundant |
| Product Name | Cisco ISR4431-VSEC/K9 | C1-CISCO4351/K9 | Cisco 4221 Integrated Services Router | Cisco ISR4451-X-VSEC/K9 | Cisco ISR 4461 Integrated Services Router |
| Product Type | Enterprise Router | Enterprise Router | Enterprise Router | Enterprise Router | Enterprise Router |
| QoS Features | Supported | Supported | Supported | Supported | Supported |
| Remote Management | SSH, Telnet, SNMP, NetConf | SNMP / CLI / NETCONF | CLI, WebUI, SNMP | Cisco IOS XE CLI / Web GUI | SSH / Telnet / SNMP |
| Routing Protocols | OSPF / BGP / EIGRP / MPLS / IS-IS / RIP / Static Routing / N/A | OSPF / BGP / EIGRP / IS-IS / RIP / Static Routing | OSPF / BGP / EIGRP / RIP / Static Routing | OSPF / BGP / EIGRP / IS-IS / RIP / Static Routing | OSPF / BGP / EIGRP / IS-IS / RIP / Static Routing |
| Safety | UL Listed | N/A | UL, CE | N/A | N/A |
| Speed/Capacity | Gigabit | Gigabit | Gigabit | Gigabit | Gigabit |
| Stacking Capability | Yes | No | No | Yes | Yes |
| Telecom | N/A | N/A | N/A | N/A | N/A |
| Throughput Capacity | 1 Gbps | 400 Mbps | 0.075 Gbps | 2 Gbps | 1 Gbps |
| Use Case | Enterprise | Enterprise | Enterprise | Enterprise | Enterprise |
| VPN Support | IPSec / SSL VPN / GRE / DMVPN / FlexVPN / N/A | IPSec / DMVPN / FlexVPN | IPSec / DMVPN / FlexVPN / N/A | IPSec / SSL VPN / DMVPN / FlexVPN | IPSec / SSL VPN / DMVPN / FlexVPN |
| WAN Configuration | Dual WAN | Dual WAN | Dual WAN | Dual WAN | Dual WAN |
| WAN Ports | Modular WAN | 2 WAN | 2 WAN | 4 WAN | 2 WAN |
| Weight | N/A | 14 lbs | 15.7 lbs | 29.76 lbs | N/A |
| Wi-Fi Standard | N/A | N/A | N/A | N/A | N/A |
| Width | N/A | 17.5 inches | 17.3 inches | 17.32 inches | N/A |
| Wireless Support | No | No | No | No | No |
Reviews & Ratings
P
Patrick Sullivan
4
Good balance of throughput and UC features. Easy to manage.
C
Charles Newman
5
Cisco reliability with consistent call quality.
H
Henry Collins
3
Strong VSEC performance for branch deployments.
W
William Dawson
4
Dependable ISR for secure voice environments.
Questions & Answers
What is the Cisco ISR 4431 Bundle with UC & Sec Lic (ISR4431-VSEC/K9)?
The ISR4431-VSEC/K9 bundle combines a Cisco ISR 4431 router with Unified Communications (UC) and Security (SEC) licenses, PVDM4-64 DSP module for voice, and CUBE-25 session license for secure voice and video connectivity.
What performance and throughput does the Cisco ISR 4431 deliver?
The Cisco ISR 4431 supports up to 1 Gbps of aggregate throughput and offers embedded hardware acceleration for routing, encryption and QoS to ensure low latency and high reliability in enterprise branch deployments.
How many voice channels does the PVDM4-64 module support?
The PVDM4-64 DSP module provides up to 64 digital signal processor channels for concurrent voice transcoding, conferencing and media termination across SIP and H.323 sessions.
What security features are included in the UC & Sec license?
The UC & Sec license includes advanced firewall, IPS, URL filtering, VPN (DMVPN, FlexVPN), Cisco TrustSec, Secure Boot and Cisco Umbrella integration for comprehensive branch security.
