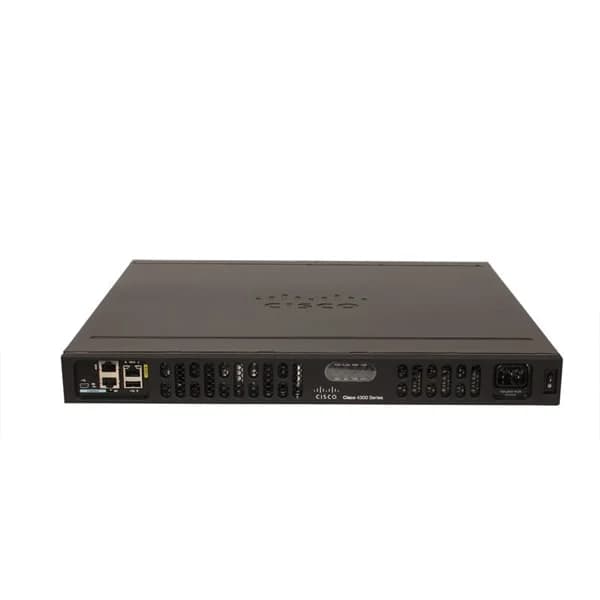

Name: Cisco ISR 4331 Bundle with UC & Sec Lic. PVDM4-32. CUBE-10
Brand: Cisco
SKU: ISR4331-VSEC/K9
Price: 4314.00 USD
Availability: InStock
Rating: 4.2 (5 reviews)

Question 1

What is Cisco ISR 4331 Bundle with UC & Sec Lic (ISR4331-VSEC/K9)?

Accepted Answer

A modular 1RU branch router that combines advanced routing, integrated security, unified communications DSPs (PVDM4-32), and CUBE-10 session border control in one platform.

Question 2

What are the key features of the Cisco ISR4331-VSEC/K9 router?

Accepted Answer

Integrated firewall, IPS, VPN, malware defense, unified communications, PVDM4-32 voice DSPs, up to 100 Mbps throughput, two NIM slots, two SM-X slots, and SD-WAN support.

Question 3

What performance can I expect from the Cisco ISR 4331?

Accepted Answer

Up to 100 Mbps aggregate throughput with services enabled, scalable to 130 Mbps in boost mode with security and UC features active.

Question 4

How many concurrent IPsec VPN tunnels does this bundle support?

Accepted Answer

Supports up to 250 concurrent IPsec VPN tunnels under the Security Bundle license for secure site-to-site and remote access connectivity.

Question 5

How many voice channels are supported by the PVDM4-32 module?

Accepted Answer

The PVDM4-32 module supports up to 32 T1/E1 timeslots or up to 96 digital voice sessions for high-density call handling.

Question 6

What unified communications capabilities are included in the UC license?

Accepted Answer

Provides media termination points, conferencing, transcoding, and support for SIP, H.323, and SCCP protocols without additional feature packs.

Question 7

Which security features are included in the Security License?

Accepted Answer

Includes advanced firewall, intrusion prevention (IPS), URL filtering, malware defense, VPN acceleration, and Secure Boot on Cisco IOS XE.

Question 8

What role does CUBE-10 play in this bundle?

Accepted Answer

Cisco Unified Border Element (CUBE-10) delivers secure SIP trunking, call routing, and media interworking for up to 10 simultaneous sessions.

Question 9

Which network modules are supported on the ISR 4331?

Accepted Answer

Two Network Interface Module (NIM) slots and two Enhanced Service Module (SM-X) slots support modular WAN, voice, and LAN connectivity options.

Question 10

Does the ISR4331 support Cisco SD-WAN?

Accepted Answer

Yes, it runs Cisco IOS XE with integrated Cisco SD-WAN for centralized policy management, segmentation, and real-time analytics.

Question 11

What power supply options are available for the ISR4331?

Accepted Answer

Comes with a single AC power supply; optional field-replaceable AC redundant and DC power supplies are available for high availability.

Question 12

What are the physical dimensions and weight of this router?

Accepted Answer

Dimensions: 1.75″ H x 17.3″ W x 15.5″ D (4.4 x 43.8 x 39.4 cm); Weight: 9 lbs (4.1 kg), fits standard 19″ racks.

Question 13

What deployment scenarios are ideal for the ISR4331-VSEC/K9?

Accepted Answer

Designed for branch offices and mid-market enterprises needing integrated routing, security, and voice services for up to 250 users.

Question 14

What QoS capabilities does the ISR 4331 offer?

Accepted Answer

Supports advanced QoS with 16 hardware queues, traffic shaping, policing, marking, and priority queuing to guarantee application performance.

Question 15

How do I apply the UC and Security licenses on the ISR4331?

Accepted Answer

Register via Cisco Smart Licensing using CLI commands ‘license smart register’, then use ‘license boot level router usp+sec’ and reboot to activate.

Question 16

Is cloud management available for this ISR 4331 bundle?

Accepted Answer

Yes, it integrates with Cisco DNA Center and Cisco vManage for centralized provisioning, monitoring, and policy orchestration.

	ISR4331-VSEC/K9	ISR4321-V/K9	C1-CISCO4321/K9	ISR4461-VSEC/K9	ISR4461-AX/K9
5G Support	No	No	No	No	No
Architecture	Modular	Fixed	Modular	Modular	Fixed
Broadband	N/A	N/A	N/A	N/A	N/A
Built-in Security Features	Firewall / Intrusion Prevention / Malware Protection	Firewall / Intrusion Prevention	Firewall / Intrusion Prevention	Firewall / Intrusion Prevention / Malware Protection	Firewall, Intrusion Prevention, Malware Protection
Compliance Standards	FCC / CE / UL	FCC, CE	FCC / CE	FCC, CE, RoHS	FCC, CE, RoHS
Connectivity Type	Wired	Wired / Ethernet	Wired	Wired	Wired / Wireless / Ethernet
Depth	15.1 inches	16.1 inches	20 inches	18.3 inches	N/A
Device Type	Router	Router	Router	Router	Router
EMC	N/A	N/A	N/A	N/A	N/A
Ethernet Technology	10/100/1000	10/100/1000	10/100/1000	10/100/1000	10/100/1000
Expansion Slots	NIM	EHWIC	NIM / EHWIC	EHWIC	EHWIC, NIM
Features	VPN / IPv6 Compatible / Firewall / MPLS	VPN / VoIP / IPv6 Compatible / Firewall / MPLS	VPN / VoIP / IPv6 Compatible / Firewall / WAN Optimization	VPN / VoIP / IPv6 Compatible / Firewall / MPLS	VPN, Voice, Video, IPv6 Compatible, Firewall, POE, Integrated Services
Firewall Features	Yes	Yes	Yes	Yes	Yes
Flash Memory	512 MB	256 MB	512 MB	2 GB	1 GB
Form Factor	Rack-mount	Rack-mount	Rack-mount	Rack-mount	Rack-mount
Height	1.75 inches	1.75 inches	1.75 inches	1.75 inches	N/A
High Availability Support	Supported	Supported	Supported	Supported	Supported
Integrated Services	Voice / Video / WAN Optimization	Voice / Video	Voice / Video / WAN Optimization	Voice / Video / WAN Optimization	Voice, Video, WAN Optimization
Interface Ports	RJ-45	RJ-45	RJ-45 / SFP	RJ-45 / SFP	RJ-45, SFP, Combo Ports
LAN Ports	Modular LAN	4 LAN Ports	Modular LAN	4 LAN Ports	4 LAN Ports
Management	Managed	Managed	Managed	Managed	Managed
Memory	4 GB	2 GB	1 GB	4 GB	4 GB
Modular Slots Available	2 Slots	2 Slots	2 Slots	2 Slots	2 Slots
Network Protocols	IPv4, IPv6	IPv4, IPv6	IPv4, IPv6	IPv4, IPv6, MPLS	OSPF, BGP, EIGRP, RIP, Static Routing
Power	130 W	65W	110 W	305 W	350 W
Power Source	AC Power Supply / Redundant	AC Power Supply / Redundant	AC Power Supply with Redundant Options	AC Power Supply / Redundant	AC Power Supply with Redundant Option
Product Name	Cisco ISR 4331 Secure Integrated Services Router	Cisco ISR4321 Integrated Services Router	Cisco 4321 Integrated Services Router (C1-CISCO4321/K9)	Cisco ISR 4461 Integrated Services Router - Security Enhanced	ISR4461-AX/K9
Product Type	Enterprise Router	Enterprise Router	Enterprise Router	Enterprise Router	Enterprise Router
QoS Features	Supported	Supported	Supported	Supported	Supported
Remote Management	SSH, Telnet, SNMP	SSH, Telnet, SNMP	SSH / Telnet / SNMP	SSH, Telnet, SNMP, NetConf	CLI, HTTP, SNMP
Routing Protocols	OSPF / BGP / EIGRP / RIP / Static Routing	OSPF / BGP / EIGRP / MPLS / IS-IS / RIP / Static Routing	OSPF / BGP / EIGRP / RIP / Static Routing	OSPF / BGP / EIGRP / MPLS / IS-IS / RIP / Static Routing	OSPF / BGP / EIGRP / RIP / Static Routing
Safety	N/A	N/A	N/A	N/A	N/A
Speed/Capacity	Gigabit	Gigabit	Gigabit	Gigabit	Gigabit
Stacking Capability	No	No	No	No	Yes
Telecom	N/A	N/A	N/A	N/A	N/A
Throughput Capacity	0.1 Gbps	300 Mbps	0.15 Gbps	1 Gbps	1 Gbps
Use Case	Enterprise	Enterprise	Enterprise	Enterprise	Enterprise / Branch Office
VPN Support	IPSec / SSL VPN / DMVPN / FlexVPN	IPSec / SSL VPN / DMVPN / FlexVPN	IPSec / SSL VPN / DMVPN / FlexVPN	IPSec / SSL VPN / GRE / DMVPN / FlexVPN	IPSec / SSL VPN / DMVPN / FlexVPN / N/A
WAN Configuration	Dual WAN	Dual WAN	Dual WAN	Dual WAN	Dual WAN
WAN Ports	Modular WAN	2 WAN	2 WAN	2 WAN	2 WAN
Weight	11 lbs	12.3 lbs	14 lbs	27 lbs	N/A
Wi-Fi Standard	N/A	N/A	N/A	N/A	WiFi 6 (802.11ax)
Width	17.5 inches	17.3 inches	17.5 inches	17.5 inches	N/A
Wireless Support	No	No	No	No	Yes
