Lenovo SR530 Intel 3204/16GB/No disk/Support 4x3.5/530i/2x1G/550W
Original Stock
Ready to Ship
Lenovo Server SR530 1x3204 6C 1.9GHz, 1x16G, No disk, Suppor...
FEATURED DEAL
Name:
Lenovo SR530 Intel 3204/16GB/No disk/Support 4x3.5/530i/2x1G/550W
- Description:
- Lenovo Server SR530 1x3204 6C 1.9GHz, 1x16G, No disk, Support 4x3.5, 530i, 2x1G, 550W, 3Y 7x24
- Rating:
Added to cart 28 times recently
- Availability:
In stock - Ready to Ship
- Brand:
- Lenovo
- GTIN:
- 889488476312
- Condition:
3 Year Extended Warranty
Same-day Shipping
14-Day Money Back Guarantee
Shipping:
Payment:
3 Year Extended Warranty
Same-day Shipping
14-Day Money Back Guarantee
Need Additional Discount on Product?
Request a quote below - Get Exclusive Pricing and Support.
Shipping:
Payment:
TRUSTED, TRIED, PROVEN
Officially Accredited
& Verified By
Next-Gen IT
Solutions Powered By
Lenovo SR530 Intel 3204/16GB/No disk/Support 4x3.5/530i/2x1G/550W Overview

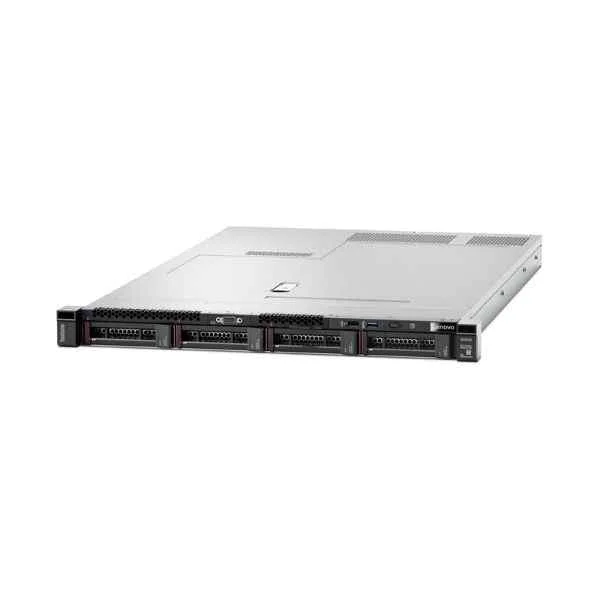

Lenovo SR530 Intel 3204/16GB/No disk/Support 4x3.5/530i/2x1G/550W is a 1U rackmount server powered by an Intel Xeon Scalable processor (model 3204) that is configured in a dual‐processor (2P) scalable system. It comes equipped with ECC DDR4 memory – 16GB pre‐installed and expandable up to 256 GB via 8 DIMM slots – and offers 4 drive bays designed exclusively for 3.5‑inch storage devices with RAID 0, RAID 1, and RAID 10 support.
Engineered for demanding data center, virtualization, file server, and application server workloads, this server features 3 PCIe expansion slots with PCIe 3.0 support, dual 1GbE LAN ports, and a single 550W power supply paired with active cooling. Remote management is enabled through IPMI, and the system is certified to run a wide range of operating systems including Windows Server, VMware ESXi, Ubuntu, RHEL, SUSE, CentOS, or even No OS for custom installations.
Lenovo SR530 Intel 3204/16GB/No disk/Support 4x3.5/530i/2x1G/550W price is is available on request. Get immediate quote.
Request bulk order quote for Lenovo SR530 Intel 3204/16GB/No disk/Support 4x3.5/530i/2x1G/550W for additional pricing. Browse the full Lenovo Thinksystem Sr530 Rack Servers series or explore all Lenovo products.
Lenovo SR530 Intel 3204/16GB/No disk/Support 4x3.5/530i/2x1G/550W Specifications
- Product Type
- Server
- Form Factor
- Rackmount
- Rack Units
- 1U
- Processor Brand
- Intel
- Processor Series
- Intel Xeon Scalable
- Processor Generation
- Xeon 3rd Gen
- Use Case
- Virtualization / File Server / Application Server
- CPU Socket
- LGA 4189
- Scalability
- 2P
- Max Cores per CPU
- 8
- Max Threads per CPU
- 16
- RAM Type
- ECC DDR4
- RAM Slots
- 8
- Max RAM Capacity
- 256 GB
- Storage Type
- SATA HDD / SAS HDD
- Storage Bays
- 4
- Drive Bay Size
- 3.5-inch
- Hot-Swap Support
- Yes
- RAID Support
- RAID 0 / RAID 1 / RAID 10
- PCIe Slots
- 3
- PCIe Version
- PCIe 3.0
- Network Interface
- 1GbE
- LAN Ports
- 2
- Remote Management
- IPMI
- Power Supply
- Single
- Power Supply Wattage
- 550W
- Cooling
- Active
- Operating System
- No OS
- Virtualization Ready
- Yes
- GPU Support
- No
- Rail Kit Included
- N/A
- Product Name
- Lenovo SR530 Intel 3204/16GB/No disk/Support 4x3.5/530i/2x1G/550W
- Height
- 1.7 inches
- Width
- 17.5 inches
- Depth
- 28 inches
- Weight
- 38 lbs
Quality Certifications
To get the detailed certification, please go to the Compliance Center.
Product Comparison Table
| Lenovo SR530 Intel 3204/16GB/No disk/Support 4x3.5/530i/2x1G/550W |  Lenovo SR530 Intel 4208/16GB/No disk/Support 8x2.5/730i w/1GB cache/ 2x1G/550W |  Lenovo SR530 Intel 4208/16GB/No disk/Support 4x3.5/530i/2x1G/550W |  Lenovo SR530 Intel 3204/16GB/No disk/Support 8x2.5/730i w/1GB cache/2x1G/550W | |
|---|---|---|---|---|
| CPU Socket | LGA 4189 | N/A | N/A | N/A |
| Cooling | Active | Active | Active | Active |
| Depth | 28 inches | 27 inches | 28 | 28.35 inches |
| Drive Bay Size | 3.5-inch | 2.5-inch | 3.5-inch | 2.5-inch |
| Form Factor | Rackmount | Rackmount | Rackmount | Rackmount |
| GPU Support | No | No | No | No |
| Height | 1.7 inches | 1.7 inches | 3.5 | 1.73 inches |
| Hot-Swap Support | Yes | Yes | Yes | Yes |
| LAN Ports | 2 | 2 | 2 | 2 |
| Max Cores per CPU | 8 | 8 | 8 | N/A |
| Max RAM Capacity | 256 GB | 512 GB | 512 GB | 128 GB |
| Max Threads per CPU | 16 | 16 | 16 | N/A |
| Network Interface | 1GbE | 1GbE | 1GbE | 1GbE |
| Operating System | No OS | No OS | No OS | No OS |
| PCIe Slots | 3 | 4 | 3 | 2 |
| PCIe Version | PCIe 3.0 | PCIe 3.0 | PCIe 3.0 | PCIe 3.0 |
| Power Supply | Single | Single | Single | Single |
| Power Supply Wattage | 550W | 550W | 550W | 550W |
| Processor Brand | Intel | Intel | Intel | Intel |
| Processor Generation | Xeon 3rd Gen | N/A | Xeon 3rd Gen | N/A |
| Processor Series | Intel Xeon Scalable | Intel Xeon Scalable | Intel Xeon Scalable | Intel Xeon E |
| Product Name | Lenovo SR530 Intel 3204/16GB/No disk/Support 4x3.5/530i/2x1G/550W | Lenovo SR530 Intel 4208/16GB/No disk/Support 8x2.5/730i w/1GB cache/ 2x1G/550W | Lenovo SR530 Intel 4208/16GB/No disk/Support 4x3.5/530i/2x1G/550W | Lenovo SR530 Intel 3204/16GB/No disk/Support 8x2.5/730i w/1GB cache/2x1G/550W |
| Product Type | Server | Server | Server | Server |
| RAID Support | RAID 0 / RAID 1 / RAID 10 | RAID 0 / RAID 1 / RAID 5 / RAID 10 / RAID 50 | RAID 0/RAID 1/RAID 10 | RAID 0 / RAID 1 / RAID 5 / RAID 10 |
| RAM Slots | 8 | 8 | 8 | 4 |
| RAM Type | ECC DDR4 | ECC DDR4 | ECC DDR4 | ECC DDR4 |
| Rack Units | 1U | 1U | 2U | 1U |
| Rail Kit Included | N/A | N/A | Yes | Yes |
| Remote Management | IPMI | IPMI | IPMI | IPMI |
| Scalability | 2P | 1P | 1P | 1P |
| Storage Bays | 4 | 8 | 4 | 8 |
| Storage Type | SATA HDD / SAS HDD | SATA HDD | SATA HDD | SATA HDD |
| Use Case | Virtualization / File Server / Application Server | Virtualization / File Server / Application Server | Virtualization | Virtualization / File Server / Application Server |
| Virtualization Ready | Yes | Yes | Yes | Yes |
| Weight | 38 lbs | 35 lbs | 40 | 31.8 lbs |
| Width | 17.5 inches | 19 inches | 19 | 17.32 inches |
Questions & Answers
What CPU powers the Lenovo SR530 Intel 3204/16GB/No disk server?
The Lenovo SR530 is equipped with an Intel® Xeon® Silver 3204 processor, featuring 6 cores at 1.9 GHz for balanced performance and efficiency.
How much memory comes installed and supported in this SR530 configuration?
This SKU ships with 16 GB of DDR4 memory (1 DIMM) and supports up to 1 TB of ECC RDIMM across 16 slots for scalable performance.
Does the SR530 Intel 3204/16GB/No disk configuration include any storage drives?
No, this model is sold without internal disks, allowing you to select and install up to four 3.5″ SATA or SAS drives.
What drive bays and form factors does the server support?
The SR530 chassis supports up to four hot-swappable 3.5″ drive bays, accommodating both SATA and SAS HDDs or SSDs.
Which RAID levels are available with the integrated controller?
The server includes the LSI 530i RAID controller, offering hardware RAID 0, 1, and 10 for data protection and performance.
What network connectivity is built into the Lenovo SR530?
This configuration provides two integrated 1 GbE RJ-45 ports for primary networking and out-of-band management.
What power supply unit is included in this SKU?
A single 550 W 80 PLUS Platinum hot-swap power supply is installed, balancing energy efficiency with reliability.
What warranty and support services come with the SR530?
The server includes a 3-year, 7×24 onsite warranty and Lenovo Premier Support for rapid hardware replacement and technical assistance.
Which management tools are available for remote monitoring and control?
Lenovo XClarity Controller is embedded for agent-free remote management, firmware updates, and health monitoring via web or RESTful API.
What operating systems are certified on the Lenovo SR530?
The SR530 supports Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi, and other major OS platforms.
Is the SR530 suitable for virtualization deployments?
Yes, with its 6-core Xeon processor, 16 GB RAM, and RAID options, the SR530 is optimized for small to medium virtualization workloads.
How many PCIe expansion slots does this server offer?
It features two PCIe 3.0 slots, enabling additional network, storage or accelerator cards for future growth.
What are the dimensions and form factor of the SR530?
The SR530 is a 1U rack server measuring 438 mm (W) × 482 mm (D) × 42.8 mm (H), ideal for standard data-center racks.
How energy-efficient is the SR530 configuration?
With an 80 PLUS Platinum PSU and low-power Intel Silver CPU, the SR530 delivers high performance with reduced power consumption.
Can I scale memory and storage as my business grows?
Absolutely. You can expand up to 1 TB of RAM and populate all four 3.5″ bays, plus add PCIe cards for networking or NVMe caching.
What are the ideal use cases for the Lenovo SR530 Intel 3204/16GB server?
The SR530 is ideal for SMB databases, virtualization, web-hosting, software-defined storage, and general-purpose computing in rack environments.
