Lenovo SR530 Intel 3204/16GB/No disk/Support 8x2.5/730i w/1GB cache/2x1G/550W
Lenovo Server SR530 1x3204 6C 1.9GHz, 1x16G, No disk, Suppor...
TRUSTED, TRIED, PROVEN
$5,000,000+
Inventory Delivered By
Officially Accredited
& Verified By
Next-Gen IT
Solutions Powered By

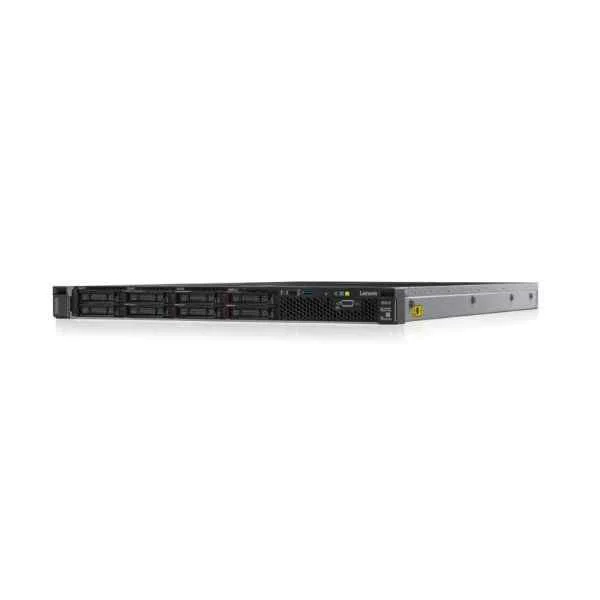

Lenovo SR530 Intel 3204/16GB/No disk/Support 8x2.5/730i w/1GB cache/2x1G/550W is a rackmount server that is engineered for efficient performance in stringent data center and virtualization environments. It supports an Intel Xeon E processor (single processor configuration) in a system designed for high reliability and scalability. With ECC DDR4 memory installed at 16GB and support for up to 128 GB via 4 DIMM slots, it caters to applications that require stable, error‐correcting processing. The server also features 2 PCIe slots (PCIe 3.0) to accommodate expansion cards, making it adaptable for additional functionality.
This server’s storage solution includes eight 2.5-inch drive bays with hot-swap support and integrated RAID capabilities via the 730i controller with a 1GB cache, allowing for flexible SATA HDD or SSD configurations (although no disk is pre-installed). It is equipped with dual 1GbE network ports, a single 550W power supply with active cooling, and remote management functionality via IPMI, making it ideal as a file server, application server, or virtualization host in modern IT infrastructures.
Lenovo SR530 Intel 3204/16GB/No disk/Support 8x2.5/730i w/1GB cache/2x1G/550W price is is available on request. Get immediate quote.
Request bulk order quote for Lenovo SR530 Intel 3204/16GB/No disk/Support 8x2.5/730i w/1GB cache/2x1G/550W for additional pricing. Browse the full Lenovo Thinksystem Sr530 Rack Servers series or explore all Lenovo products.
To get the detailed certification, please go to the Compliance Center.
| Lenovo SR530 Intel 3204/16GB/No disk/Support 8x2.5/730i w/1GB cache/2x1G/550W |  Lenovo SR530 Intel 3204/16GB/No disk/Support 4x3.5/530i/2x1G/550W |  Lenovo SR530 Intel 4208/16GB/No disk/Support 8x2.5/730i w/1GB cache/ 2x1G/550W |  Lenovo SR530 Intel 4208/16GB/No disk/Support 4x3.5/530i/2x1G/550W | |
|---|---|---|---|---|
| CPU Socket | N/A | LGA 4189 | N/A | N/A |
| Cooling | Active | Active | Active | Active |
| Depth | 28.35 inches | 28 inches | 27 inches | 28 |
| Drive Bay Size | 2.5-inch | 3.5-inch | 2.5-inch | 3.5-inch |
| Form Factor | Rackmount | Rackmount | Rackmount | Rackmount |
| GPU Support | No | No | No | No |
| Height | 1.73 inches | 1.7 inches | 1.7 inches | 3.5 |
| Hot-Swap Support | Yes | Yes | Yes | Yes |
| LAN Ports | 2 | 2 | 2 | 2 |
| Max Cores per CPU | N/A | 8 | 8 | 8 |
| Max RAM Capacity | 128 GB | 256 GB | 512 GB | 512 GB |
| Max Threads per CPU | N/A | 16 | 16 | 16 |
| Network Interface | 1GbE | 1GbE | 1GbE | 1GbE |
| Operating System | No OS | No OS | No OS | No OS |
| PCIe Slots | 2 | 3 | 4 | 3 |
| PCIe Version | PCIe 3.0 | PCIe 3.0 | PCIe 3.0 | PCIe 3.0 |
| Power Supply | Single | Single | Single | Single |
| Power Supply Wattage | 550W | 550W | 550W | 550W |
| Processor Brand | Intel | Intel | Intel | Intel |
| Processor Generation | N/A | Xeon 3rd Gen | N/A | Xeon 3rd Gen |
| Processor Series | Intel Xeon E | Intel Xeon Scalable | Intel Xeon Scalable | Intel Xeon Scalable |
| Product Name | Lenovo SR530 Intel 3204/16GB/No disk/Support 8x2.5/730i w/1GB cache/2x1G/550W | Lenovo SR530 Intel 3204/16GB/No disk/Support 4x3.5/530i/2x1G/550W | Lenovo SR530 Intel 4208/16GB/No disk/Support 8x2.5/730i w/1GB cache/ 2x1G/550W | Lenovo SR530 Intel 4208/16GB/No disk/Support 4x3.5/530i/2x1G/550W |
| Product Type | Server | Server | Server | Server |
| RAID Support | RAID 0 / RAID 1 / RAID 5 / RAID 10 | RAID 0 / RAID 1 / RAID 10 | RAID 0 / RAID 1 / RAID 5 / RAID 10 / RAID 50 | RAID 0/RAID 1/RAID 10 |
| RAM Slots | 4 | 8 | 8 | 8 |
| RAM Type | ECC DDR4 | ECC DDR4 | ECC DDR4 | ECC DDR4 |
| Rack Units | 1U | 1U | 1U | 2U |
| Rail Kit Included | Yes | N/A | N/A | Yes |
| Remote Management | IPMI | IPMI | IPMI | IPMI |
| Scalability | 1P | 2P | 1P | 1P |
| Storage Bays | 8 | 4 | 8 | 4 |
| Storage Type | SATA HDD | SATA HDD / SAS HDD | SATA HDD | SATA HDD |
| Use Case | Virtualization / File Server / Application Server | Virtualization / File Server / Application Server | Virtualization / File Server / Application Server | Virtualization |
| Virtualization Ready | Yes | Yes | Yes | Yes |
| Weight | 31.8 lbs | 38 lbs | 35 lbs | 40 |
| Width | 17.32 inches | 17.5 inches | 19 inches | 19 |
Consistent performance for virtualization. RAID cache improves responsiveness noticeably.
Well built server with reliable components. No downtime experienced so far.
Good storage performance and stable networking. Ideal for application hosting.
Meets our expectations for daily workloads. Lenovo support has been helpful.
Strong value server with enterprise features. Easy to manage remotely.
The Lenovo SR530 features a single Intel Xeon Silver 3204 6-core 1.9 GHz CPU, 16 GB DDR4 memory, no preinstalled drives, support for eight 2.5" hot-swap bays, an onboard 730i RAID controller with 1 GB cache, dual 1 Gb Ethernet ports and a 550 W PSU.
It comes with one Intel Xeon Silver 3204 processor (6 cores at 1.9 GHz), offering a balance of performance and power efficiency for mid-range workloads.
This configuration ships with 16 GB of DDR4 memory and can be expanded up to 1 TB using its eight DIMM slots to support more demanding applications.
No, the SR530 ships without drives so you can populate up to eight 2.5" SAS, SATA or NVMe hot-swap drives to meet your capacity or performance needs.
It supports up to eight 2.5" hot-swap SAS, SATA or NVMe drives, providing flexibility for high-performance SSDs or larger-capacity HDDs.
The server includes a Lenovo 730i RAID controller with 1 GB battery-backed cache, supporting RAID levels 0, 1, 5, 6, 10, 50 and 60 for data protection and performance.
It comes with two integrated 1 Gb Ethernet ports and offers PCIe slots for installing additional NICs or 10 Gb/25 Gb networking adapters.
A single 550 W 80 PLUS Platinum-rated power supply is installed for energy-efficient operation, with optional redundant PSU configurations available.
The SR530 includes a 3-year 7x24 onsite warranty with Lenovo Premier Support, offering rapid hardware replacement and expert technical assistance.
The server is certified for Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi and other leading OS platforms.
Yes, the Intel Xeon Silver 3204 CPU supports Intel VT-x and VT-d technologies, making it ideal for VMware, Hyper-V or KVM virtualization environments.
Lenovo XClarity Controller is integrated for out-of-band management, offering remote monitoring, firmware updates and automated alerts via web UI or RESTful API.
Yes, the SR530 is a 1U rack server compatible with standard 19" racks and includes sliding rails for easy installation and maintenance.
With its balanced CPU, flexible storage and robust RAID, it excels in virtualization, database, file and email services, as well as general-purpose computing.
Yes, the SR530 supports hot-swappable 2.5" drives and optional hot-swap power supplies to minimize downtime during maintenance.
Typical idle power draw is around 85 W, rising to approximately 350 W under full load, depending on the final configuration and workload.
You can add SAS/SATA/NVMe drives to free bays, install additional DDR4 DIMMs in empty slots and upgrade network capacity via PCIe network cards.
