Lenovo SR530 Intel 4208/16GB/No disk/Support 4x3.5/530i/2x1G/550W
Lenovo Server SR530 1x4208 8C 2.1GHz, 1x16G, No disk, Suppor...
TRUSTED, TRIED, PROVEN
$5,000,000+
Inventory Delivered By
Officially Accredited
& Verified By
Next-Gen IT
Solutions Powered By

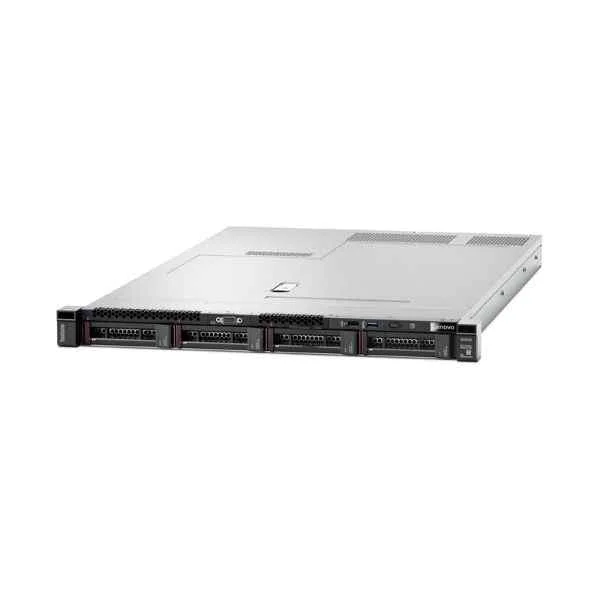

Lenovo SR530 Intel 4208/16GB/No disk/Support 4x3.5/530i/2x1G/550W is a reliable 2U rackmount server engineered for mission‐critical data center applications, virtualization environments, file serving, and application hosting. It is built around the Intel Xeon Scalable family – exemplified by the Gold 4208 processor – offering a single processor (1P) configuration with up to 8 cores and 16 threads, paired with ECC DDR4 memory in 8 DIMM slots that can scale up to 512 GB.
Optimized for expansion and flexibility, this Lenovo SR530 supports four 3.5-inch hot-swap drive bays for SATA HDDs and offers RAID configurations such as RAID 0, RAID 1, and RAID 10. In addition, it provides three PCIe 3.0 expansion slots, dual 1GbE LAN ports, a single 550W power supply, active cooling, and IPMI-based remote management. Pre-installed with no operating system, it allows enterprises to customize the software environment to meet specific workload and security requirements.
Lenovo SR530 Intel 4208/16GB/No disk/Support 4x3.5/530i/2x1G/550W price is is available on request. Get immediate quote.
Request bulk order quote for Lenovo SR530 Intel 4208/16GB/No disk/Support 4x3.5/530i/2x1G/550W for additional pricing. Browse the full Lenovo Thinksystem Sr530 Rack Servers series or explore all Lenovo products.
To get the detailed certification, please go to the Compliance Center.
| Lenovo SR530 Intel 4208/16GB/No disk/Support 4x3.5/530i/2x1G/550W |  Lenovo SR530 Intel 3204/16GB/No disk/Support 8x2.5/730i w/1GB cache/2x1G/550W |  Lenovo SR530 Intel 4208/16GB/No disk/Support 8x2.5/730i w/1GB cache/ 2x1G/550W |  Lenovo SR530 Intel 3204/16GB/No disk/Support 4x3.5/530i/2x1G/550W | |
|---|---|---|---|---|
| CPU Socket | N/A | N/A | N/A | LGA 4189 |
| Cooling | Active | Active | Active | Active |
| Depth | 28 | 28.35 inches | 27 inches | 28 inches |
| Drive Bay Size | 3.5-inch | 2.5-inch | 2.5-inch | 3.5-inch |
| Form Factor | Rackmount | Rackmount | Rackmount | Rackmount |
| GPU Support | No | No | No | No |
| Height | 3.5 | 1.73 inches | 1.7 inches | 1.7 inches |
| Hot-Swap Support | Yes | Yes | Yes | Yes |
| LAN Ports | 2 | 2 | 2 | 2 |
| Max Cores per CPU | 8 | N/A | 8 | 8 |
| Max RAM Capacity | 512 GB | 128 GB | 512 GB | 256 GB |
| Max Threads per CPU | 16 | N/A | 16 | 16 |
| Network Interface | 1GbE | 1GbE | 1GbE | 1GbE |
| Operating System | No OS | No OS | No OS | No OS |
| PCIe Slots | 3 | 2 | 4 | 3 |
| PCIe Version | PCIe 3.0 | PCIe 3.0 | PCIe 3.0 | PCIe 3.0 |
| Power Supply | Single | Single | Single | Single |
| Power Supply Wattage | 550W | 550W | 550W | 550W |
| Processor Brand | Intel | Intel | Intel | Intel |
| Processor Generation | Xeon 3rd Gen | N/A | N/A | Xeon 3rd Gen |
| Processor Series | Intel Xeon Scalable | Intel Xeon E | Intel Xeon Scalable | Intel Xeon Scalable |
| Product Name | Lenovo SR530 Intel 4208/16GB/No disk/Support 4x3.5/530i/2x1G/550W | Lenovo SR530 Intel 3204/16GB/No disk/Support 8x2.5/730i w/1GB cache/2x1G/550W | Lenovo SR530 Intel 4208/16GB/No disk/Support 8x2.5/730i w/1GB cache/ 2x1G/550W | Lenovo SR530 Intel 3204/16GB/No disk/Support 4x3.5/530i/2x1G/550W |
| Product Type | Server | Server | Server | Server |
| RAID Support | RAID 0/RAID 1/RAID 10 | RAID 0 / RAID 1 / RAID 5 / RAID 10 | RAID 0 / RAID 1 / RAID 5 / RAID 10 / RAID 50 | RAID 0 / RAID 1 / RAID 10 |
| RAM Slots | 8 | 4 | 8 | 8 |
| RAM Type | ECC DDR4 | ECC DDR4 | ECC DDR4 | ECC DDR4 |
| Rack Units | 2U | 1U | 1U | 1U |
| Rail Kit Included | Yes | Yes | N/A | N/A |
| Remote Management | IPMI | IPMI | IPMI | IPMI |
| Scalability | 1P | 1P | 1P | 2P |
| Storage Bays | 4 | 8 | 8 | 4 |
| Storage Type | SATA HDD | SATA HDD | SATA HDD | SATA HDD / SAS HDD |
| Use Case | Virtualization | Virtualization / File Server / Application Server | Virtualization / File Server / Application Server | Virtualization / File Server / Application Server |
| Virtualization Ready | Yes | Yes | Yes | Yes |
| Weight | 40 | 31.8 lbs | 35 lbs | 38 lbs |
| Width | 19 | 17.32 inches | 19 inches | 17.5 inches |
Solid entry server for branch workloads. Performance is consistent, RAID controller is reliable, and deployment was straightforward for our IT team.
Handles virtualization tasks smoothly. Build quality feels enterprise grade and Lenovo firmware tools are easy to manage.
Stable under daily workloads with no unexpected downtime. A dependable choice for small data center environments.
Good balance of compute and storage flexibility. Power efficiency has been better than expected.
Deployed multiple units without issues. Performance and reliability meet our business expectations.
The Lenovo SR530 features an Intel Xeon Bronze 4208 8-core 2.1 GHz CPU, 16 GB DDR4 RAM, no preinstalled drives, support for up to four 3.5″ hot-swap disks, an onboard 530i RAID controller, dual 1 GbE ports, a 550 W redundant power supply and a 3-year 7×24 warranty.
This SR530 is equipped with an Intel Xeon Bronze 4208 processor delivering eight cores at 2.1 GHz and up to 3.2 GHz with Intel Turbo Boost Technology.
It ships with 16 GB of DDR4 memory (1 × 16 GB) and supports up to 128 GB across four DIMM slots for future upgrades.
The server supports up to four 3.5″ hot-swap SATA/SAS disks or SSDs, with no drives preinstalled, allowing flexible capacity and performance configurations.
The Lenovo 530i RAID controller supports RAID levels 0, 1, 5, 6 and 10, offering flexible data protection and performance tuning.
This SR530 comes with two integrated 1 GbE RJ-45 ports, with options to add up to six additional NICs via PCIe slots for higher throughput.
Yes, the server includes a 550 W hot-swap power supply; customers can add a second 550 W unit for full redundancy.
The SR530 is certified for Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server and VMware ESXi, ensuring broad software compatibility.
Yes, it features Lenovo XClarity Controller for embedded remote management, including monitoring, firmware updates and alerting via a web interface.
The server is a 1U rackmount unit measuring 430 mm × 483 mm × 43 mm and weighs approximately 12.5 kg (empty chassis).
Absolutely—additional memory modules and drive kits can be installed in the DIMM and drive bays without system downtime.
With Intel VT-x, VT-d and SR-IOV support, the SR530 delivers efficient virtualization, enabling high VM density and secure resource allocation.
The SR530 includes a standard 3-year onsite warranty with 7×24 support and next-business-day response from Lenovo Service.
The server meets ENERGY STAR® standards and features efficient power supplies and cooling, reducing operational costs and environmental impact.
The SR530 offers four PCIe slots (two x16 and two x8), supporting additional NICs, HBAs, GPUs or storage controllers for flexible expansion.
This versatile 1U server excels in virtualization, small-to-medium databases, collaboration applications and general-purpose workloads in enterprise environments.
