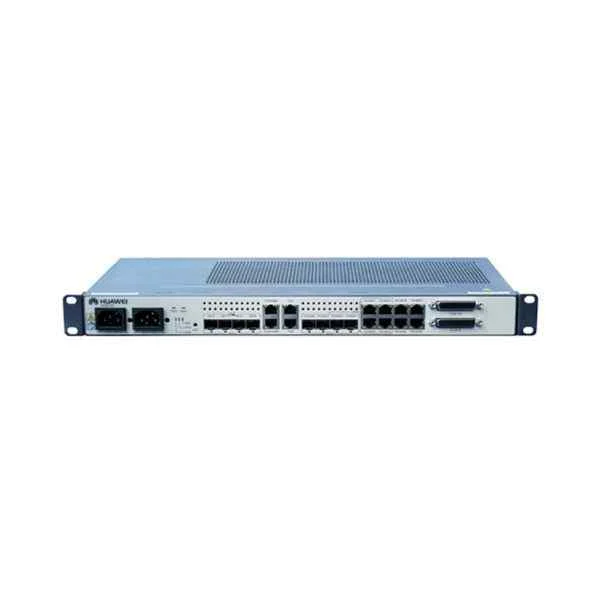

Name: NE05E-SN 12G System,Double AC,4*GE(o),4*GE/FE(e),4*GE/FE Combo,16E1,Passive cold,-40~65degC
Brand: Huawei
SKU: NECM00HSAE00
Price: 2787.00 USD
Availability: InStock
Rating: 4.3 (6 reviews)

Question 1

What is the NECM00HSAE00 – NE05E-SN 12G System?

Accepted Answer

The NECM00HSAE00 – NE05E-SN 12G System is an industrial-grade Ethernet switch featuring 12 Gigabit ports, dual AC power supplies, 16 E1 interfaces and passive-cold heat dissipation for operation in harsh environments.

Question 2

Which network interfaces are available on the NE05E-SN 12G System?

Accepted Answer

It provides 4 Gigabit optical ports (GE(o)), 4 Gigabit/FE electrical ports (GE/FE(e)) and 4 combo Gigabit ports that auto-select between fiber and copper.

Question 3

How many E1 interfaces does the NE05E-SN support?

Accepted Answer

The NE05E-SN supports up to 16 E1 ports for legacy TDM connectivity and voice/data integration.

Question 4

What power supply options are available?

Accepted Answer

It includes dual hot-swappable AC input modules for 100–240 VAC, providing N+1 redundancy and continuous operation during maintenance.

Question 5

How does the NE05E-SN manage heat dissipation?

Accepted Answer

The system uses a passive-cold plate design with no fans or moving parts, ensuring silent operation and high reliability in dusty or vibration-prone environments.

Question 6

What environmental conditions can the NE05E-SN withstand?

Accepted Answer

Engineered for –40 °C to +65 °C, 5–95 % non-condensing humidity and compliant with IP30 for protection against solid particles.

Question 7

What redundancy and reliability features are built in?

Accepted Answer

It offers dual AC power redundancy, passive-cooling with no single point of failure and support for industrial-grade MTBF >100,000 hours.

Question 8

Which management protocols and interfaces are supported?

Accepted Answer

Supports CLI over console/Telnet/SSH, SNMP v2/v3, RMON, DHCP, LLDP and web-based GUI for secure out-of-band and in-band management.

Question 9

How is the NE05E-SN mounted?

Accepted Answer

Designed for 19″ rack installation with an optional wall-mount kit and standard 1U form factor for space-constrained deployments.

Question 10

What compliance and standards does this switch meet?

Accepted Answer

It complies with IEEE 802.3/802.3u/802.3ab/802.3z, ITU-T G.703/G.704 for E1, RoHS, CE, FCC and IEC 61850-3 industrial Ethernet standards.

Question 11

What is the maximum switching capacity and forwarding rate?

Accepted Answer

Offers up to 24 Gbps switching fabric and a packet forwarding rate of 18 Mpps, ensuring zero-loss performance under full load.

Question 12

What typical applications suit the NE05E-SN?

Accepted Answer

Ideal for railway, power substations, oil & gas and industrial automation where wide temperature tolerance and high-availability networking are required.

Question 13

How do I integrate the NE05E-SN into an existing network?

Accepted Answer

Use standard Gigabit interfaces and SNMP/LLDP protocols for seamless integration. Preconfigured templates are available to match common industrial network topologies.

Question 14

What warranty and support options are offered?

Accepted Answer

Includes a 3-year limited warranty, optional 24×7 advanced replacement service and global technical support.

Question 15

What is the MTBF and operational lifespan?

Accepted Answer

Designed for an MTBF exceeding 100,000 hours in industrial conditions, with a typical operational lifespan of 10+ years.

Question 16

How energy-efficient is the NE05E-SN?

Accepted Answer

Passive-cooling and low-power electronics keep power consumption below 25 W (typical), reducing operational costs in large-scale deployments.

	NECM00HSAE00	NECM00AOCP00	NEDMHOST1300	NECM000DIC00	NEDMHOST1500
5G Support	No	No	No	No	No
Architecture	Modular	Modular	Modular	Modular	Modular
Broadband	Fiber Optic / 4G / LTE	Fiber Optic	N/A	Fiber Optic / DSL	Fiber Optic / DSL
Built-in Security Features	Firewall, Intrusion Prevention, Malware Protection	Firewall / Intrusion Prevention	Firewall / Intrusion Prevention	Firewall / Intrusion Prevention / Malware Protection	Firewall / Intrusion Prevention
Compliance Standards	CE, FCC, RoHS	FCC, CE, RoHS	CE / FCC / RoHS	IEEE 802.3 / IEEE 802.11	FCC / CE
Connectivity Type	Wired	Wired	Wired	Wired	Wired
Depth	15 inches	14 inches	15 inches	18 inches	15 inches
Device Type	Router	Router	Router	Router	Router
EMC	FCC, CE	FCC Part 15, CE	N/A	CE / FCC	RoHS / WEEE
Ethernet Technology	10/100/1000	10/100/1000	10/100/1000	10/100/1000	10/100/1000
Expansion Slots	NIM, SFP+	NIM / SFP+	NIM	NIM / SFP+	NIM / SFP+
Features	VPN, Firewall, IPv6 Compatible, Intrusion Prevention	VPN, Firewall, IPv6 Compatible, POE	VPN / IPv6 Compatible / Firewall / MPLS	VPN / Firewall / MPLS / IPv6 Compatible	VPN / IPv6 Compatible / Firewall / MPLS
Firewall Features	Yes	Yes	Yes	Yes	Yes
Flash Memory	512 MB	512 MB	512 MB	512 MB	512 MB
Form Factor	Rack-mount	Rack-mount	Rack-mount	Rack-mount	Rack-mount
Height	2 inches	2 inches	1.75 inches	2 inches	2 inches
High Availability Support	Supported	Supported	Supported	Supported	Supported
Integrated Services	Voice, Video, WAN Optimization	Voice / Video	Voice / Video / WAN Optimization	Voice / Video / WAN Optimization	Voice / Video / WAN Optimization
Interface Ports	RJ-45, SFP	RJ-45 / SFP+	RJ-45 / SFP+	RJ-45 / SFP / SFP+ / Combo Ports	RJ-45 / SFP+ / Combo Ports
LAN Ports	8 LAN Ports	8 LAN Ports	8 LAN Ports	8 LAN Ports	8 LAN Ports
Management	Managed	Managed	Managed	Managed	Managed
Memory	4 GB	4 GB	4 GB	4 GB	4 GB
Modular Slots Available	3+ Slots	3+ Slots	3+ Slots	3+ Slots	3+ Slots
Network Protocols	IPv4, IPv6, MPLS	IPv4, IPv6, MPLS	IPv4 / IPv6 / TCP/IP / UDP	IPv4 / IPv6	IPv4 / IPv6
Power	250 Watt	250 W	350 Watt	250W	350 Watt
Power Source	AC Power Supply / Redundant	AC Power Supply / Redundant	AC Power Supply / Redundant	AC Power Supply / DC Power Supply / Redundant	AC Power Supply / Redundant
Product Name	NECM00HSAE00 Enterprise Modular Router	NECM00AOCP00 Enterprise Modular Router	NEDMHOST1300 Multi-Service Router	NECM000DIC00 Enterprise Modular Router	NEDMHOST1500
Product Type	Enterprise Router	Enterprise Router	Enterprise Router	Enterprise Router	Enterprise Router
QoS Features	Supported	Supported	Supported	Supported	Supported
Remote Management	SSH, SNMP, HTTP/HTTPS	SSH, HTTPS, SNMP	SNMP / HTTPS / SSH	SSH / Telnet / SNMP	SSH / HTTPS
Routing Protocols	OSPF / BGP / Static Routing	OSPF / BGP / Static Routing	OSPF / BGP / EIGRP / MPLS / Static Routing	OSPF / BGP / EIGRP / Static Routing	OSPF / BGP / RIP / Static Routing
Safety	UL Listed, CE Certified	UL, IEC	N/A	CE / FCC	PoE / Surge Protection
Speed/Capacity	Gigabit	Gigabit	Gigabit	Gigabit	Gigabit
Stacking Capability	Yes	Yes	Yes	Yes	Yes
Telecom	ITU-T Compliance	ETSI, ITU	N/A	N/A	TIA / IEEE
Throughput Capacity	10 Gbps	1 Gbps	10 Gbps	2 Gbps	1 Gbps
Use Case	Enterprise	Enterprise	Enterprise / Industrial	Enterprise	Enterprise
VPN Support	IPSec / SSL VPN / DMVPN	IPSec / SSL VPN	IPSec / SSL VPN	IPSec / SSL VPN	IPSec / SSL VPN
WAN Configuration	Dual WAN	Dual WAN	Dual WAN	Dual WAN	Dual WAN
WAN Ports	2 WAN	2 WAN	2 WAN	2 WAN	2 WAN
Weight	15 lbs	20 lbs	12 lbs	15 lbs	25 lbs
Wi-Fi Standard	N/A	N/A	N/A	WiFi 6	WiFi 6
Width	17 inches	17 inches	17.5 inches	17 inches	17 inches
Wireless Support	No	No	No	No	No
