What optical connector does the OSX040B10 use?

The module uses an LC duplex connector, optimized for single-fiber BiDi links.

What are the transmitter power and receiver sensitivity specifications?

Transmitter power ranges from 0 dBm to +5 dBm; receiver sensitivity is –18 dBm, enabling high margin links.

Is the transceiver compliant with industry standards?

Yes, it is compliant with SFP+ MSA, IEEE 802.3ae 10GBASE-BX standards and RoHS directives.

Which devices are compatible with this SFP+ module?

It is compatible with Huawei switches, routers and any third-party equipment supporting SFP+ MSA and 10GBASE-BX standards.

Can I mix this Huawei transceiver with other vendors’ SFP+ ports?

Yes, as long as the host port supports SFP+ MSA and 10GBASE-BX single-fiber optics, cross-vendor operation is supported.

What is the operating temperature range?

The operating temperature range is 0 °C to 70 °C (standard) and –40 °C to 85 °C (extended) for industrial environments.

Is the module hot-pluggable?

Yes, the SFP+ form factor allows safe insertion and removal without powering down network equipment.

How do I install the Huawei SFP+ BiDi transceiver?

Simply insert the module into an SFP+ slot, connect the LC fiber cable, and confirm link status via your device’s CLI or GUI.

What warranty and support are provided?

Huawei offers a limited lifetime warranty and 24/7 technical support on all genuine SFP+ transceivers.

What are the advantages of BiDi transceivers over dual-fiber modules?

BiDi modules use one fiber core for bidirectional traffic, reducing cabling costs and simplifying fiber management.

How do I verify module performance after installation?

Use your switch or router’s diagnostic commands (e.g., show interfaces transceiver) to check optical power, temperature and link status.

What precautions should I take when handling an SFP+ transceiver?

Avoid touching the optical surfaces, use dust caps, observe ESD guidelines, and install in a clean environment to ensure reliability.

FEATURED DEAL

Name:

OSX040B10

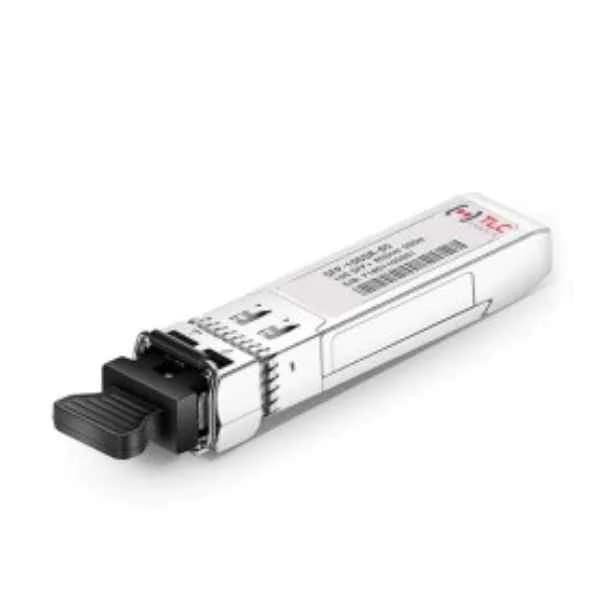

Name: Huawei BiDi Transceiver,SFP+,TX 1330nm/RX1270nm,9.95~10.3Gb/s,0dBm,5dBm,-18dBm,LC,40km
Brand: Huawei
SKU: OSX040B10
Price: 14807.24 USD
Availability: InStock
Rating: 4.3 (6 reviews)

Description:: Huawei BiDi Transceiver,SFP+,TX 1330nm/RX1270nm,9.95~10.3Gb/s,0dBm,5dBm,-18dBm,LC,40km
Rating:: 4.3(6)
Added to cart 28 times recently
Availability:: In stock - Ready to Ship
Brand:: Huawei
GTIN:: 886598026543
Condition:
Warranty:: 3
List Price:: $15,752.38
Price:: $14,807.246% off

Quantity:

Business price:

Enroll your business for free

3 Year Extended Warranty

Same-day Shipping

14-Day Money Back Guarantee

Shipping:

Payment:

osx040b10 huawei bidi transceiver,sfp+,tx 1330nm/rx1270nm,9.95~10.3gb/s,0dbm,5dbm,-18dbm,lc,40km

3 Year Extended Warranty

Same-day Shipping

14-Day Money Back Guarantee

Need Additional Discount on Product?

Request a quote below - Get Exclusive Pricing and Support.

Shipping:

Payment:

OSX040B10

Huawei BiDi Transceiver,SFP+,TX 1330nm/RX1270nm,9.95~10.3Gb/...

$15,752.38 $14,807.246% off

11 in Global Warehouse Global

TRUSTED, TRIED, PROVEN

$5,000,000+

Inventory Delivered By

Officially Accredited

& Verified By

Next-Gen IT

Solutions Powered By

OSX040B10 Overview

OSX040B10 is a QSFP+ optical transceiver designed to support a 40G data rate, offering a reliable solution for high-speed data communication in modern networks. It employs a MPO connector interface for multi-mode fiber connectivity, ensuring efficient short-range transmission suitable for data centers and enterprise network environments.

OSX040B10 is engineered within the QSFP+ form factor, featuring industry-standard physical dimensions for effortless integration into high-density optical systems. The transceiver supports Ethernet protocols and is ideal for applications requiring robust performance in data centers, telecom, and enterprise networking, delivering seamless optical interconnectivity and optimized power consumption.

OSX040B10 price is $14,807.24, a 6% saving from the Huawei list price of $15,752.38. OSX040B10 is in stock and available for next-day dispatch. (terms applied)

Request bulk order quote for OSX040B10 for additional pricing. Browse the full Huawei Transceivers series or explore all Huawei products.

OSX040B10 Specifications

Product Type: Transceiver
Form Factor: QSFP+
Data Rate: 40G
Connector Type: MPO
Wavelength: 850nm
Transmission Distance: Short-Range
Fiber Type: Multi-mode
Max Distance: 150 meters
Supported Protocols: Ethernet
Network Interface: Fiber
Power Consumption: 6.0W
Operating Temperature: 0 to 70°C
Storage Temperature: -40 to 85°C
Input Voltage: 3.3V
Compatibility: Cisco / Juniper / Huawei / Arista
Product Name: OSX040B10 QSFP+ Optical Transceiver
Height: 0.5 inches
Width: 1.0 inches
Depth: 1.0 inches
Weight: 0.1 lbs

Quality Certifications

To get the detailed certification, please go to the Compliance Center.

Product Comparison Table

	OSX040B10	OSN020N15	CWDM-SFPGE-1611	QSFP-40G-ER4	OSN010003
Product Type	Transceiver	Transceiver	Transceiver	Transceiver	Transceiver
Form Factor	QSFP+	SFP+	SFP	QSFP	SFP
Data Rate	40G	10G	1G	40G	10G
Connector Type	MPO	LC	LC	LC	LC
Wavelength	850nm	850 nm	1611 nm	1310 nm	850 nm
Transmission Distance	Short-Range	Short-Range	Long-Range	Extended-Range	Short-Range
Fiber Type	Multi-mode	Multi-mode	Single-mode	Single-mode	Multi-mode
Max Distance	150 meters	300 meters	80 km	40 km	300 meters
Supported Protocols	Ethernet	Ethernet	Ethernet	Ethernet	Ethernet, Fibre Channel
Network Interface	Fiber	Ethernet	Fiber	Ethernet	Ethernet
Power Consumption	6.0W	3.5W	N/A	3.5 W	3.5W
Operating Temperature	0 to 70°C	0 to 70°C	0 to 70°C	0 to 70°C	0 to 70°C
Storage Temperature	-40 to 85°C	-40 to 85°C	-40 to 85°C	-40 to 85°C	-40 to 85°C
Input Voltage	3.3V	3.3V	3.3V	3.3V	3.3V
Compatibility	Cisco / Juniper / Huawei / Arista	Cisco / Juniper / Huawei / Arista	Cisco / Juniper / Huawei / Arista	Cisco / Juniper / Huawei / Arista	Cisco, Juniper, Huawei, Arista
Product Name	OSX040B10 QSFP+ Optical Transceiver	OSN020N15 10GBASE-SR SFP+ Transceiver	CWDM-SFPGE-1611	QSFP-40G-ER4	OSN010003 10G SFP Transceiver
Height	0.5 inches	0.54 inches	N/A	0.38 inches	0.22 inches
Width	1.0 inches	0.67 inches	N/A	0.83 inches	0.85 inches
Depth	1.0 inches	2.17 inches	N/A	3.4 inches	1.5 inches
Weight	0.1 lbs	0.1 lbs	N/A	0.22 lbs	0.1 lbs

Reviews & Ratings

Fabian Roth

BiDi transceiver worked flawlessly over long distance.

Gustav Meier

Stable optical levels and clean signal.

Heinz Bauer

Good compatibility with Huawei switches.

Jonas Frei

No link drops observed.

Klaus Werner

Reliable for 40km links.

Lukas Schmid

Performs as specified.

Questions & Answers

What is the Huawei BiDi Transceiver SFP+ (OSX040B10)?

The Huawei BiDi Transceiver SFP+ (OSX040B10) is a hot-pluggable, single-fiber optical module supporting 9.95–10.3 Gb/s transmission for up to 40 km.

Which data rates does the OSX040B10 support?

It supports SFP+ data rates from 9.95 Gb/s up to 10.3 Gb/s, ideal for 10 Gigabit Ethernet applications.

What are the transmit and receive wavelengths?

This BiDi transceiver uses a 1330 nm transmit wavelength (TX) and a 1270 nm receive wavelength (RX).

What maximum link distance can this module achieve?

On single-mode fiber with ≤0.35 dB/km attenuation, it reliably supports distances up to 40 km.
