Is the CFP2-100G-SR10 hot-swappable?

Yes. The CFP2-100G-SR10 is fully hot-pluggable, allowing insertion or removal without powering down the host system.

What is the exact wavelength of the CFP2-100G-SR10 module?

The module transmits at an 850 nm wavelength using VCSEL technology for each of the 10 lanes.

What is the power consumption of the CFP2-100G-SR10?

Typical power consumption is ≤12 W, making it energy-efficient for 100 Gbps multimode connectivity.

Which industry standards does the CFP2-100G-SR10 comply with?

It complies with IEEE 802.3bm (100GBASE-SR10) and the CFP MSA, ensuring full interoperability with standard 100 Gbps equipment.

What temperature range can the CFP2-100G-SR10 operate in?

Operating temperature ranges from 0 °C to 70 °C (32 °F to 158 °F) for standard commercial environments.

How do I install the CFP2-100G-SR10 transceiver in my switch?

Align the module with the CFP2 slot, slide it until the ejector lever clicks, then secure the latch. Connect the MPO cable to the front panel.

Can the CFP2-100G-SR10 work with OM3 and OM4 fiber without adjustment?

Yes. It is pre-calibrated for both OM3 and OM4 multimode fibers, automatically adjusting for loss budgets up to 100 m.

How do I troubleshoot link issues with the CFP2-100G-SR10?

Verify MPO polarity, clean connectors, ensure fiber type matches module specification, and check host port configuration for 100 Gbps SR10 mode.

What distinguishes CFP2-100G-SR10 from 100GBASE-SR4 modules?

CFP2-SR10 uses 10×10 Gbps lanes over a 12-fiber MPO, while SR4 uses 4×25 Gbps lanes over an 8-fiber connector, offering different fiber counts and port compatibility.

Does the CFP2-100G-SR10 support digital diagnostics monitoring (DDM)?

Yes. It features integrated DDM/DOM for real-time monitoring of optical power, temperature, and voltage via I2C.

What warranty coverage is offered with CFP2-100G-SR10?

The module comes with a one-year limited warranty covering defects in materials and workmanship under normal use.

How can I purchase the CFP2-100G-SR10 and what is its price range?

You can order directly from authorized distributors or our e-shop. Pricing varies by volume but typically ranges from $1,200 to $1,500 per unit.

FEATURED DEAL

Name:

CFP2-100G-SR10

Name: High Speed Transceiver,CFP2,100G,Multimode Module(850nm,10*10G,0.1km,MPO)
Brand: Huawei
SKU: CFP2-100G-SR10
Price: 3210.97 USD
Availability: InStock
Rating: 4.3 (6 reviews)

Description:: High Speed Transceiver,CFP2,100G,Multimode Module(850nm,10*10G,0.1km,MPO)
Rating:: 4.3(6)
Added to cart 28 times recently
Availability:: In stock - Ready to Ship
Brand:: Huawei
GTIN:: 6920702795667
Condition:
Warranty:: 3
List Price:: $6,980.38
Price:: $3,210.9754% off

Quantity:

Business price:

Enroll your business for free

3 Year Extended Warranty

Same-day Shipping

14-Day Money Back Guarantee

Shipping:

Payment:

cfp2-100g-sr10 high speed transceiver,cfp2,100g,multimode module(850nm,10*10g,0.1km,mpo)

3 Year Extended Warranty

Same-day Shipping

14-Day Money Back Guarantee

Need Additional Discount on Product?

Request a quote below - Get Exclusive Pricing and Support.

Shipping:

Payment:

CFP2-100G-SR10

High Speed Transceiver,CFP2,100G,Multimode Module(850nm,10*1...

$6,980.38 $3,210.9754% off

11 in Global Warehouse Global

TRUSTED, TRIED, PROVEN

$5,000,000+

Inventory Delivered By

Officially Accredited

& Verified By

Next-Gen IT

Solutions Powered By

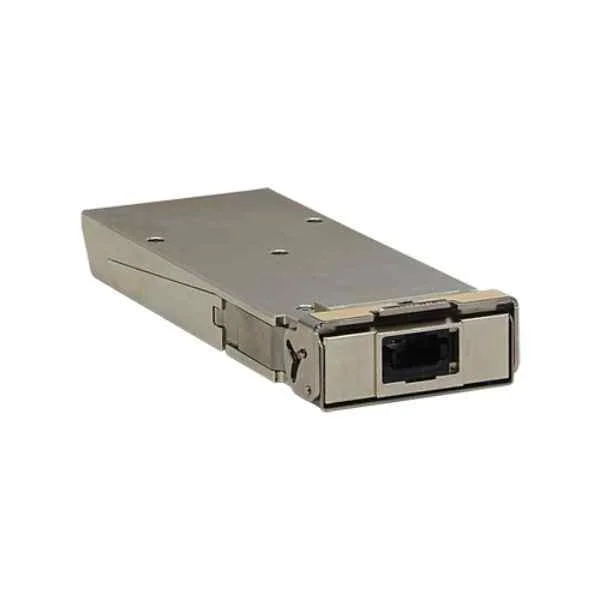

CFP2-100G-SR10 Overview

CFP2-100G-SR10 is a CFP2 form factor optical transceiver engineered for 100G data transmission over short-range distances using multi-mode fiber. It features LC connectors and supports Ethernet protocols, making it an ideal solution for high-performance applications in data centers, enterprise networks, and telecom environments.

This module is designed with standardized CFP2 dimensions to ensure seamless integration into modern network infrastructures. Its optimized architecture delivers reliable performance with efficient power consumption, addressing the demanding requirements of data-intensive applications and next-generation network deployments.

CFP2-100G-SR10 price is $3,210.97, a 54% saving from the Huawei list price of $6,980.38. CFP2-100G-SR10 is in stock and available for next-day dispatch. (terms applied)

Request bulk order quote for CFP2-100G-SR10 for additional pricing. Browse the full Huawei Transceivers series or explore all Huawei products.

CFP2-100G-SR10 Specifications

Product Type: Transceiver
Form Factor: CFP2
Data Rate: 100G
Connector Type: LC
Wavelength: 850 nm
Transmission Distance: Short-Range
Fiber Type: Multi-mode
Max Distance: 100 meters
Supported Protocols: Ethernet
Network Interface: Ethernet
Power Consumption: 8W
Operating Temperature: 0 to 70°C
Storage Temperature: -40 to 85°C
Input Voltage: 3.3V
Compatibility: Cisco / Juniper / Huawei / Arista
Product Name: CFP2-100G-SR10
Height: N/A
Width: N/A
Depth: N/A
Weight: N/A

Quality Certifications

To get the detailed certification, please go to the Compliance Center.

Product Comparison Table

	CFP2-100G-SR10	OSX070007	OSX040N03	OSN010N09	VC6MSFPLCL01
Product Type	Transceiver	Transceiver	Transceiver	Transceiver	Transceiver
Form Factor	CFP2	QSFP28	SFP+	SFP	SFP
Data Rate	100G	100G	10G	10G	1G
Connector Type	LC	MPO	LC	LC	LC
Wavelength	850 nm	850 nm	850 nm	1310nm	1310nm
Transmission Distance	Short-Range	Short-Range	Short-Range	Long-Range	Short-Range
Fiber Type	Multi-mode	Multi-mode	Multi-mode	Single-mode	Single-mode
Max Distance	100 meters	100 meters	300 meters	10 km	10km
Supported Protocols	Ethernet	Ethernet	Ethernet, Fibre Channel	Ethernet, Fibre Channel	Ethernet, Fibre Channel
Network Interface	Ethernet	Fiber	Ethernet	Fiber	Fiber
Power Consumption	8W	5W	1.5W	3.5W	3.5W
Operating Temperature	0 to 70°C	0 to 70°C	0 to 70°C	0 to 70°C	0 to 70°C
Storage Temperature	-40 to 85°C	-40 to 85°C	-40 to 85°C	-40 to 85°C	-40 to 85°C
Input Voltage	3.3V	3.3V	3.3V	3.3V	3.3V
Compatibility	Cisco / Juniper / Huawei / Arista	Cisco / Juniper / Huawei / Arista	Cisco, Juniper, Huawei, Arista	Cisco, Juniper, Huawei, Arista	Cisco, Juniper, Huawei, Arista
Product Name	CFP2-100G-SR10	OSX070007 High Performance QSFP28 Transceiver	OSX040N03	OSN010N09 10G SFP Transceiver Module	VC6MSFPLCL01 SFP Transceiver Module
Height	N/A	0.9 inches	0.125 inches	0.52 inches	0.65 inches
Width	N/A	1.2 inches	0.87 inches	1.0 inches	0.95 inches
Depth	N/A	1.3 inches	1.65 inches	0.5 inches	1.50 inches
Weight	N/A	0.10 lbs	0.05 lbs	0.2 lbs	0.05 lbs

Reviews & Ratings

Matthew Harding

Reliable 100G short reach performance in data centers.

Daniel Cooper

Stable throughput across all lanes.

James Wilcox

Works well with MPO cabling.

Paul Edwards

Easy installation in high density environments.

Christopher Lane

Consistent performance under load.

Oliver Bennett

Solid CFP2 SR10 module.

Questions & Answers

What is the CFP2-100G-SR10 high speed transceiver?

The CFP2-100G-SR10 is a hot-pluggable 100 Gbps multimode transceiver module (CFP2 form factor) operating at 850 nm over 10×10 Gbps lanes with an MPO connector for up to 0.1 km reach.

Which fiber type does the CFP2-100G-SR10 support?

The module supports OM3/OM4 multimode fiber, delivering up to 100 meters of link distance over MPO-terminated cables.

What connector interface is used on the CFP2-100G-SR10?

It uses a 12-fiber MPO (Multi-Fiber Push-On) connector, enabling 10 parallel transmit and receive lanes.

What applications is the CFP2-100G-SR10 ideal for?

It’s optimized for data center and enterprise switches, routers, aggregation and spine-leaf architectures requiring 100 Gbps multimode links.

Related Searches Huawei Transceivers

Huawei CFP-100G-SR10 Huawei CXP-100G-SR10 Huawei CFP-40G-SR4 OMND10N10 OSMD10N02 OMND10N13 OSN010003 OMXD30010

CFP2-100G-SR10 Overview

CFP2-100G-SR10 price is $3,210.97, a 54% saving from the Huawei list price of $6,980.38. CFP2-100G-SR10 is in stock and available for next-day dispatch. (terms applied)

Request bulk order quote for CFP2-100G-SR10 for additional pricing. Browse the full Huawei Transceivers series or explore all Huawei products.

CFP2-100G-SR10 Specifications

Product Type

Transceiver

Form Factor

CFP2

Data Rate

100G

Connector Type

Wavelength

850 nm

Transmission Distance

Short-Range

Fiber Type

Multi-mode

Max Distance

100 meters

Supported Protocols

Ethernet

Network Interface

Ethernet

Power Consumption

Operating Temperature

0 to 70°C

Storage Temperature

-40 to 85°C

Input Voltage

3.3V

Compatibility

Cisco / Juniper / Huawei / Arista

Product Name

CFP2-100G-SR10

Height

N/A

Width

N/A

Depth

N/A

Weight

N/A

Product Comparison Table

	CFP2-100G-SR10	OSX070007	OSX040N03	OSN010N09	VC6MSFPLCL01
Product Type	Transceiver	Transceiver	Transceiver	Transceiver	Transceiver
Form Factor	CFP2	QSFP28	SFP+	SFP	SFP
Data Rate	100G	100G	10G	10G	1G
Connector Type	LC	MPO	LC	LC	LC
Wavelength	850 nm	850 nm	850 nm	1310nm	1310nm
Transmission Distance	Short-Range	Short-Range	Short-Range	Long-Range	Short-Range
Fiber Type	Multi-mode	Multi-mode	Multi-mode	Single-mode	Single-mode
Max Distance	100 meters	100 meters	300 meters	10 km	10km
Supported Protocols	Ethernet	Ethernet	Ethernet, Fibre Channel	Ethernet, Fibre Channel	Ethernet, Fibre Channel
Network Interface	Ethernet	Fiber	Ethernet	Fiber	Fiber
Power Consumption	8W	5W	1.5W	3.5W	3.5W
Operating Temperature	0 to 70°C	0 to 70°C	0 to 70°C	0 to 70°C	0 to 70°C
Storage Temperature	-40 to 85°C	-40 to 85°C	-40 to 85°C	-40 to 85°C	-40 to 85°C
Input Voltage	3.3V	3.3V	3.3V	3.3V	3.3V
Compatibility	Cisco / Juniper / Huawei / Arista	Cisco / Juniper / Huawei / Arista	Cisco, Juniper, Huawei, Arista	Cisco, Juniper, Huawei, Arista	Cisco, Juniper, Huawei, Arista
Product Name	CFP2-100G-SR10	OSX070007 High Performance QSFP28 Transceiver	OSX040N03	OSN010N09 10G SFP Transceiver Module	VC6MSFPLCL01 SFP Transceiver Module
Height	N/A	0.9 inches	0.125 inches	0.52 inches	0.65 inches
Width	N/A	1.2 inches	0.87 inches	1.0 inches	0.95 inches
Depth	N/A	1.3 inches	1.65 inches	0.5 inches	1.50 inches
Weight	N/A	0.10 lbs	0.05 lbs	0.2 lbs	0.05 lbs

Questions & Answers

What is the CFP2-100G-SR10 high speed transceiver?

The CFP2-100G-SR10 is a hot-pluggable 100 Gbps multimode transceiver module (CFP2 form factor) operating at 850 nm over 10×10 Gbps lanes with an MPO connector for up to 0.1 km reach.

Which fiber type does the CFP2-100G-SR10 support?

The module supports OM3/OM4 multimode fiber, delivering up to 100 meters of link distance over MPO-terminated cables.

What connector interface is used on the CFP2-100G-SR10?

It uses a 12-fiber MPO (Multi-Fiber Push-On) connector, enabling 10 parallel transmit and receive lanes.

What applications is the CFP2-100G-SR10 ideal for?

It’s optimized for data center and enterprise switches, routers, aggregation and spine-leaf architectures requiring 100 Gbps multimode links.
