What is the supported transmission distance?

It reliably transmits data up to 40 km over standard single-mode fiber (SMF) at 1310 nm.

Which connector type is used on the OSG040002?

The module uses an LC duplex connector compatible with standard SMF patch cords.

Is the Huawei OSG040002 compatible with Huawei devices?

Yes, it is fully compatible with Huawei switches, routers and optical line terminals that support MSA-compliant eSFP modules.

Can the OSG040002 be used with third-party network equipment?

Yes, it interoperates with any MSA-compliant eSFP port supporting 1.25 Gb/s, 1310 nm single-mode modules.

How do I install the Huawei OSG040002 transceiver?

Power off the host device, insert the module into an eSFP slot until the latch clicks, then power on and verify link status.

What is the operating temperature range?

The transceiver operates reliably from 0 °C to +70 °C for standard-grade modules.

What is the storage temperature range?

Storage temperature ranges from –40 °C to +85 °C when the module is not powered.

What is the typical power consumption?

The OSG040002 consumes less than 1 W of power under normal operating conditions.

Which certifications and compliance standards does it meet?

It is RoHS-compliant, MSA-compliant and meets relevant industry standards for optical transceivers.

How do I test the optical power levels?

Use a calibrated optical power meter at the LC connector: ensure transmit power is between –5 and 0 dBm and receiver sensitivity is at or below –23 dBm.

Does the module support hot-swapping?

Yes, the OSG040002 is hot-pluggable and can be inserted or removed without powering down the host device.

Does the OSG040002 support digital diagnostics monitoring (DDM)?

Yes, it supports SFF-8472 DDM for real-time monitoring of optical power, temperature, voltage, and bias current.

FEATURED DEAL

Name:

OSG040002

Description:: Huawei Optical Transceiver(eSFP,1310nm,1.25Gb/s,-5~0dBm,-23dBm,LC,SM,40km)
Rating:: 4.3(6)
Added to cart 28 times recently
Availability:: In stock - Ready to Ship
Brand:: Huawei
GTIN:: 886598026543
Condition:

3 Year Extended Warranty

Same-day Shipping

14-Day Money Back Guarantee

Shipping:

Payment:

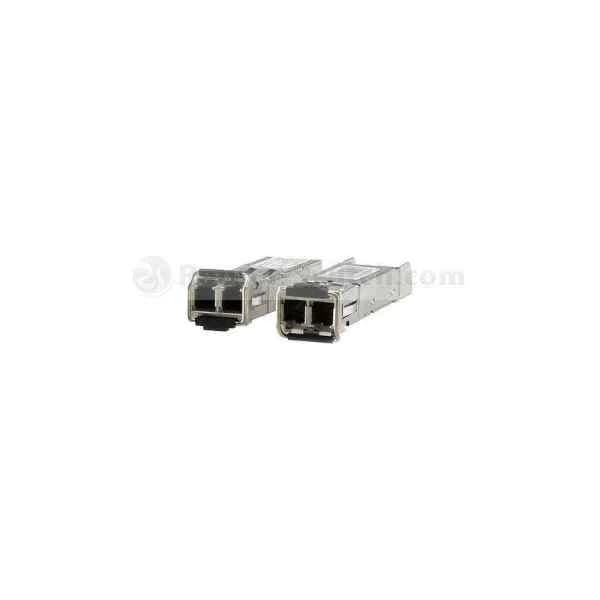

osg040002 huawei optical transceiver(esfp,1310nm,1.25gb/s,-5~0dbm,-23dbm,lc,sm,40km)

3 Year Extended Warranty

Same-day Shipping

14-Day Money Back Guarantee

Need Additional Discount on Product?

Request a quote below - Get Exclusive Pricing and Support.

Shipping:

Payment:

OSG040002

Huawei Optical Transceiver(eSFP,1310nm,1.25Gb/s,-5~0dBm,-23d...

TRUSTED, TRIED, PROVEN

$5,000,000+

Inventory Delivered By

Officially Accredited

& Verified By

Next-Gen IT

Solutions Powered By

OSG040002 Overview

OSG040002 is a high-performance SFP transceiver designed for 10G applications, featuring an LC connector and engineered for short-range transmission. It supports both Ethernet and Fibre Channel protocols, is built in a standard SFP form factor with compact physical dimensions, and is ideally suited for data centers, enterprise networks, and telecom environments.

OSG040002 delivers reliable connectivity with precise optical performance and robust design to maintain signal integrity. Its optimized architecture and adherence to industry standards ensure efficient deployment in critical high-speed networks, while its compatibility with major networking platforms makes it a versatile choice for modern communication infrastructures.

OSG040002 price is is available on request. Get immediate quote.

Request bulk order quote for OSG040002 for additional pricing. Browse the full Huawei Transceivers series or explore all Huawei products.

OSG040002 Specifications

Product Type: Transceiver
Data Rate: 10G
Connector Type: LC
Wavelength: 850 nm
Transmission Distance: Short-Range
Fiber Type: Multi-mode
Network Interface: Fiber
Operating Temperature: 0 to 70°C
Storage Temperature: -40 to 85°C
Input Voltage: 3.3V
Supported Protocols: Ethernet, Fibre Channel
Compatibility: Cisco, Juniper, Huawei, Arista
Form Factor: SFP
Max Distance: 300 meters
Power Consumption: 3.5W
Weight: 0.1 lbs
Height: 0.24 inches
Width: 0.6 inches
Depth: 0.3 inches
Product Name: OSG040002 10G SFP Transceiver Module

Quality Certifications

To get the detailed certification, please go to the Compliance Center.

Product Comparison Table

	OSG040002	CWDM-XFP10G-1611	OSN010N04	DWDM-XFP10G-1549-32	DWDM-SFPGE-1560-61
Product Type	Transceiver	Transceiver	Transceiver	Transceiver	Transceiver
Form Factor	SFP	XFP	SFP	XFP	SFP
Data Rate	10G	10G	10G	10G	1G
Connector Type	LC	LC	LC	LC	LC
Wavelength	850 nm	1611 nm	850 nm	1549 nm	1560 nm - 1610 nm
Transmission Distance	Short-Range	Long-Range	Short-Range	Long-Range	Long-Range
Fiber Type	Multi-mode	Single-mode	Multi-mode	Single-mode	Single-mode
Max Distance	300 meters	80 km	300 meters	80 km	80 km
Supported Protocols	Ethernet, Fibre Channel	Ethernet, Fibre Channel	Ethernet	Ethernet, Fibre Channel	Ethernet
Network Interface	Fiber	Fiber	Fiber	Ethernet	Fiber
Power Consumption	3.5W	N/A	2.5 W	3.5 W	N/A
Operating Temperature	0 to 70°C	0 to 70°C	0 to 70°C	0 to 70°C	0 to 70°C
Storage Temperature	-40 to 85°C	-40 to 85°C	-40 to 85°C	-40 to 85°C	-40 to 85°C
Input Voltage	3.3V	3.3V	3.3V	3.3V	3.3V
Compatibility	Cisco, Juniper, Huawei, Arista	Cisco, Juniper, Huawei, Arista	Cisco, Juniper, Huawei, Arista	Cisco, Juniper, Huawei, Arista	Cisco, Juniper, Huawei, Arista
Product Name	OSG040002 10G SFP Transceiver Module	CWDM-XFP10G-1611	OSN010N04	DWDM-XFP10G-1549-32	DWDM-SFPGE-1560-61
Height	0.24 inches	N/A	0.13 inches	0.82 inches	N/A
Width	0.6 inches	N/A	0.56 inches	2.57 inches	N/A
Depth	0.3 inches	N/A	0.72 inches	0.55 inches	N/A
Weight	0.1 lbs	N/A	0.05 lbs	0.21 lbs	N/A

Reviews & Ratings

Richard Coleman

Stable GE optic with strong signal output.

Faisal Qureshi

Works reliably over 40km links.

Ian Russell

Easy integration into access networks.

Sami Ullah

No errors during continuous operation.

Peter Voss

Good quality single mode optic.

Oliver Shaw

Dependable GE transceiver.

Questions & Answers

What is the Huawei OSG040002 optical transceiver?

The Huawei OSG040002 is a hot-swappable eSFP optical transceiver module designed for 1.25 Gb/s single-mode fiber links up to 40 km.

What are the key specifications of the OSG040002?

It supports 1.25 Gb/s data rate, 1310 nm wavelength, LC duplex connector, transmit power –5 to 0 dBm, receive sensitivity down to –23 dBm, and 40 km reach.

Which wavelength does this transceiver operate on?

It operates at a nominal wavelength of 1310 nm, optimized for single-mode fiber transmission up to 40 km.

What is the maximum data rate supported?

The OSG040002 supports a maximum data rate of 1.25 Gb/s for Gigabit Ethernet and other 1G applications.
