What connector interface does this module use?

It features a duplex LC connector interface for seamless integration with standard SMF patch panels.

Is the DWDM-XFP10G-1531-90 hot-swappable?

Yes. The module supports hot-swap functionality, enabling installation or removal without powering down the host device.

What data rate does this DWDM transceiver support?

It supports a 10 Gbps data rate compliant with IEEE 802.3ae 10GBASE-ER specifications.

Which industry standards does this XFP transceiver comply with?

It complies with XFP MSA, IEEE 802.3ae, ITU-T G.691, and Telcordia GR-63/GR-468 reliability standards.

What are the typical applications for the DWDM-XFP10G-1531-90?

Ideal for metro, long-haul network links, data center interconnects, and DWDM systems requiring up to 80 km reach.

How do I install the DWDM-XFP10G-1531-90 in my network switch?

Power off the switch slot, align the XFP module with the guide rails, slide in until it latches, then power on for automatic recognition.

What are the operating temperature specifications?

Operating temperature ranges from 0°C to 70°C (32°F to 158°F) for extended industrial performance.

How much power does the DWDM-XFP10G-1531-90 consume?

Typical power consumption is 2.5 W, meeting XFP MSA low-power requirements.

What laser class is used in this DWDM transceiver?

It employs a Class 1 laser diode, fully compliant with FDA and IEC safety regulations.

Does the module support digital diagnostics monitoring?

Yes. It offers real-time monitoring of optical output power, input power, temperature, laser bias current, and supply voltage via I²C.

What warranty is provided with the DWDM-XFP10G-1531-90?

The module includes a standard one-year warranty covering manufacturing defects and performance failures.

How is the DWDM-XFP10G-1531-90 packaged and shipped?

Each transceiver ships in an antistatic tray with protective caps, sealed in an ESD-safe bag and boxed for secure transportation.

FEATURED DEAL

Name:

DWDM-XFP10G-1531-90

Name: DWDM Optical Transceiver,XFP,10G,Single-mode Module(1531.90nm,80km,LC)
Brand: Huawei
SKU: DWDM-XFP10G-1531-90
Price: 2338.42 USD
Availability: InStock
Rating: 4.3 (6 reviews)

Description:: DWDM Optical Transceiver,XFP,10G,Single-mode Module(1531.90nm,80km,LC)
Rating:: 4.3(6)
Added to cart 28 times recently
Availability:: In stock - Ready to Ship
Brand:: Huawei
GTIN:: 6920702795667
Condition:
Warranty:: 3
List Price:: $5,314.60
Price:: $2,338.4256% off

Quantity:

Business price:

Enroll your business for free

3 Year Extended Warranty

Same-day Shipping

14-Day Money Back Guarantee

Shipping:

Payment:

dwdm-xfp10g-1531-90 dwdm optical transceiver,xfp,10g,single-mode module(1531.90nm,80km,lc)

3 Year Extended Warranty

Same-day Shipping

14-Day Money Back Guarantee

Need Additional Discount on Product?

Request a quote below - Get Exclusive Pricing and Support.

Shipping:

Payment:

DWDM-XFP10G-1531-90

DWDM Optical Transceiver,XFP,10G,Single-mode Module(1531.90n...

$5,314.60 $2,338.4256% off

11 in Global Warehouse Global

TRUSTED, TRIED, PROVEN

$5,000,000+

Inventory Delivered By

Officially Accredited

& Verified By

Next-Gen IT

Solutions Powered By

DWDM-XFP10G-1531-90 Overview

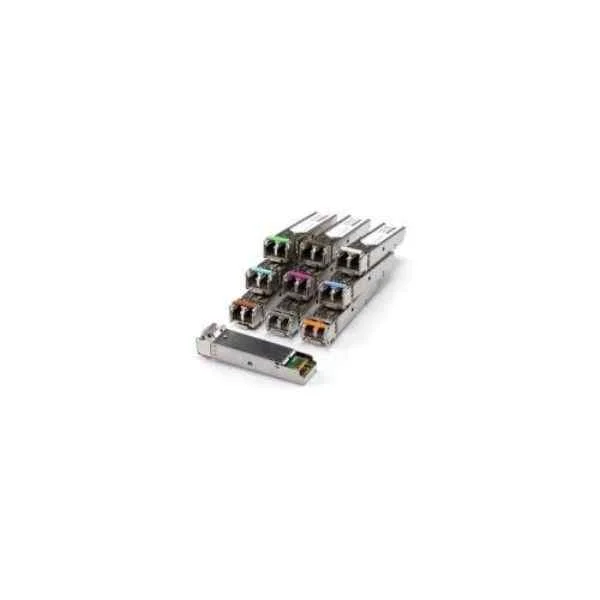

DWDM-XFP10G-1531-90 is a high-performance DWDM XFP transceiver engineered for 10G data rate applications. Designed with a standardized XFP form factor, this module features LC connectors and is optimized for long-range transmission over single-mode fiber, making it a reliable solution in demanding telecom, data center, and enterprise network environments.

DWDM-XFP10G-1531-90 supports 10G Ethernet and Fibre Channel protocols, ensuring robust and efficient optical networking. Its precision-engineered optical components and compact dimensions address the needs of high-density network installations while providing a secure and stable link for DWDM systems operating at a center wavelength of 1531 nm.

DWDM-XFP10G-1531-90 price is $2,338.42, a 56% saving from the Huawei list price of $5,314.60. DWDM-XFP10G-1531-90 is in stock and available for next-day dispatch. (terms applied)

Request bulk order quote for DWDM-XFP10G-1531-90 for additional pricing. Browse the full Huawei Transceivers series or explore all Huawei products.

DWDM-XFP10G-1531-90 Specifications

Product Type: Transceiver
Form Factor: XFP
Data Rate: 10G
Connector Type: LC
Wavelength: 1531 nm
Transmission Distance: Long-Range
Fiber Type: Single-mode
Max Distance: 80 km
Supported Protocols: Ethernet, Fibre Channel
Network Interface: Fiber
Power Consumption: N/A
Operating Temperature: 0 to 70°C
Storage Temperature: -40 to 85°C
Input Voltage: 3.3V
Compatibility: Cisco, Juniper, Huawei, Arista
Product Name: DWDM-XFP10G-1531-90
Height: N/A
Width: N/A
Depth: N/A
Weight: N/A

Quality Certifications

To get the detailed certification, please go to the Compliance Center.

Product Comparison Table

	DWDM-XFP10G-1531-90	CSFP-GE-FE-BIDI2	QSFP-40G-eSM4	CR5S40GMLS00	OSX040N12
Product Type	Transceiver	Transceiver	Transceiver	Transceiver	Transceiver
Form Factor	XFP	SFP	QSFP	QSFP+	QSFP+
Data Rate	10G	1G	40G	40G	40G
Connector Type	LC	LC	MPO	LC	LC
Wavelength	1531 nm	1310 nm	850 nm	1310nm	850 nm
Transmission Distance	Long-Range	Short-Range	Short-Range	Long-Range	Short-Range
Fiber Type	Single-mode	Single-mode	Multi-mode	Single-mode	Multi-mode
Max Distance	80 km	10 km	100 meters	80km	100 m
Supported Protocols	Ethernet, Fibre Channel	Ethernet	Ethernet	Ethernet, Fibre Channel	Ethernet
Network Interface	Fiber	Fiber	Fiber	Fiber	Fiber
Power Consumption	N/A	1.5W	4.0W	6W	3.5 W
Operating Temperature	0 to 70°C	0 to 70°C	0 to 70°C	0 to 70°C	0 to 70°C
Storage Temperature	-40 to 85°C	-40 to 85°C	-40 to 85°C	-40 to 85°C	-40 to 85°C
Input Voltage	3.3V	3.3V	3.3V	3.3V	3.3V
Compatibility	Cisco, Juniper, Huawei, Arista	Cisco / Juniper / Huawei / Arista	Cisco / Juniper / Huawei / Arista	Cisco, Juniper, Huawei, Arista	Cisco, Juniper, Huawei, Arista
Product Name	DWDM-XFP10G-1531-90	CSFP-GE-FE-BIDI2	QSFP-40G-eSM4	CR5S40GMLS00 40G QSFP+ Transceiver Module	OSX040N12 40G QSFP+ Transceiver
Height	N/A	0.13 inches	N/A	0.5 inches	0.55 inches
Width	N/A	0.87 inches	N/A	0.5 inches	0.10 inches
Depth	N/A	1.96 inches	N/A	1.0 inches	1.00 inches
Weight	N/A	0.2 lbs	N/A	0.1 lbs	0.08 lbs

Reviews & Ratings

Matthew Ford

Stable DWDM XFP delivering clean 10G links.

Daniel Harris

Accurate wavelength control.

James Wright

Easy deployment in DWDM systems.

Christopher Cole

Consistent optical performance.

Paul Simmons

Carrier grade quality.

Oliver Grant

Professional DWDM XFP module.

Questions & Answers

What is the DWDM-XFP10G-1531-90 optical transceiver?

The DWDM-XFP10G-1531-90 is a 10 Gbps XFP DWDM single-mode transceiver module operating at 1531.90 nm with an 80 km reach over LC fiber.

Which wavelength does the DWDM-XFP10G-1531-90 support?

The module supports a fixed DWDM wavelength of 1531.90 nm for dense wavelength-division multiplexing applications.

What is the maximum transmission distance for this transceiver?

It delivers reliable data transmission up to 80 km over single-mode fiber under standard operating conditions.

Which fiber type is required for the DWDM-XFP10G-1531-90?

The transceiver is designed for ITU-T G.652 compliant single-mode fiber (SMF) using LC connectors.

Related Searches Huawei Transceivers

DWDM-XFP10G-1553-33 DWDM-XFP10G-1552-52 DWDM-XFP10G-1554-13 DWDM-XFP10G-1550-92 DWDM-XFP10G-1530-33 DWDM-XFP10G-1551-72 DWDM-XFP10G-1535-04 DWDM-XFP10G-1531-12

DWDM-XFP10G-1531-90 Overview

Request bulk order quote for DWDM-XFP10G-1531-90 for additional pricing. Browse the full Huawei Transceivers series or explore all Huawei products.

DWDM-XFP10G-1531-90 Specifications

Product Type

Transceiver

Form Factor

XFP

Data Rate

10G

Connector Type

Wavelength

1531 nm

Transmission Distance

Long-Range

Fiber Type

Single-mode

Max Distance

80 km

Supported Protocols

Ethernet, Fibre Channel

Network Interface

Fiber

Power Consumption

N/A

Operating Temperature

0 to 70°C

Storage Temperature

-40 to 85°C

Input Voltage

3.3V

Compatibility

Cisco, Juniper, Huawei, Arista

Product Name

DWDM-XFP10G-1531-90

Height

N/A

Width

N/A

Depth

N/A

Weight

N/A

Product Comparison Table

	DWDM-XFP10G-1531-90	CSFP-GE-FE-BIDI2	QSFP-40G-eSM4	CR5S40GMLS00	OSX040N12
Product Type	Transceiver	Transceiver	Transceiver	Transceiver	Transceiver
Form Factor	XFP	SFP	QSFP	QSFP+	QSFP+
Data Rate	10G	1G	40G	40G	40G
Connector Type	LC	LC	MPO	LC	LC
Wavelength	1531 nm	1310 nm	850 nm	1310nm	850 nm
Transmission Distance	Long-Range	Short-Range	Short-Range	Long-Range	Short-Range
Fiber Type	Single-mode	Single-mode	Multi-mode	Single-mode	Multi-mode
Max Distance	80 km	10 km	100 meters	80km	100 m
Supported Protocols	Ethernet, Fibre Channel	Ethernet	Ethernet	Ethernet, Fibre Channel	Ethernet
Network Interface	Fiber	Fiber	Fiber	Fiber	Fiber
Power Consumption	N/A	1.5W	4.0W	6W	3.5 W
Operating Temperature	0 to 70°C	0 to 70°C	0 to 70°C	0 to 70°C	0 to 70°C
Storage Temperature	-40 to 85°C	-40 to 85°C	-40 to 85°C	-40 to 85°C	-40 to 85°C
Input Voltage	3.3V	3.3V	3.3V	3.3V	3.3V
Compatibility	Cisco, Juniper, Huawei, Arista	Cisco / Juniper / Huawei / Arista	Cisco / Juniper / Huawei / Arista	Cisco, Juniper, Huawei, Arista	Cisco, Juniper, Huawei, Arista
Product Name	DWDM-XFP10G-1531-90	CSFP-GE-FE-BIDI2	QSFP-40G-eSM4	CR5S40GMLS00 40G QSFP+ Transceiver Module	OSX040N12 40G QSFP+ Transceiver
Height	N/A	0.13 inches	N/A	0.5 inches	0.55 inches
Width	N/A	0.87 inches	N/A	0.5 inches	0.10 inches
Depth	N/A	1.96 inches	N/A	1.0 inches	1.00 inches
Weight	N/A	0.2 lbs	N/A	0.1 lbs	0.08 lbs

Questions & Answers

What is the DWDM-XFP10G-1531-90 optical transceiver?

The DWDM-XFP10G-1531-90 is a 10 Gbps XFP DWDM single-mode transceiver module operating at 1531.90 nm with an 80 km reach over LC fiber.

Which wavelength does the DWDM-XFP10G-1531-90 support?

The module supports a fixed DWDM wavelength of 1531.90 nm for dense wavelength-division multiplexing applications.

What is the maximum transmission distance for this transceiver?

It delivers reliable data transmission up to 80 km over single-mode fiber under standard operating conditions.

Which fiber type is required for the DWDM-XFP10G-1531-90?

The transceiver is designed for ITU-T G.652 compliant single-mode fiber (SMF) using LC connectors.
