What is the receiver sensitivity of the OSX040N12 transceiver?

The receiver sensitivity is –15.8 dBm, enabling effective detection of low-power optical signals.

What is the receiver overload level for this transceiver?

The receiver overload threshold is –1 dBm, protecting the module from damage due to excessive optical input.

What type of fiber and connector does the module require?

It requires single-mode OS1/OS2 fiber and uses a standard duplex LC connector for universal compatibility.

What form factor and industry standards does the module adhere to?

The module uses an SFP+ form factor and is fully compliant with the SFP+ Multi-Source Agreement (MSA) for plug-and-play integration.

Is the transceiver hot-swappable?

Yes, the module supports hot-swapping, allowing installation or removal without powering down the system.

What is the typical power consumption of the OSX040N12?

The transceiver consumes approximately 2.5 W of power during normal operation, ensuring energy-efficient performance.

Which environmental operating conditions are supported?

This module operates reliably in ambient temperatures from 0 °C to 70 °C and can be stored between –40 °C and 85 °C.

Does the Huawei transceiver require additional drivers or software?

No, it is plug-and-play compliant and requires no additional drivers or firmware for standard operation.

Which network equipment is this transceiver compatible with?

The transceiver is fully interoperable with Huawei switches and routers, as well as third-party equipment that adhere to SFP+ standards.

What protocols and standards does the OSX040N12 support?

It supports IEEE 802.3ae and is compliant with the SFP+ Multi-Source Agreement, ensuring broad protocol compatibility.

What applications is the OSX040N12 transceiver best suited for?

It is ideal for long-haul data center interconnects, metro network backbones, and high-speed telecommunications links up to 40 km.

FEATURED DEAL

Name:

OSX040N12

Name: Huawei XFP SFP+ Transceiver-SFP+-1550nm-10G/1G--4.7dbm-4dbm--15.8dbm--1dbm-SM-40km
Brand: Huawei
SKU: OSX040N12
Rating: 4.3 (6 reviews)

Description:: Huawei XFP SFP+ Transceiver-SFP+-1550nm-10G/1G--4.7dbm-4dbm--15.8dbm--1dbm-SM-40km
Rating:: 4.3(6)
Added to cart 28 times recently
Availability:: In stock - Ready to Ship
Brand:: Huawei
GTIN:: 886598026543
Condition:

Get a Quote

3 Year Extended Warranty

Same-day Shipping

14-Day Money Back Guarantee

Shipping:

Payment:

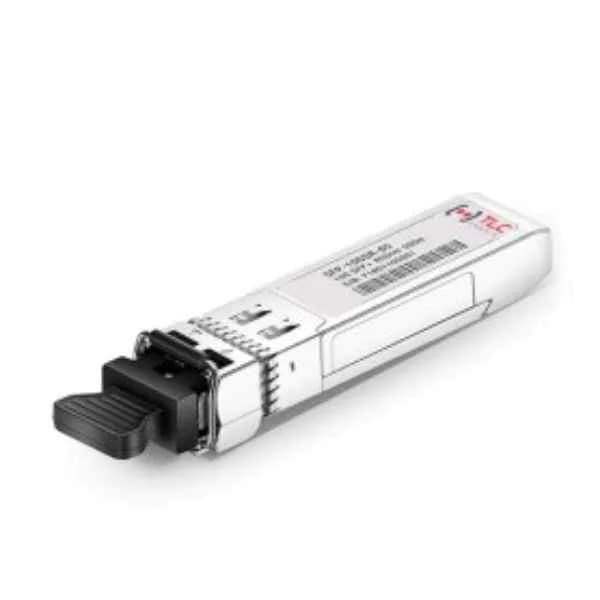

osx040n12 huawei xfp sfp+ transceiver-sfp+-1550nm-10g/1g--4.7dbm-4dbm--15.8dbm--1dbm-sm-40km

3 Year Extended Warranty

Same-day Shipping

14-Day Money Back Guarantee

Need Additional Discount on Product?

Request a quote below - Get Exclusive Pricing and Support.

Shipping:

Payment:

OSX040N12

Huawei XFP SFP+ Transceiver-SFP+-1550nm-10G/1G--4.7dbm-4dbm-...

TRUSTED, TRIED, PROVEN

$5,000,000+

Inventory Delivered By

Officially Accredited

& Verified By

Next-Gen IT

Solutions Powered By

OSX040N12 Overview

OSX040N12 is a 40G QSFP+ transceiver that supports a 40G data rate, utilizes LC connectors, and is designed for short-range transmission over multi-mode fiber. It offers support for Ethernet protocols and is engineered in a compact form factor with precise physical dimensions, making it an effective choice for high-density data center applications and enterprise network environments.

OSX040N12 is built to meet the rigorous demands of modern telecom and data center infrastructures, featuring reliable performance and energy efficiency. Its specifications, including a typical power consumption of 3.5W and operating temperature range of 0 to 70°C, ensure robust performance in varied environments, while its compatibility with industry-leading platforms such as Cisco, Juniper, Huawei, and Arista provides seamless integration into diverse network ecosystems.

OSX040N12 price is is available on request. Get immediate quote.

Request bulk order quote for OSX040N12 for additional pricing. Browse the full Huawei Transceivers series or explore all Huawei products.

OSX040N12 Specifications

Product Type: Transceiver
Form Factor: QSFP+
Data Rate: 40G
Connector Type: LC
Wavelength: 850 nm
Transmission Distance: Short-Range
Fiber Type: Multi-mode
Max Distance: 100 m
Supported Protocols: Ethernet
Network Interface: Fiber
Power Consumption: 3.5 W
Operating Temperature: 0 to 70°C
Storage Temperature: -40 to 85°C
Input Voltage: 3.3V
Compatibility: Cisco, Juniper, Huawei, Arista
Product Name: OSX040N12 40G QSFP+ Transceiver
Height: 0.55 inches
Width: 0.10 inches
Depth: 1.00 inches
Weight: 0.08 lbs

Quality Certifications

To get the detailed certification, please go to the Compliance Center.

Product Comparison Table

	OSX040N12	DWDM-SFPGE-1556-55	OSX040B11	CXP-100G-AOC10M	CR5S40GMLS00
Product Type	Transceiver	Transceiver	Transceiver	Active Optical Cable	Transceiver
Form Factor	QSFP+	SFP	SFP+	CXP	QSFP+
Data Rate	40G	1G	10G	100G	40G
Connector Type	LC	LC	LC	CXP	LC
Wavelength	850 nm	1556 nm	1310nm	850nm	1310nm
Transmission Distance	Short-Range	Long-Range	Long-Range	Short-Range	Long-Range
Fiber Type	Multi-mode	Single-mode	Single-mode	Multimode	Single-mode
Max Distance	100 m	80 km	80km	10 meters	80km
Supported Protocols	Ethernet	Ethernet	Ethernet, Fibre Channel	Ethernet	Ethernet, Fibre Channel
Network Interface	Fiber	Fiber	Ethernet	Ethernet	Fiber
Power Consumption	3.5 W	3.5 W	2.5W	3.0W	6W
Operating Temperature	0 to 70°C	0 to 70°C	0 to 70°C	0 to 70°C	0 to 70°C
Storage Temperature	-40 to 85°C	-40 to 85°C	-40 to 85°C	-40 to 85°C	-40 to 85°C
Input Voltage	3.3V	3.3V	3.3V	3.3V	3.3V
Compatibility	Cisco, Juniper, Huawei, Arista	Cisco / Juniper / Huawei / Arista	Cisco, Juniper, Huawei, Arista	Cisco / Juniper / Huawei / Arista	Cisco, Juniper, Huawei, Arista
Product Name	OSX040N12 40G QSFP+ Transceiver	DWDM-SFPGE-1556-55	OSX040B11 Optical Transceiver Module	CXP-100G-AOC10M	CR5S40GMLS00 40G QSFP+ Transceiver Module
Height	0.55 inches	0.65 inches	0.25 inches	N/A	0.5 inches
Width	0.10 inches	1.1 inches	0.60 inches	N/A	0.5 inches
Depth	1.00 inches	1.3 inches	0.75 inches	N/A	1.0 inches
Weight	0.08 lbs	0.2 lbs	0.05 lbs	N/A	0.1 lbs

Reviews & Ratings

Ryan Mitchell

Reliable long range SFP plus transceiver.

Luke Carter

Stable optical performance at 40km.

Marcus Hall

Easy deployment in enterprise networks.

Paul Simmons

Consistent signal quality.

Scott Dawson

Good compatibility with switches.

Oliver Reed

Dependable optical module.

Questions & Answers

What is the maximum transmission distance of the Huawei OSX040N12 XFP SFP+ Transceiver?

The Huawei OSX040N12 transceiver provides reliable optical links up to 40 km over single-mode fiber (OS1/OS2).

Which data rates are supported by the OSX040N12 module?

This module supports both 10 Gbps and 1 Gbps data rates, offering versatile performance for varied network environments.

What operating wavelength does the SFP+ transceiver use?

The module operates at a 1550 nm wavelength, optimized for long-haul single-mode fiber transmission.

What is the transmitter output power range of the OSX040N12?

The transmitter delivers output power from –4.7 dBm (minimum) up to +4 dBm (maximum) to maintain signal integrity.
