What is the receive sensitivity range of OMXD10N02?

Receive sensitivity ranges from −1 dBm (overload) to −11.1 dBm (minimum).

What form factor does the OMXD10N02 use?

It uses the hot-pluggable SFP+ form factor, compliant with industry MSA standards.

Does the OMXD10N02 support digital diagnostic monitoring (DDM)?

Yes, it supports SFF-8472 DDM for real-time monitoring of temperature, voltage, bias current and optical power.

Which industry standards does OMXD10N02 comply with?

It complies with IEEE 802.3ae, SFF-8431, SFF-8432 and RoHS for reliable 10 GbE connectivity.

What is the operating temperature range of the OMXD10N02?

The module operates from 0 °C to 70 °C (commercial temperature range).

Is the OMXD10N02 hot-swappable?

Yes, the SFP+ module is hot-pluggable, allowing safe insertion or removal without powering down the system.

What connector type does the OMXD10N02 use?

It utilizes an LC duplex connector for easy, high-density multimode fiber termination.

What is the maximum link distance supported?

It supports up to 100 meters over OM3/OM4 multimode fiber at 10 Gbps.

Is the OMXD10N02 compatible with Cisco switches?

Yes, it is interoperable with most Cisco SFP+ ports and OEM switches accepting third-party modules.

How do I install the OMXD10N02 transceiver?

Insert the SFP+ module into a compatible port until it clicks, then attach the LC fiber cable.

What warranty coverage is provided for the OMXD10N02?

It includes a 3-year limited warranty covering defects in materials and workmanship.

What is the typical MTBF of the OMXD10N02?

The typical mean time between failures exceeds 1,000,000 hours for high reliability.

FEATURED DEAL

Name:

OMXD10N02

Name: Optical Transceiver,SFP+,850nm,9.8G,-5dBm,-1dBm,-11.1dBm,LC,MMF,0.1km
Brand: Huawei
SKU: OMXD10N02
Price: 834.61 USD
Availability: InStock
Rating: 4.3 (6 reviews)

Description:: Optical Transceiver,SFP+,850nm,9.8G,-5dBm,-1dBm,-11.1dBm,LC,MMF,0.1km
Rating:: 4.3(6)
Added to cart 28 times recently
Availability:: In stock - Ready to Ship
Brand:: Huawei
GTIN:: 6920702795667
Condition:
Warranty:: 3
List Price:: $1,112.82
Price:: $834.6125% off

Quantity:

Business price:

Enroll your business for free

3 Year Extended Warranty

Same-day Shipping

14-Day Money Back Guarantee

Shipping:

Payment:

omxd10n02 optical transceiver,sfp+,850nm,9.8g,-5dbm,-1dbm,-11.1dbm,lc,mmf,0.1km

3 Year Extended Warranty

Same-day Shipping

14-Day Money Back Guarantee

Need Additional Discount on Product?

Request a quote below - Get Exclusive Pricing and Support.

Shipping:

Payment:

OMXD10N02

Optical Transceiver,SFP+,850nm,9.8G,-5dBm,-1dBm,-11.1dBm,LC,...

$1,112.82 $834.6125% off

11 in Global Warehouse Global

TRUSTED, TRIED, PROVEN

$5,000,000+

Inventory Delivered By

Officially Accredited

& Verified By

Next-Gen IT

Solutions Powered By

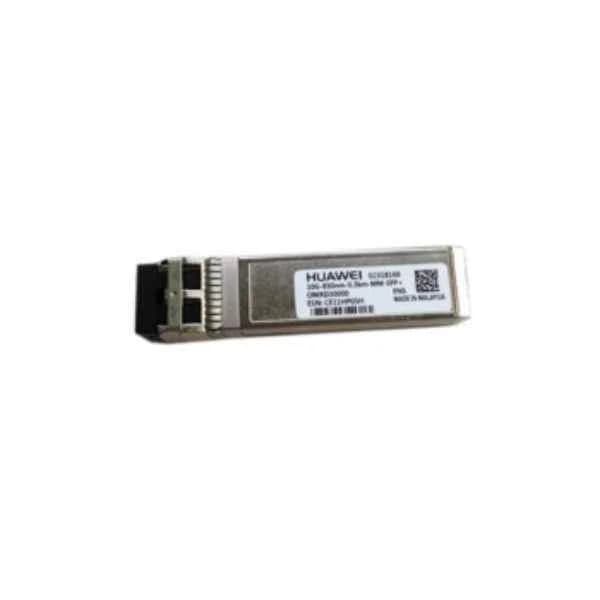

OMXD10N02 Overview

OMXD10N02 is a high-performance SFP+ optical transceiver engineered for 10G data rate applications. It features an LC connector, is optimized for short-range transmission over multi-mode fiber, and supports both Ethernet and Fibre Channel protocols, providing a reliable solution in modern networking environments.

OMXD10N02 comes in a standard SFP+ form factor with compact physical dimensions and is ideally suited for data centers, enterprise networks, and telecom infrastructures. Its design ensures seamless integration with leading platforms including Cisco, Juniper, Huawei, and Arista while delivering efficient power management and robust operation in critical networking applications.

OMXD10N02 price is $834.61, a 25% saving from the Huawei list price of $1,112.82. OMXD10N02 is in stock and available for next-day dispatch. (terms applied)

Request bulk order quote for OMXD10N02 for additional pricing. Browse the full Huawei Transceivers series or explore all Huawei products.

OMXD10N02 Specifications

Product Type: Transceiver
Form Factor: SFP+
Data Rate: 10G
Connector Type: LC
Wavelength: 850nm
Transmission Distance: Short-Range
Fiber Type: Multi-mode
Max Distance: 300 meters
Supported Protocols: Ethernet, Fibre Channel
Network Interface: Fiber
Power Consumption: 1.2W
Operating Temperature: 0 to 70°C
Storage Temperature: -40 to 85°C
Input Voltage: 3.3V
Compatibility: Cisco, Juniper, Huawei, Arista
Product Name: OMXD10N02 10G SFP+ Optical Transceiver
Height: 0.13 inches
Width: 0.89 inches
Depth: 0.62 inches
Weight: 0.1 lbs

Quality Certifications

To get the detailed certification, please go to the Compliance Center.

Product Comparison Table

	OMXD10N02	FCXPD0100	DWDM-XFP10G-1531-90	SFP-10G-AC7M	CR5S40GMLS00
Product Type	Transceiver	Transceiver	Transceiver	Transceiver	Transceiver
Form Factor	SFP+	SFP+	XFP	SFP+	QSFP+
Data Rate	10G	10G	10G	10G	40G
Connector Type	LC	LC	LC	Direct Attach Copper (DAC) - SFP+	LC
Wavelength	850nm	1310 nm	1531 nm	N/A	1310nm
Transmission Distance	Short-Range	Long-Range	Long-Range	Short-Range	Long-Range
Fiber Type	Multi-mode	Single-mode	Single-mode	N/A	Single-mode
Max Distance	300 meters	10 km	80 km	7 meters	80km
Supported Protocols	Ethernet, Fibre Channel	Ethernet, Fibre Channel	Ethernet, Fibre Channel	10G Ethernet	Ethernet, Fibre Channel
Network Interface	Fiber	Fiber	Fiber	Ethernet	Fiber
Power Consumption	1.2W	3.5 W	N/A	N/A	6W
Operating Temperature	0 to 70°C	0 to 70°C	0 to 70°C	0 to 70°C	0 to 70°C
Storage Temperature	-40 to 85°C	-40 to 85°C	-40 to 85°C	-40 to 85°C	-40 to 85°C
Input Voltage	3.3V	3.3V	3.3V	3.3V	3.3V
Compatibility	Cisco, Juniper, Huawei, Arista	Cisco, Juniper, Huawei, Arista	Cisco, Juniper, Huawei, Arista	Cisco / Juniper / Huawei / Arista	Cisco, Juniper, Huawei, Arista
Product Name	OMXD10N02 10G SFP+ Optical Transceiver	FCXPD0100 10G SFP+ Transceiver	DWDM-XFP10G-1531-90	SFP-10G-AC7M	CR5S40GMLS00 40G QSFP+ Transceiver Module
Height	0.13 inches	0.24 inches	N/A	N/A	0.5 inches
Width	0.89 inches	0.67 inches	N/A	N/A	0.5 inches
Depth	0.62 inches	1.0 inches	N/A	N/A	1.0 inches
Weight	0.1 lbs	0.05 lbs	N/A	N/A	0.1 lbs

Reviews & Ratings

Michael Lawson

Stable multimode SFP+ for short reach high speed connections.

Daniel Moore

Quick link up inside data centers.

James Turner

Consistent throughput without packet loss.

Paul Wilson

Easy installation and removal.

Christopher Reed

Works well in dense racks.

Oliver Bennett

Dependable short range SFP+.

Questions & Answers

What data rate does the OMXD10N02 SFP+ transceiver support?

The OMXD10N02 SFP+ transceiver supports up to 9.8 Gbps, ideal for 10 Gigabit Ethernet applications.

Which fiber type is compatible with the OMXD10N02?

It supports multimode fiber (MMF) using an LC duplex connector for links up to 100 meters.

What optical wavelength does the OMXD10N02 operate on?

The module transmits and receives at an 850 nm wavelength, optimized for short-range multimode fiber.

What is the maximum transmit power of the OMXD10N02?

The maximum optical transmit power is −5 dBm.
