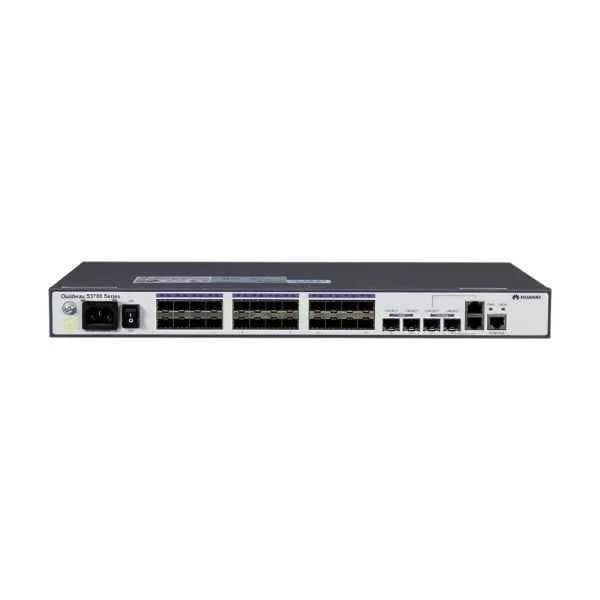

Name: S3700-28TP-EI-24S-AC(24 FE SFP,2 Gig SFP and 2 dual-purpose 10/100/1000 or SFP,AC 110/220V)
Brand: Huawei
SKU: S3700-28TP-EI-24S-AC
Availability: OutOfStock
Rating: 4.3 (6 reviews)

Question 1

What is the H3C S3700-28TP-EI-24S-AC switch?

Accepted Answer

The H3C S3700-28TP-EI-24S-AC is a layer-2+ managed switch featuring 24 FE SFP ports, 2 Gigabit SFP ports and 2 dual-purpose 10/100/1000 Mbps or SFP uplink ports, designed for enterprise access networks.

Question 2

Which port types are available on the S3700-28TP-EI-24S-AC?

Accepted Answer

It offers 24 Fast Ethernet SFP slots, 2 Gigabit SFP slots and 2 dual-purpose RJ45/SFP Gigabit uplinks, allowing flexible fiber or copper connections.

Question 3

Does the switch support Power over Ethernet (PoE)?

Accepted Answer

The S3700-28TP-EI variant does not include PoE. For PoE requirements, consider the S3700-28TP-EI-24P-AC model.

Question 4

What is the switching capacity and forwarding rate?

Accepted Answer

It delivers a switching capacity of 128 Gbps and a maximum forwarding rate of 95.24 Mpps, ensuring wire-speed performance for all ports.

Question 5

What power supply does the S3700-28TP-EI-24S-AC use?

Accepted Answer

The switch features an internal AC power module compatible with 110–220 VAC input, auto-sensing frequency from 50 to 60 Hz.

Question 6

How can I manage and configure the switch?

Accepted Answer

Management options include an intuitive web GUI, industry-standard CLI over console or SSH, SNMP v1/2c/3 and RMON for comprehensive monitoring.

Question 7

Is the S3700-28TP-EI-24S-AC IPv6 ready?

Accepted Answer

Yes. It supports full IPv6 routing, IPv6 ACLs and MLD snooping for dual-stack deployment in modern network environments.

Question 8

What Quality of Service (QoS) features are supported?

Accepted Answer

Advanced QoS includes 8 hardware queues, DiffServ, 802.1p priority, traffic shaping and rate limiting to ensure optimal voice and video performance.

Question 9

What network redundancy protocols does it support?

Accepted Answer

It supports STP/RSTP/MSTP, VRRP, SmartLink and Dual-Engine Fast Failover to deliver high availability and seamless network protection.

Question 10

What operating temperature and environmental requirements apply?

Accepted Answer

Operating temperature ranges from 0 °C to 45 °C with 10%–90% non-condensing humidity; it is designed for standard data center and office racks.

Question 11

Can I rack-mount the S3700-28TP-EI-24S-AC?

Accepted Answer

Yes. The switch includes mounting brackets and fits a standard 19-inch rack, occupying 1U of rack space.

Question 12

What security features are built in?

Accepted Answer

The switch offers 802.1X port authentication, DHCP snooping, IP Source Guard, ARP inspection and ACLs to prevent unauthorized access and attacks.

Question 13

Does the switch support energy-saving technologies?

Accepted Answer

It features Energy Efficient Ethernet (EEE), port auto-power down and low-power chipsets to reduce power consumption without compromising performance.

Question 14

What warranty and support options are available?

Accepted Answer

H3C provides a lifetime limited hardware warranty with advance replacement and 24/7 technical support through online portals and authorized partners.

Question 15

Which deployment scenarios are ideal for this switch?

Accepted Answer

It is ideal for enterprise access layers, campus networks, small to medium data centers and fiber-based aggregation applications.

Question 16

What protocols are supported for multicast and routing?

Accepted Answer

Supports IGMP snooping v1/v2/v3, PIM-SM, static routing, VRRP and OSPF Lite for efficient layer-2 multicast and basic layer-3 routing.

	S3700-28TP-EI-24S-AC	S3700-28TP-PWR-SI	S3700-52P-EI-24S-AC	S3700-52P-EI-AC	S3700-28TP-PWR-EI
Depth	10.8 inches	10.0 inches	12 inches	16.1 inches	11.5 inches
Ethernet Technology	10/100/1000	10/100	10/100/1000	10/100/1000	10/100/1000
Flash Memory	64 MB	32 MB	64 MB	64 MB	64 MB
Form Factor	Rack-mount	Rack-mount	Rack-mount	Rack-mount	Rack-mount
Height	1.75 inches	1.73 inches	1.75 inches	1.75 inches	1.73 inches
IOS	LAN Base	LAN Lite	IP Services	LAN Lite	IP Lite
Interface Ports	10/100/1000	10/100	10/100/1000	10/100/1000	10/100/1000
Layer Supported	Layer 2	Layer 2	Layer 3	Layer 2	Layer 2
Manageable	Managed	Managed	Managed	Managed	Managed
Manufacturer Part Number	S3700-28TP-EI-24S-AC	S3700-28TP-PWR-SI	S3700-52P-EI-24S-AC	S3700-52P-EI-AC	S3700-28TP-PWR-EI
Media Type Supported	Twisted Pair, Fiber	Twisted Pair / Fiber	Combo	Twisted Pair / Fiber / Combo	Twisted Pair
Memory	256 MB	256 MB	256 MB	256 MB	256 MB
Number of Downlink Ports	24 Ports	24 Ports	24 Ports	48 Ports	24 Ports
Number of Ethernet Ports	24–48 Ports	24–48 Ports	Over 48 Ports	24–48 Ports	24–48 Ports
POE Support	Non POE	POE+	POE+	POE	POE
Port/Expansion Slot Details	28 x 10/100/1000 RJ45 ports and 24 x 1G SFP ports	24 x 10/100 PoE ports, 4 x 1G SFP uplink ports	N/A	48 PoE ports, 4 SFP uplink ports	24 x 10/100/1000 PoE, 4 x 1G SFP
Power Consumption	N/A	48W	N/A	200 W	N/A
Power Source	AC Power Supply	AC Power Supply	AC Power Supply	AC Power Supply	AC Power Supply
Product Name	S3700-28TP-EI-24S-AC Ethernet Switch	Cisco S3700-28TP-PWR-SI	S3700-52P-EI-24S-AC Stackable PoE Ethernet Switch	S3700-52P-EI-AC Ethernet Access Switch	HPE FlexNetwork S3700-28TP-PWR-EI
Product Type	Switch	Switch	Switch	Switch	Switch
Rack Units	1 RU	1 RU	1 RU	1 RU	1 RU
Redundant Power Supply Supported	No	No	No	No	No
SFP Ports	24 SFP Ports	4 SFP Ports	24 SFP Ports	4 SFP Ports	4 SFP Ports
Switching Capacity	128 Gbps	32 Gbps	N/A	104 Gbps	56 Gbps
Switching Capacity with Stacking	256 Gbps	64 Gbps	N/A	208 Gbps	N/A
Uplink Configuration	1G	1G	1G	1G	1G
Weight	16 lbs	8 lbs	25 lbs	22 lbs	15 lbs
Width	17.5 inches	17.5 inches	17.5 inches	17.5 inches	17.5 inches
