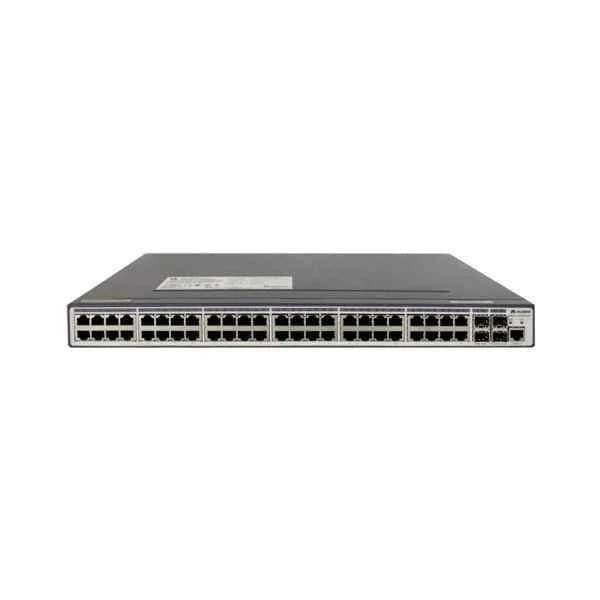

Overview Of S3700-52P-EI-DC

The Huawei S3700-52P-EI-DC is a cost-effective, enterprise-grade switch designed for medium to large-scale enterprise and campus networks. It offers 48 Gigabit Ethernet (GE) ports and 4 SFP uplinks, providing robust Layer 2/3 switching capabilities. With its DC power supply, this switch is optimized for high-performance environments, offering advanced security features and energy-efficient operation.

HUAWEI S3700-52P-EI-DC Features

Feature	Description
48 x GE Ports	High-speed Gigabit Ethernet ports designed for large enterprise and campus networks.
4 x SFP Uplinks	Uplink ports providing increased bandwidth and network scalability.
Advanced Layer 2/3 Switching	Supports advanced routing protocols like OSPF, BGP, and MPLS for optimized traffic management.
High Switching Capacity	Provides a switching capacity of 256 Gbps for fast and efficient data forwarding.
Energy-Efficient Design	Optimized for low power consumption, reducing operational costs in enterprise networks.
Stacking Support	Supports stacking for simplified management and scalability.
IPv6 Ready	Fully compatible with IPv6 for future-proof networking solutions.
Enhanced Security	Features ACLs, 802.1X, and DHCP Snooping for secure networking environments.
Modular Power Supply	Supports DC power supplies for continuous and reliable operation.
Advanced QoS	Provides Quality of Service (QoS) features for traffic prioritization and optimization.

Recommended Products for HUAWEI S3700-52P-EI-DC

Category	Part Number	Description
Router	Huawei AR2204-27GE	High-performance enterprise router with scalable networking capabilities.
Switch	Huawei S5735-L24P4X-A	24 GE ports and 4 10GE uplinks for enhanced networking performance.
Switch	Huawei S6720-54C-EI-48S-DC	54-port switch with high-performance Layer 3 routing and security features.
Power Supply	PWR-7201-AC	720W AC Power Supply providing reliable power management for high-density setups.
Power Supply	PWR-115W-AC	115W AC Power Supply suitable for smaller enterprise networks.

Specification Of S3700-52P-EI-DC

S3700-52P-EI-DC Datasheet

Specification	Details
Model	Huawei S3700-52P-EI-DC
Switching Capacity	256 Gbps
Forwarding Rate	96 Mpps
Ports	48 x GE, 4 x SFP uplinks
Power Supply	DC power supply
Dimensions (W x D x H)	442 mm x 220 mm x 43.6 mm
Weight	4.5 kg
Operating Temperature	0°C to 45°C
Storage Temperature	-40°C to 70°C
VLAN Support	Supports up to 4,096 VLANs
MAC Address Table	64K entries
Latency	Less than 3 µs
Packet Buffer	9 MB
Stacking Support	Supports stacking for enhanced scalability
QoS Features	8 queues per port, traffic shaping, and prioritization
IPv6 Support	Full IPv6 compatibility
Security Features	ACLs, 802.1X, DHCP Snooping, Dynamic ARP Inspection
Energy Efficiency	Optimized for low power consumption
Management	CLI, Web-based interface, SNMP, RMON
Certifications	CE, FCC, RoHS
Warranty	Limited Lifetime Warranty
Cooling System	Modular fan trays for enhanced cooling
